Name: WOMALA 31689690 Left Side Tail Lamp Assembly 31420428 for Volvo XC60 2018 to 2022
Brand: Guangzhou Womala International Trade Co., Ltd.
SKU: 31323035
Price: 117.38 USD
Availability: InStock

Home > products > XC60 Auto Parts >

WOMALA 31689690 Left Side Tail Lamp Assembly 31420428 for Volvo XC60 2018 to 2022

Place of Origin:

China

Brand Name:

WOMALA

Certification:

Model Number:

31323035

Request A Quote

WOMALA 31689690 Left Side Tail Lamp Assembly 31420428 for Volvo XC60 2018 to 2022

Product Details

Item Number:

31689690

Compatible Models:

For Volvo XC60

Item Name:

Left Side Tail Lamp Assembly

Car Make:

For Volvo

Package:

Neutral

Warantty:

18 Months

Position:

Left Rear

Payment & Shipping Terms

Minimum Order Quantity

10PCS

Price

$115.38-$120

Packaging Details

Nuetral

Delivery Time

5-8 Working Days

Payment Terms

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability

200PCS

WOMALA 31323035 for Volvo XC60 Right Rear Tail Light Assembly

Get Best Price

WOMALA Air Guide 8631652 for Volvo 8631649

Get Best Price

WOMALA 31294054 Lower Grille Mesh For Volvo XC60

Get Best Price

WOMALA 31451320 Rear Stabilizer Bar for Volvo XC60

Get Best Price

Contact Now

Product Description

WOMALA 31689690 Left Side Tail Lamp Assembly 31420428 for Volvo XC60 2018 to 2022

Product Overview

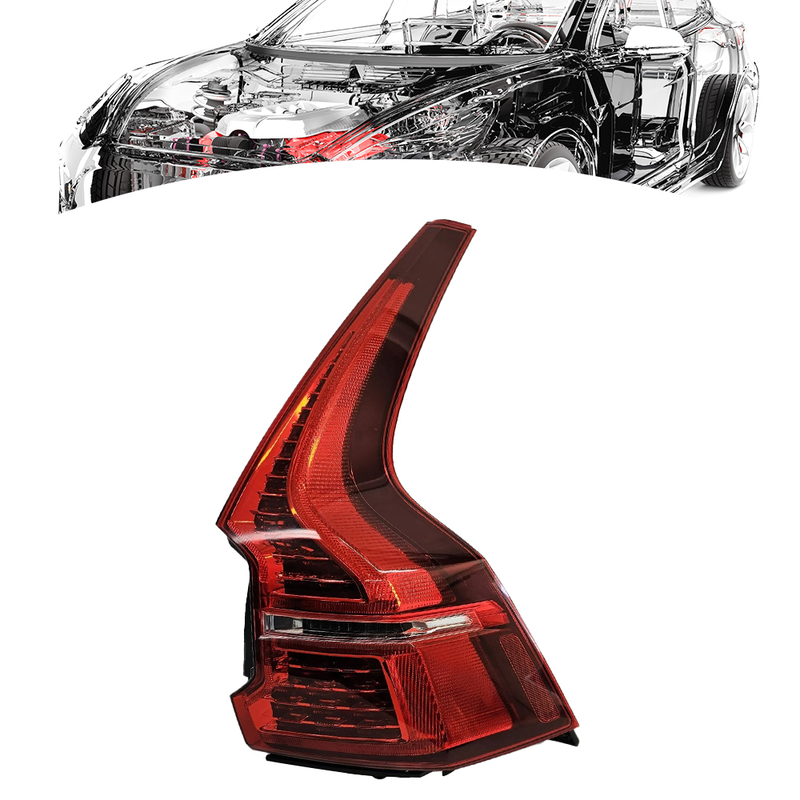

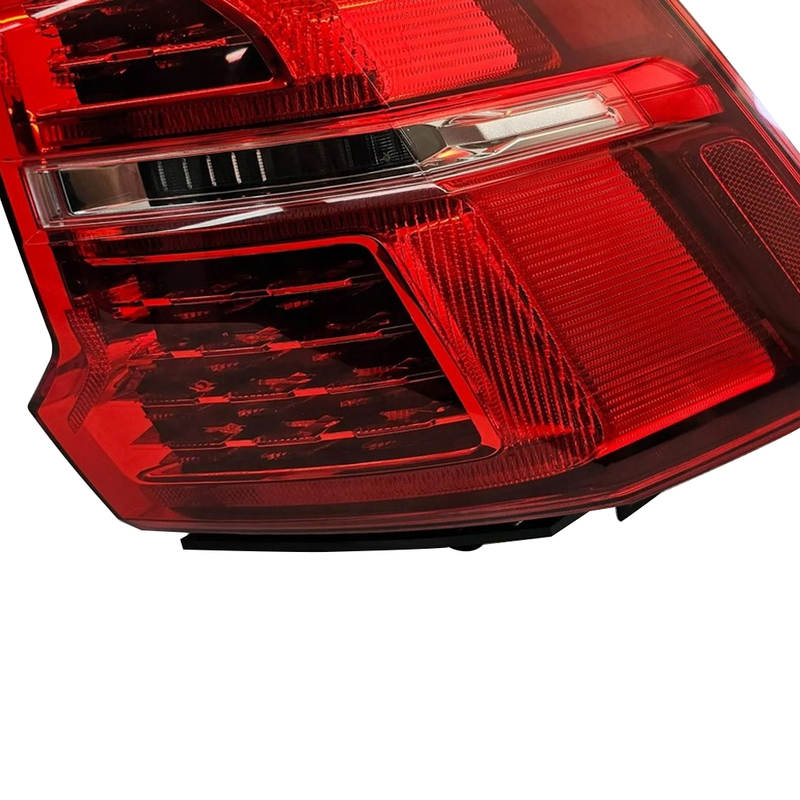

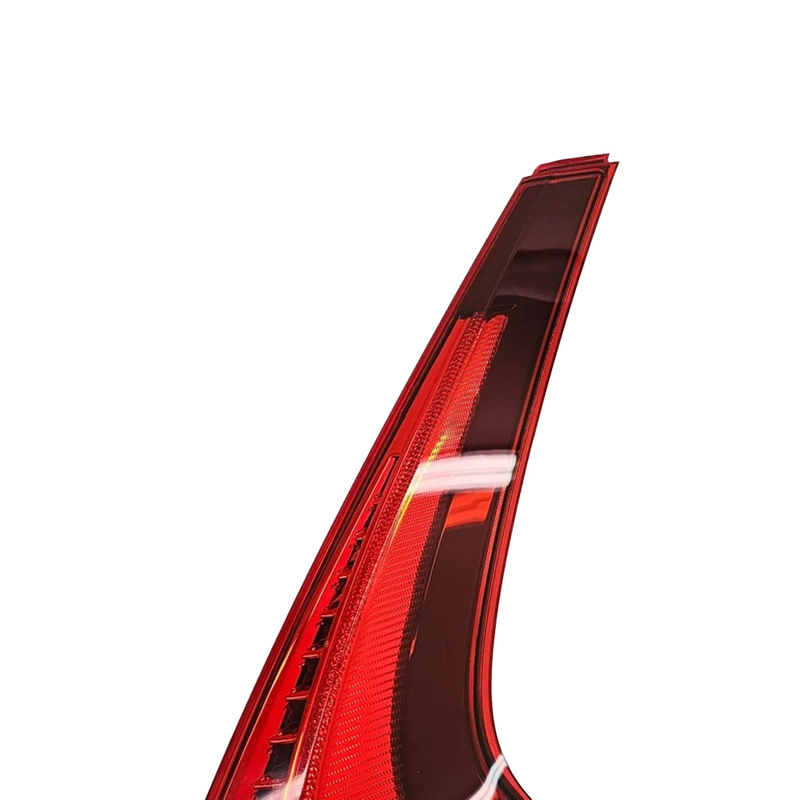

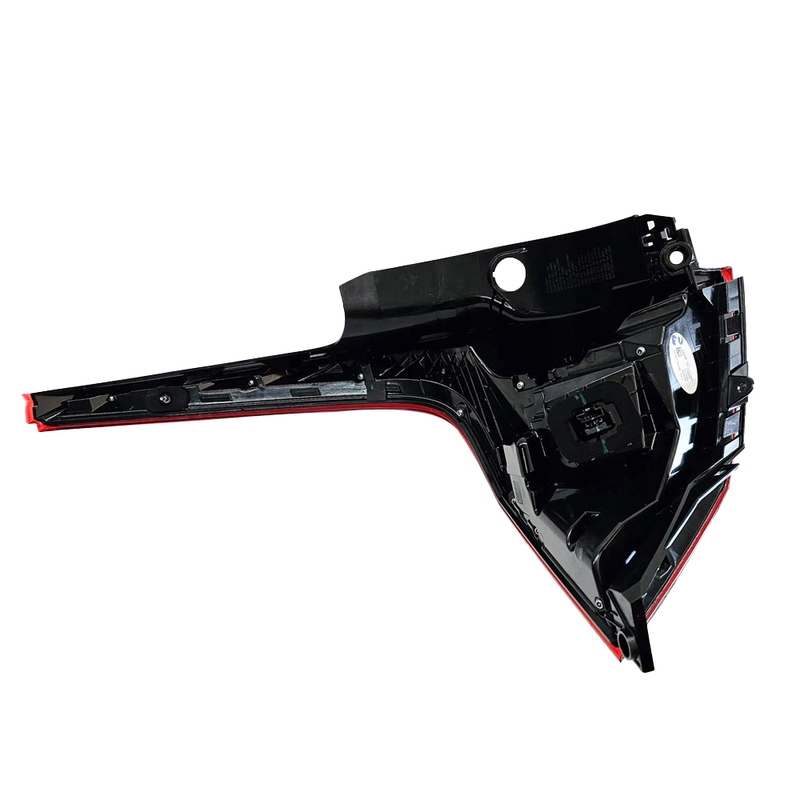

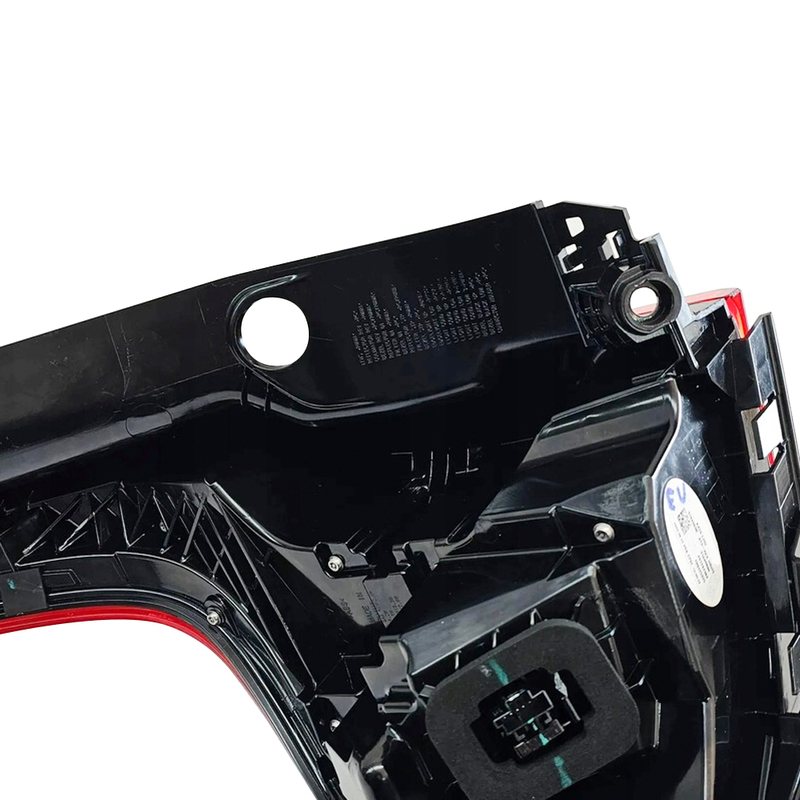

This left rear tail lamp assembly (compatible with part numbers 31420428 and 31689690) is designed specifically for Volvo XC60 models from 2018-2022. It integrates LED brake lights, turn signals, and reverse lights in a single OEM-quality unit. Constructed from UV-resistant polycarbonate for superior durability, it ensures precise fitment with factory mounting points and electrical connectors.

Key Features

Direct replacement with no modifications required
UV-stabilized polycarbonate housing (V-0 flame rated)
LED lighting technology for all functions
IP67 waterproof rating for all-weather performance
Precision-engineered for perfect fitment
18-month warranty included

Technical Specifications

Parameter	Specification
Part Numbers	31689690 / 31420428
Compatibility	Volvo XC60 (2018-2022)
Position	Left Rear
Light Functions	LED Brake Light, Turn Signal, Reverse Light
Housing Material	UV-Stabilized Polycarbonate (V-0 Flame Rated)
Electrical Rating	12V DC, IP67 Waterproof
Operating Temperature	-40°C to +85°C
Weight	1.25 kg ±0.05 kg

Compatibility

Brand	Model	Year
Volvo	XC60	2018-2024

Performance Specifications

Specification	Detail
Luminous Intensity	Brake light: ≥80 cd, Tail light: ≥4 cd
LED Lifespan	50,000 hours (L70 standard)
Operating Voltage Range	9-16V DC
Current Draw	0.8A (running), 1.5A (brake)
Ingress Protection	IP67 (submersible to 1m for 30 mins)
Vibration Resistance	15G acceleration (SAE J575)
Regulatory Compliance	ECE R7, FMVSS 108

Frequently Asked Questions

Question	Answer
Are both part numbers (31420428 and 31689690) identical in function?	Yes, they are 100% functionally identical. 31689690 is simply a later production version with identical specifications.
Does this unit require any coding/software update after installation?	No coding required, but a 12-minute power cycle (disconnect battery) is recommended to reset the LCM (Light Control Module).
What's the difference between this and right-side assembly?	The left assembly has mirrored lens optics and reversed connector pinout (Volvo P/N 31420429 for right side).
What tools are needed for installation?	Only requires: T25 Torx bit, trim removal tool, and 10mm socket.

Why Choose Our Product?

5 branches and partnerships with 50+ factories including 5 joint-stock enterprises
15,000㎡ production base with 10,000+ SKU inventory for timely delivery
13 years of experience in Volvo parts industry for accurate product matching
10 strict quality inspection processes including noise detection and durability tests
Supplier to international brands like Bosch and Hella
