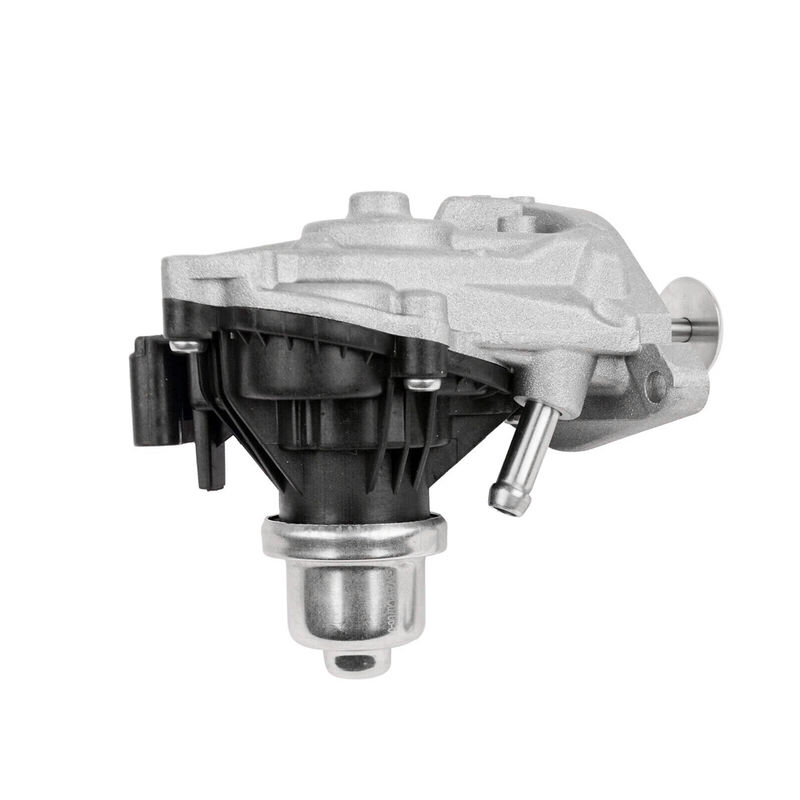

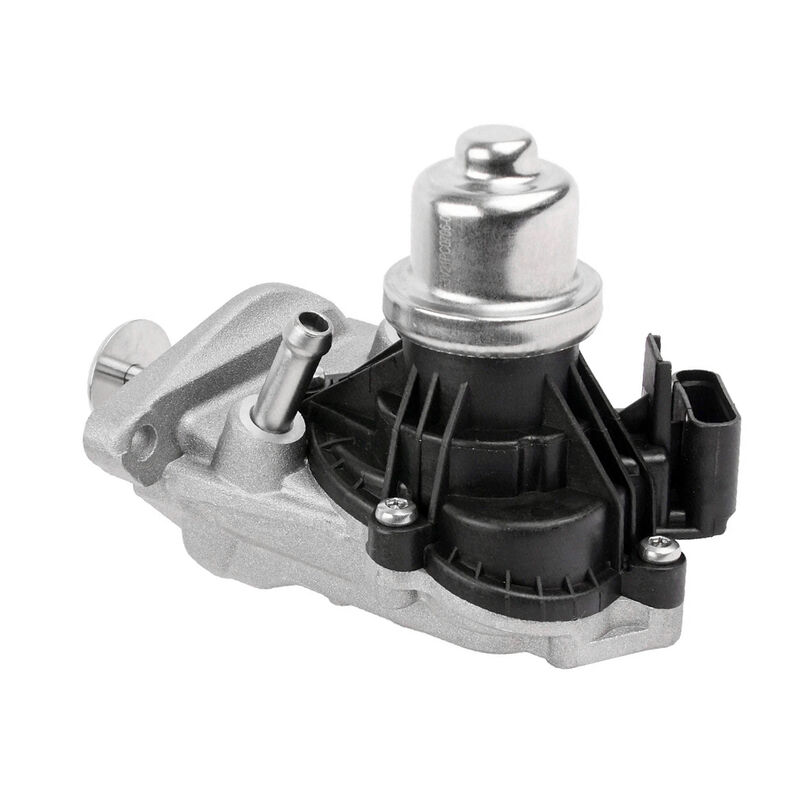

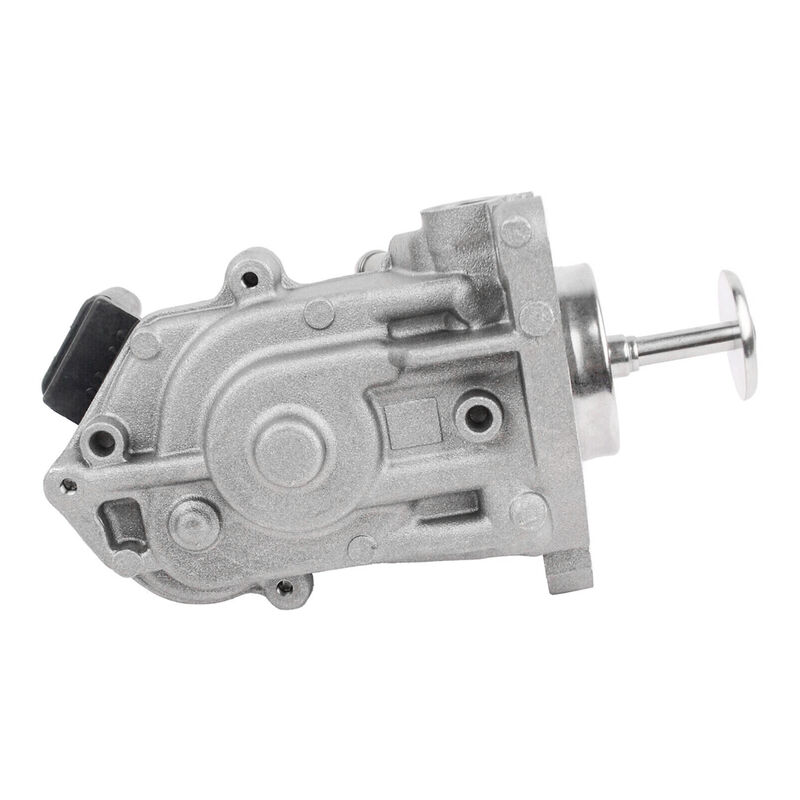

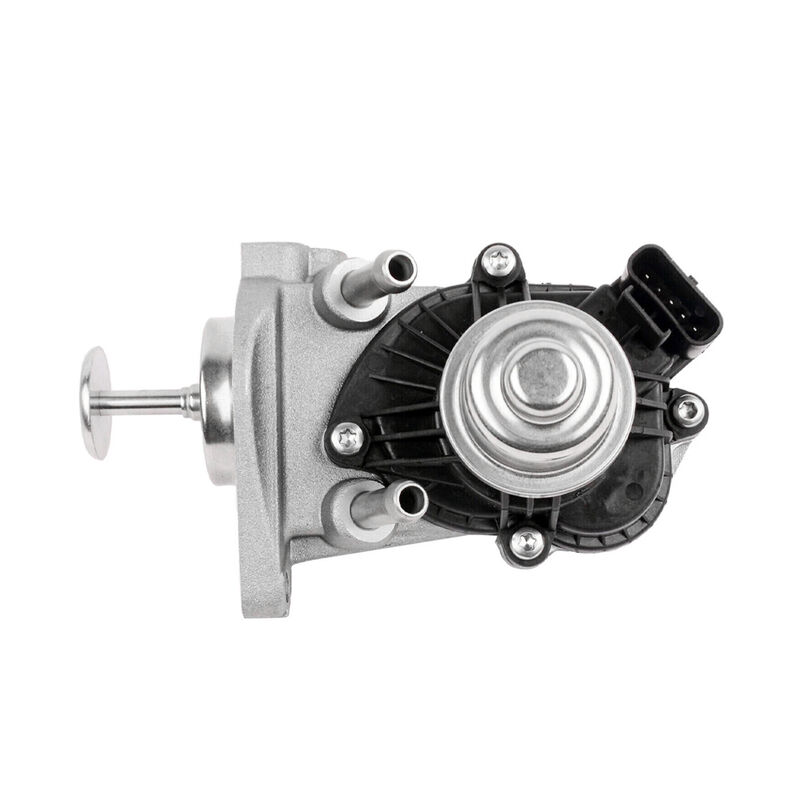

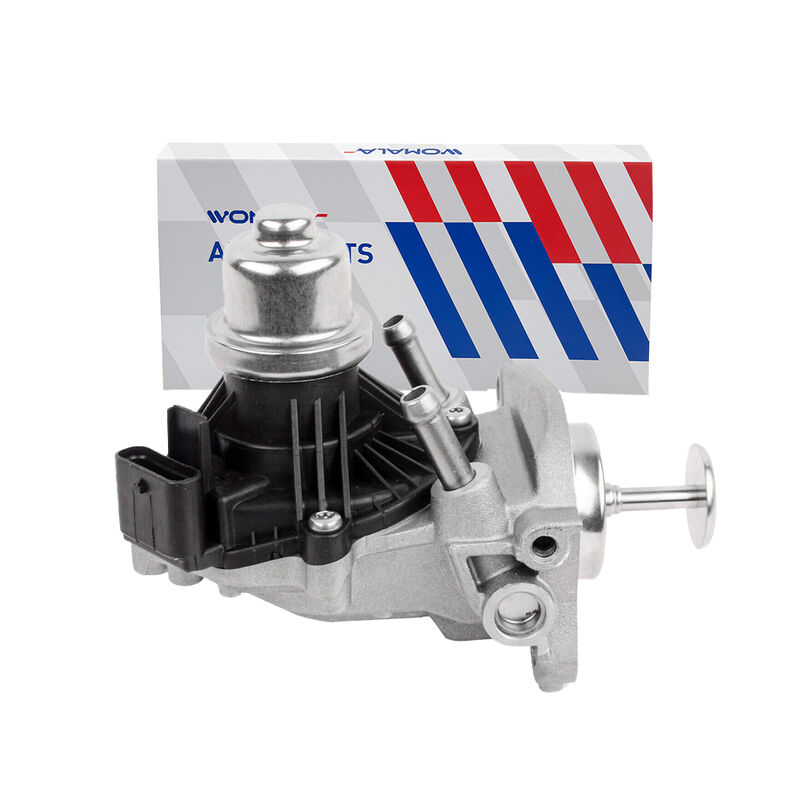

Womala Auto Parts for Bmw EGR Valve 11718513132 1/2/3/4/5 Series

Product Details: EGR Valve (Exhaust Gas Recirculation Valve) - 11718513132

This Exhaust Gas Recirculation (EGR) valve is a precision-engineered emissions control component designed to reduce nitrogen oxide (NOx) emissions by recirculating a portion of exhaust gases back into the engine intake manifold . It ensures optimal engine performance, fuel efficiency, and compliance with emissions standards. This electric EGR valve features a 5-pin angular connector and is constructed from durable metal materials for long-lasting performance . The valve is specifically designed for diesel engines and is often supplied with gaskets/seals .

Core Function: The EGR valve controls the flow of exhaust gases to the intake manifold and is responsible for helping control fuel consumption and reduce emissions under certain operating conditions . By mixing exhaust with the air-fuel charge, it lowers combustion temperatures, reducing the formation of harmful nitrogen oxides (NOx) and improving efficiency . EGR valves are especially important on smaller displacement GDI engines by reducing pumping losses .

Failure Symptoms:

• Check Engine Light with related fault codes (e.g., P0401 "EGR flow insufficient" or P0402 "excessive EGR flow")
• Rough idle or stalling, caused by the valve sticking open and letting in too much exhaust
• Poor performance or hesitation, often from a clogged or stuck-closed valve restricting proper gas flow
• Increased emissions and fuel consumption
• Engine knock (pre-ignition) from high combustion chamber temperatures due to a stuck-closed valve, which can severely damage an engine

Technical Specifications:

• Part Number: 11718513132
• OE Number: 11 71 8 513 132
• Direct Replacement: 11719886715 (discontinued)
• Part Name: Exhaust Gas Recirculation Valve
• Operating Mode: Electric
• Connector Shape: Angular, 5-pin connector
• Number of Pins: 5
• Material: Metal construction
• Weight: 0.604 - 0.702 kg

Important Installation Note:

The electromotive EGR valve may only be installed in an energised state otherwise it may become damaged during installation . When de-energised, the transmission gearing in the EGR valve is in its end position. If force is applied across the valve head during installation, the transmission gearing could be damaged .

Installation Procedure:

1. Before mounting, connect the plug-in connection of the electrical connection to the housing plug on the EGR valve
2. Connect a suitable engine tester to the vehicle
3. Choose the "Replace EGR valve" service function - the EGR valve will then be supplied with power
4. The valve head will be drawn into the valve chamber slightly
5. Only now may the EGR valve be installed into the EGR cooler module

Compatible Vehicle Models

Replacement Part Numbers

Note: This EGR valve is compatible with various diesel models equipped with N47 and B47 diesel engines, as well as MINI and Toyota applications . The original part 11719886715 has been discontinued and is directly replaced by 11718513132 . This part may be supplied with or without gaskets/seals - check product specifications before ordering . A replacement gasket (part #11717100427 or #11718579364 depending on cooler manufacturer) should be purchased separately if not included . To ensure a correct fitment, we strongly recommend verifying compatibility using your vehicle's VIN number, specific engine code (B47/N47), and EU emissions standard (Euro 5/6) before purchasing . Professional installation with the proper energizing procedure is highly recommended.
