Womala Electric Fan C2D42525 for for Jaguar XJ XF

Product Overview

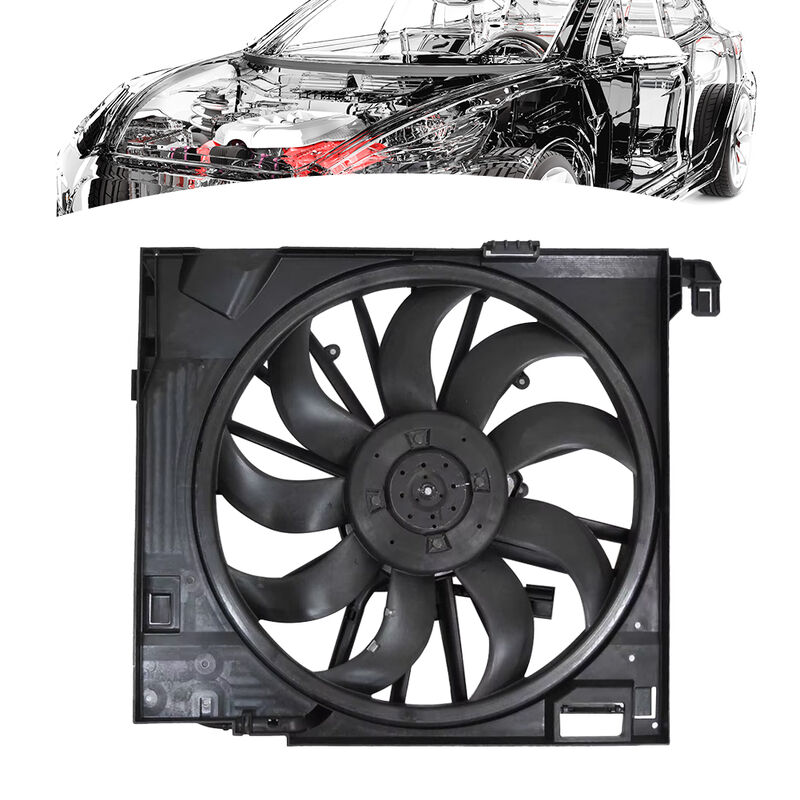

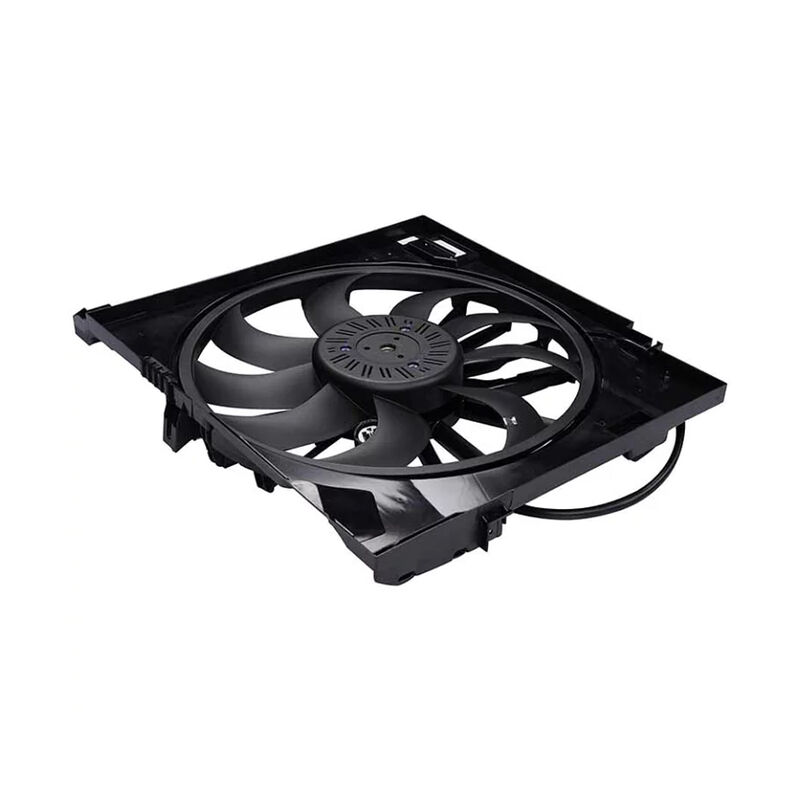

The Cooling Fan Assembly C2D42525 is a Genuine OE-grade engine cooling component engineered for select for Jaguar vehicles. This complete assembly includes the fan blade, motor, and shroud, and is responsible for drawing air through the radiator to maintain optimal engine operating temperature, particularly in low-speed or stationary conditions when natural airflow is insufficient. C2D42525 has been superseded by C2D52869, which is the current replacement part.

Key Features

• Complete assembly – includes fan blade, motor, and shroud

• OE-grade quality – genuine Jaguar OEM specification

• 400W motor – 12V with 4-pin connector, 494mm fan diameter

• 6-blade design – optimised for efficient airflow

• Direct-fit replacement – matches factory mounting points and electrical connections

OE Cross-Reference

Additional references: CW93-8C607-A, CW938C607A

Vehicle Fitment

Extended applications (verify with VIN):

• XF Sportbrake (X260) – 2.0L petrol/diesel

• XJ (X351) – 2.0L petrol/diesel variants

⚠️ Important: This fan assembly is specifically for 2.0L petrol and diesel variants with the 400W fan motor. Different part numbers may be required for 3.0L/5.0L V6/V8 or supercharged applications. Fitment varies by model year, production date, and VIN range – verify before ordering.

Signs of Failure

• Engine overheating – temperature gauge reading above normal, especially in traffic or at idle

• Coolant loss – coolant expelled from the overflow due to fan not activating

• Fan not running – no audible fan operation when engine is hot

• Erratic temperature control – engine runs hot in traffic but cools at speed

💡 The cooling fan assembly is a common point of failure on these models. Before replacing the fan, it is recommended to test the system using diagnostic equipment to rule out temperature sensor failure or PWM control issues.

Critical – Verify Your VIN Before Ordering

Cooling fan assemblies are VIN‑, engine‑, and model‑year‑specific. Variations in engine type (2.0L vs. 3.0L vs. 5.0L), supercharger configuration, and VIN range affect fitment. Provide your VIN – our team confirms exact compatibility before dispatch. We cannot accept returns for misordered parts without VIN verification.

💡 Installation Tip: Professional installation recommended. The fan assembly includes the shroud and is a complete unit replacement. Before installation, check fuses, relays, and temperature sensors to confirm the fan itself is the root cause.

Technical Specifications

Why Choose Us

Contact us for bulk orders or VIN‑checked quotes.

Specifications subject to change; images for reference only.Aftermarket replacement – not affiliated with Jaguar Land Rover.
