Womala Transmission Oil Pan LR007474 for Land Rover Discovery 3 Discovery 4

Product Overview

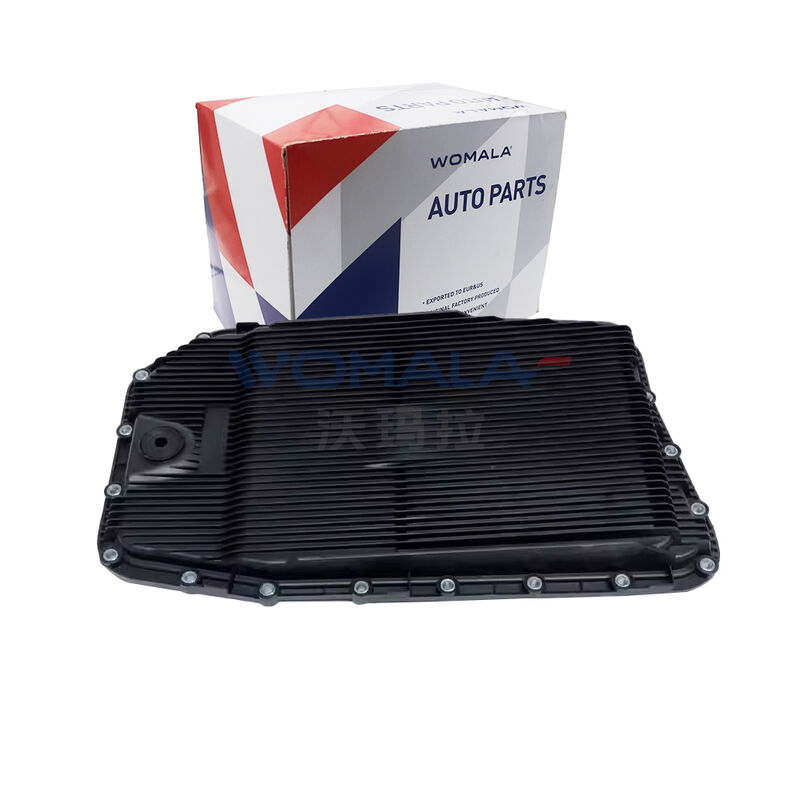

The Transmission Oil Pan LR007474 is a Genuine OE-grade component engineered for the ZF 6HP26 / 6HP28 six-speed automatic transmission found in a wide range of for Land Rover and for Jaguar vehicles . This composite sump forms a critical part of the transmission's lubrication system, storing the automatic transmission fluid (ATF) and incorporating an integrated filter and drain plug . It also serves as a heat exchanger surface to help cool the transmission fluid . LR007474 has been superseded by TED500010, which is the current replacement part for many applications .

Key Features

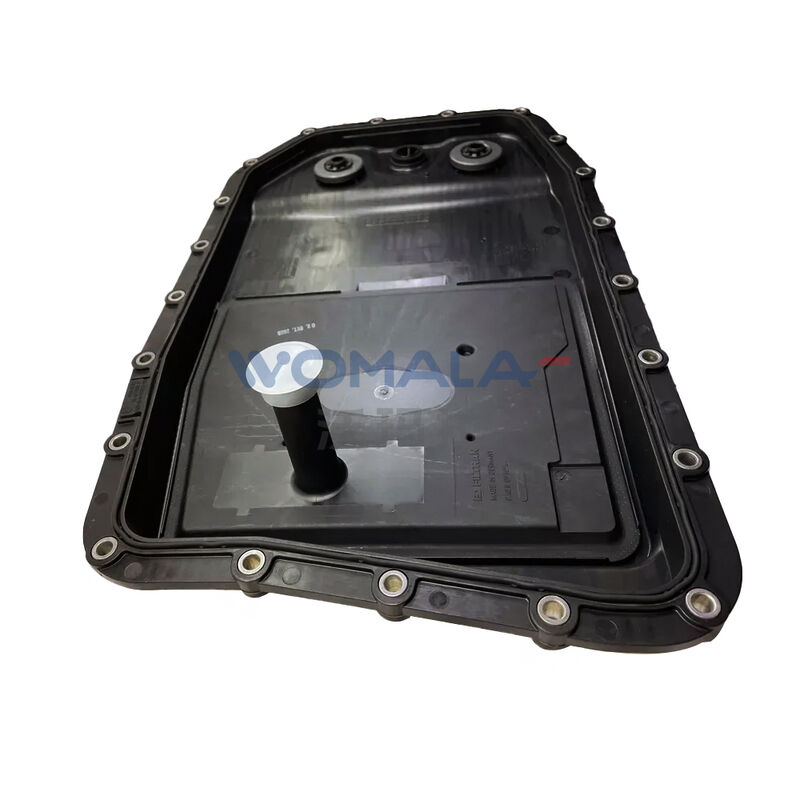

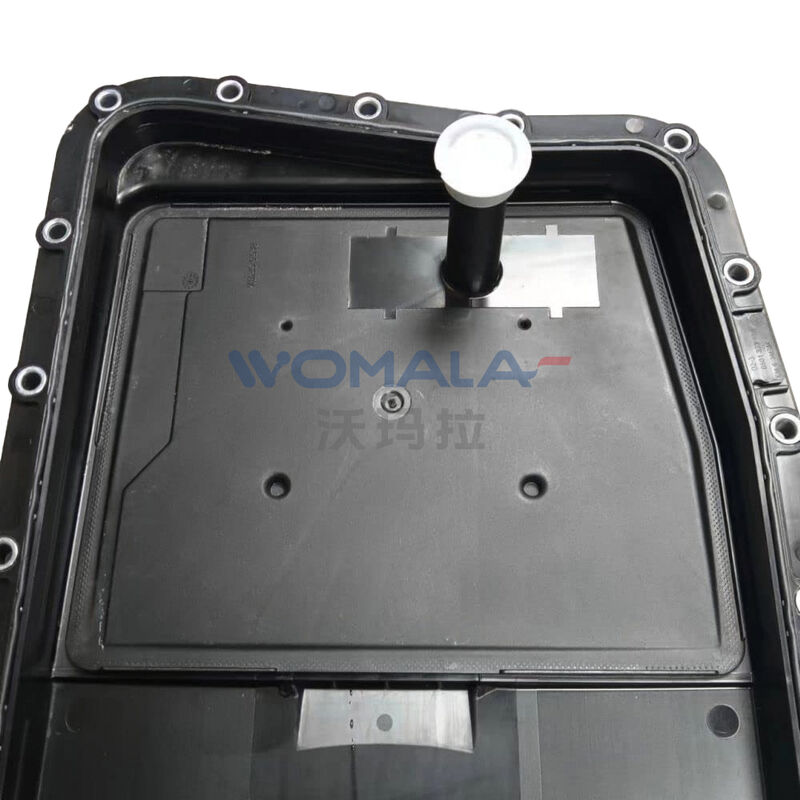

• Complete sump assembly – includes integrated filter and drain plug

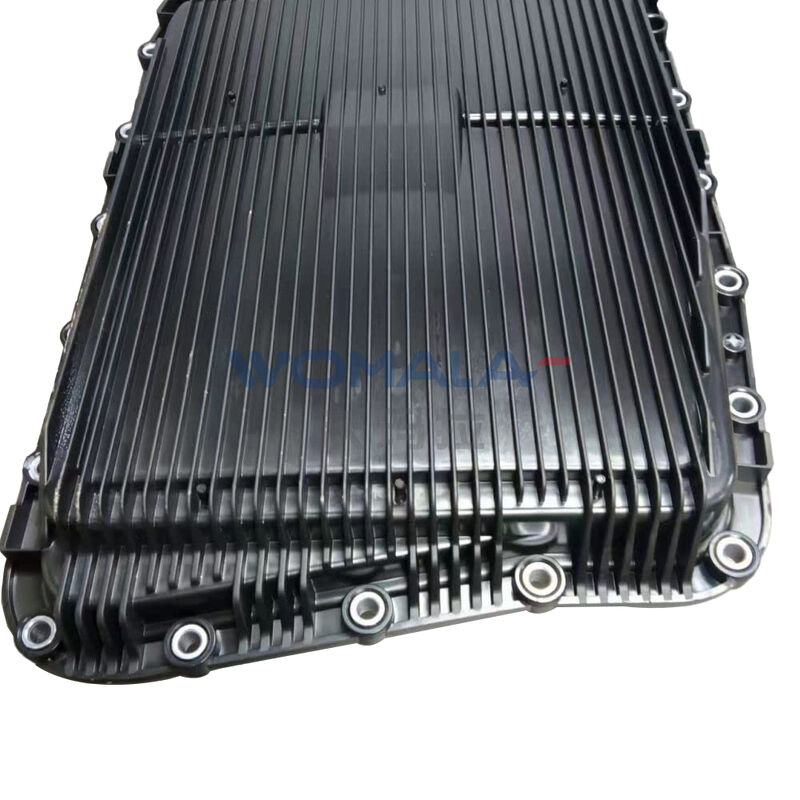

• Composite construction – lightweight, durable sump with OEM-spec design

• OE-grade quality – genuine Land Rover specification; aftermarket equivalents available

• Direct-fit replacement – matches factory mounting points and bolt pattern

• For ZF 6HP26 / 6HP28 transmissions – widely used across Land Rover and Jaguar models

OE Cross-Reference

ZF reference: 0501 211 238

Vehicle Fitment

Extended applications (verify with VIN):

• Range Rover Sport L320 (2005–2013) – all 6-speed auto variants

• Discovery 4 / LR4 – 6-speed auto variants

⚠️ Important: This sump is for the ZF 6-speed automatic transmission (6HP26/6HP28) – not for 8-speed or manual transmissions. Fitment varies by model year, transmission type, and VIN range – verify before ordering.

Signs of Failure

• Transmission fluid leaks – visible fluid under the vehicle from the sump area

• Transmission warning light – dashboard alert illuminated

• Shifting issues – delayed or harsh gear changes

• ATF contamination – fluid appears dark, burnt, or contains debris

• Strainer blockage – restrictors filter and inhibit pressure and flow

💡 The integrated filter in the sump can become blocked over time, restricting fluid flow and causing transmission issues. Replacing the sump and filter at recommended intervals is essential for transmission longevity.

Critical – Verify Your VIN Before Ordering

Transmission sumps are VIN‑, transmission‑, and model‑year‑specific. Variations in transmission type (ZF 6HP26 vs. 6HP28), chassis configuration, and VIN range affect fitment. Provide your VIN – our team confirms exact compatibility before dispatch. We cannot accept returns for misordered parts without VIN verification.

💡 Installation Tip: Professional installation recommended. When replacing the sump, use new mounting bolts (M8 x 38mm) and torque to manufacturer specifications. Replace with the correct ZF LifeguardFluid 6 or equivalent ATF (approximately 9.5L required). Ensure the transmission is at the correct temperature for level checking.

Technical Specifications

Why Choose Us

Contact us for bulk orders or VIN‑checked quotes.

Specifications subject to change; images for reference only.Aftermarket replacement – not affiliated with Jaguar Land Rover.
