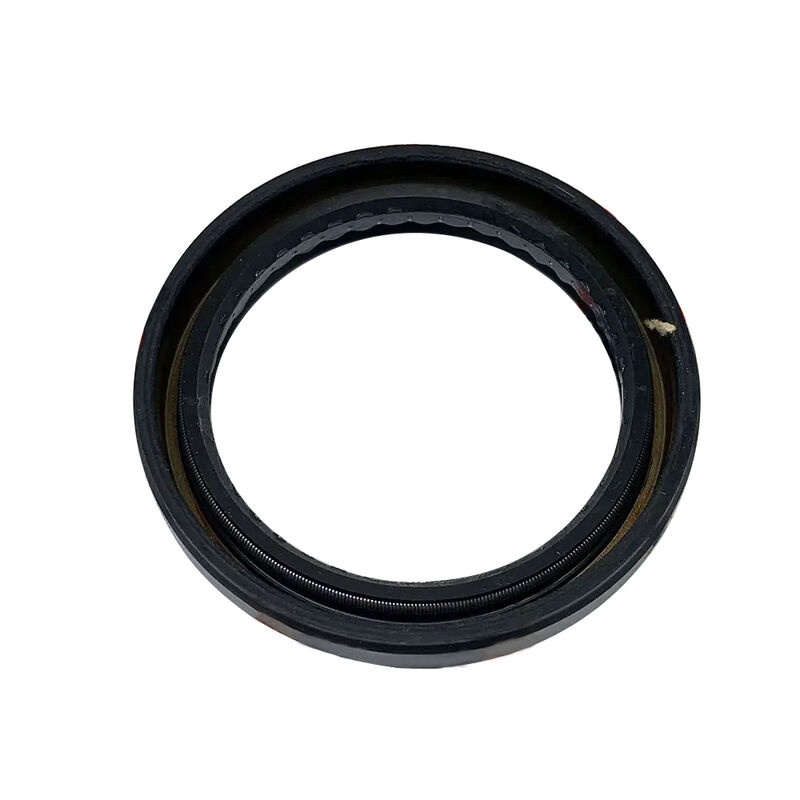

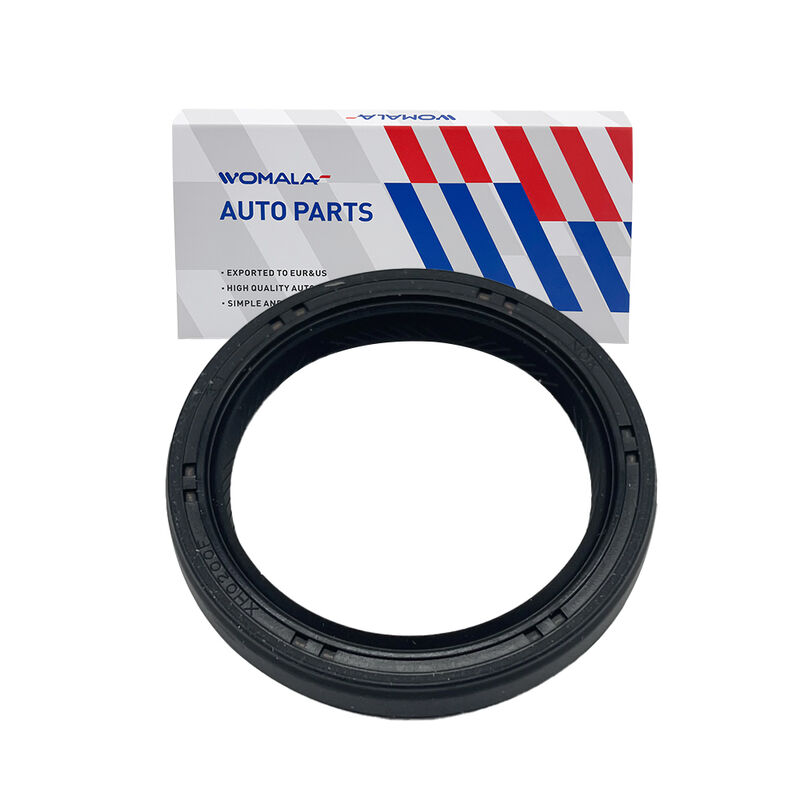

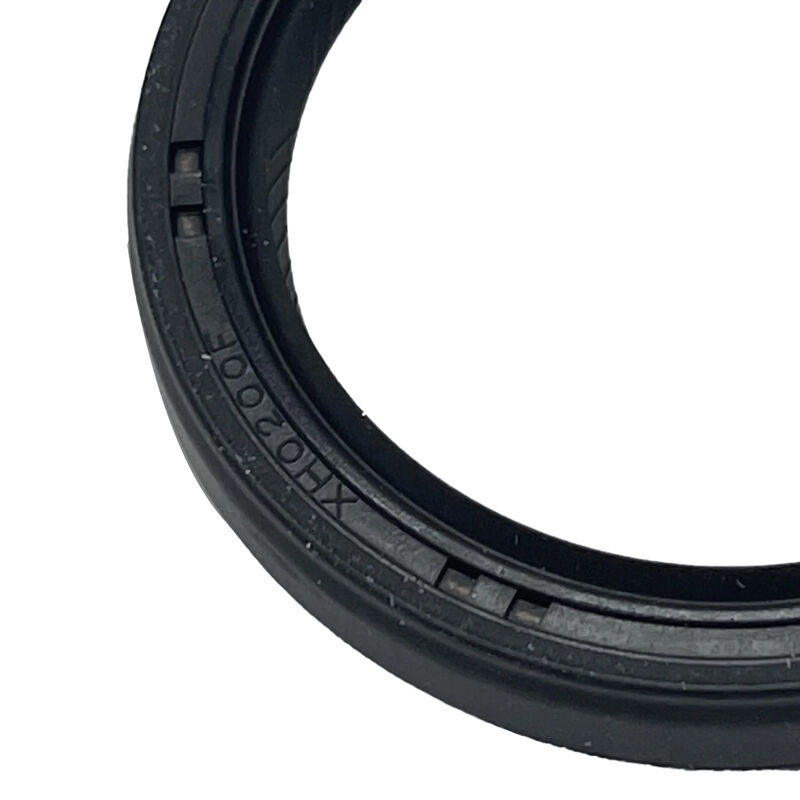

Womala Oil Seal OE LR002906 for Land Rover Freelander 2

Product Overview

The Axle Shaft Seal LR002906 is an OE-grade sealing component engineered for the for Land Rover Freelander 2 / LR2 (L359) and Range Rover Evoque (L538) equipped with the AWF21 6-speed automatic transmission. This seal is fitted at the transfer case output shaft, preventing transmission fluid from leaking out while keeping dust and moisture from entering the drivetrain. Over time the seal can wear, harden, or become damaged, leading to fluid loss and potential drivetrain issues if not replaced.

Key Features

• Transmission output shaft seal – prevents transmission fluid leakage at the output shaft to propshaft connection

• OE-grade quality – available from Corteco, Febi Bilstein, and other OE-quality suppliers

• Direct-fit replacement – precise factory dimensions: 34.7mm ID × 45.3mm OD × 7mm thickness

• For AWF21 6-speed automatic transmission – designed for the automatic transmission output shaft on AWD models

OE Cross-Reference

💡 Note: LR002906G is an alternative reference for the same seal.

Technical Specifications

Vehicle Fitment

Engine compatibility (verify with VIN):

• 2.0L Si4 Petrol

• 2.2L TD4 / SD4 Diesel

• 3.2L L6 Petrol

⚠️ Important: This seal is for vehicles equipped with the AWF21 6-speed automatic transmission. When replacing the transfer case splined sleeve, it is recommended to renew this outer seal at the same time to keep the system leak-free.

Signs of Failure

• Visible transmission fluid leaks – oil residue near the propshaft or under the vehicle

• Burning smell or smoke – leaked fluid contacting hot exhaust components

• Drivetrain noise or vibration – due to insufficient lubrication

💡 This seal is a critical component for preventing transmission fluid loss. If leaks are noticed, replacement should be carried out promptly to avoid further drivetrain damage.

Critical – Verify Your VIN Before Ordering

Seals are transmission- and model-specific. Provide your VIN – our team confirms exact compatibility before dispatch. We cannot accept returns for misordered parts without VIN verification.

💡 Installation Tip: Professional installation recommended. When replacing the seal, inspect the transfer case splined sleeve for wear – if worn, it is recommended to replace it at the same time.

Why Choose Us

Contact us for bulk orders or VIN‑checked quotes.

Specifications subject to change; images for reference only.Aftermarket replacement – not affiliated with Jaguar Land Rover.
