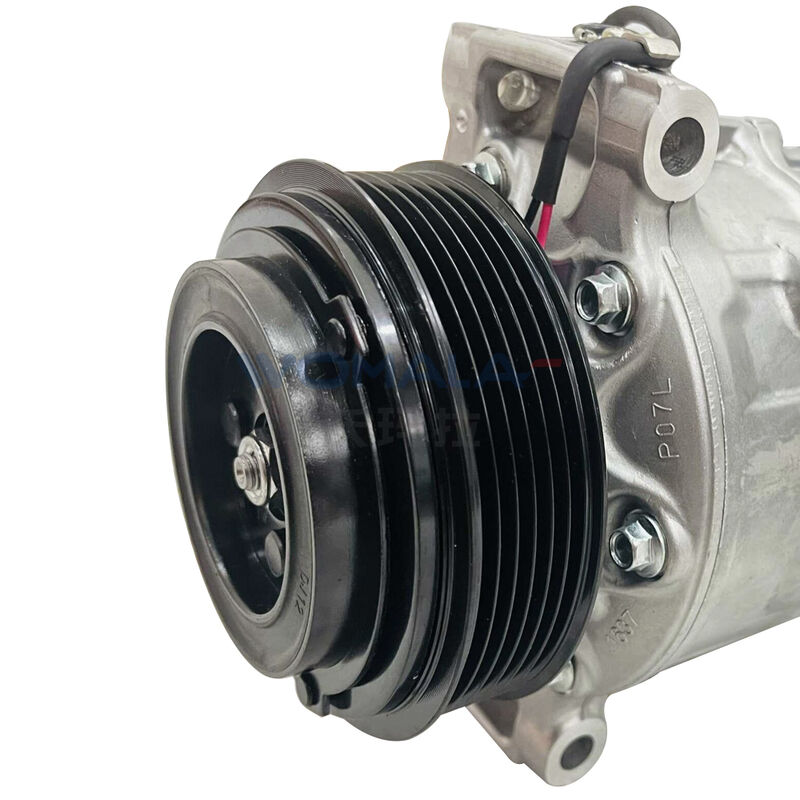

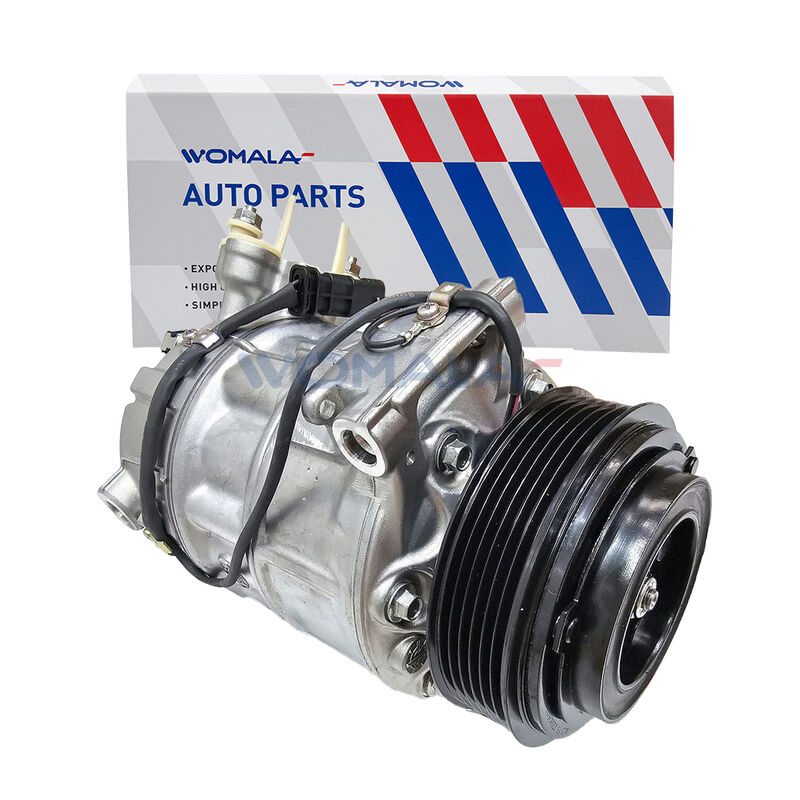

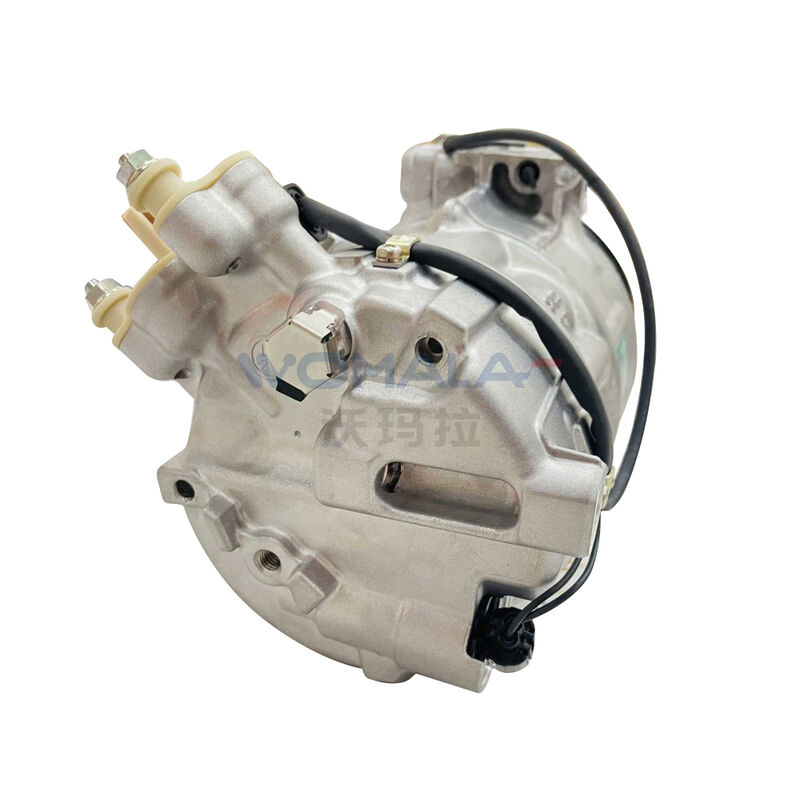

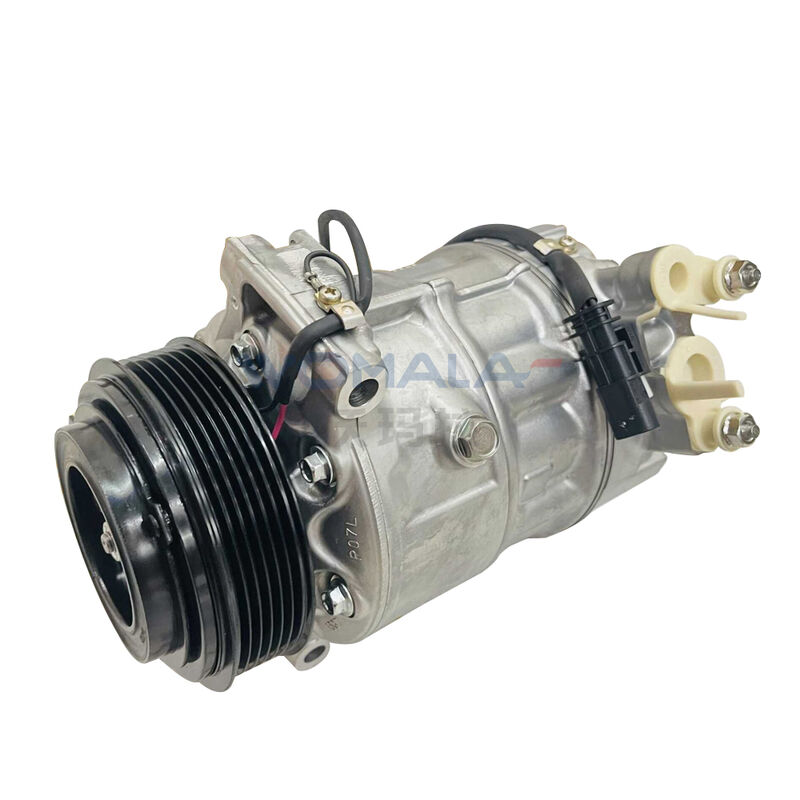

Womala Air Conditioner Compressor LR057692 for Land Rover Range Rover Sport

Product Overview

The A/C Compressor LR057692 (current replacement LR112585) is an OE-grade air conditioning compressor engineered for a wide range of for Land Rover vehicles. This Sanden PXC16 variable-displacement compressor is the heart of the air conditioning system, responsible for compressing refrigerant gas and circulating it through the system to absorb heat from the passenger compartment. LR112585 is the current replacement part, superseding LR057692 and multiple earlier numbers.

⚠️ Important: This compressor is available in R134a and R1234yf refrigerant configurations. Confirm your vehicle‘s refrigerant type before ordering — using the wrong compressor with the incorrect oil type will cause system failure.

Key Features

• Sanden PXC16 compressor — OE-quality variable displacement design with 6-groove serpentine pulley

• Complete assembly with clutch — ready for installation

• Prefilled with PAG 46 oil — correct oil for R1234yf systems (PAG 46 YF)

• OE-grade quality — available as Genuine Land Rover, Nissens, NRF, and other quality alternatives

• Direct-fit replacement — matches factory mounting points and electrical connections

OE Cross-Reference

💡 Supersession Note: LR112585 is the current replacement part. All listed numbers refer to the same Sanden PXC16 compressor for the applications below.

Technical Specifications

Vehicle Fitment

Engine details (verify with VIN): 2.0L GTDI Petrol · 3.0L V6 SC Petrol · 5.0L V8 Petrol (NA & SC) · 2.0L Diesel · 3.0L V6 Diesel · 4.4L V8 Diesel.

⚠️ Important: Fitment varies by refrigerant type (R134a vs. R1234yf), model year, and production date. Confirm your refrigerant type before ordering — R1234yf systems require PAG 46 YF oil, not standard PAG 46.

Signs of Failure

• No A/C clutch engagement — compressor does not turn on when A/C is activated

• Warm air from vents — A/C system not cooling the cabin

• Grinding or whining noise — from the engine when A/C is turned on

• Intermittent cooling — A/C works sometimes but not others

• Variable displacement solenoid failure — compressor not adjusting output correctly

💡 The A/C compressor provides the system pressure necessary to move refrigerant throughout the A/C system. Without adequate system pressure, the refrigerant will not adequately cool the air in your vehicle‘s cabin.

Critical – Verify Your VIN Before Ordering

A/C compressors are refrigerant-specific (R134a vs. R1234yf). Confirm your vehicle’s refrigerant type and VIN before ordering. Provide your VIN – our team confirms exact compatibility before dispatch. We cannot accept returns for misordered parts without VIN verification.

💡 Installation Tip: Professional installation recommended — A/C compressor replacement is not a DIY project. The system must be depressurized and evacuated before removal, and recharged with the correct refrigerant after installation. It is highly recommended to replace the A/C receiver drier and expansion valve whenever the compressor is replaced, as a failed compressor often distributes small particulates throughout the system that can clog these components. A core exchange surcharge may apply — return your original compressor to recover the deposit.

Why Choose Us

Contact us for bulk orders or VIN‑checked quotes.

Specifications subject to change; images for reference only.Aftermarket replacement – not affiliated with Jaguar Land Rover.
