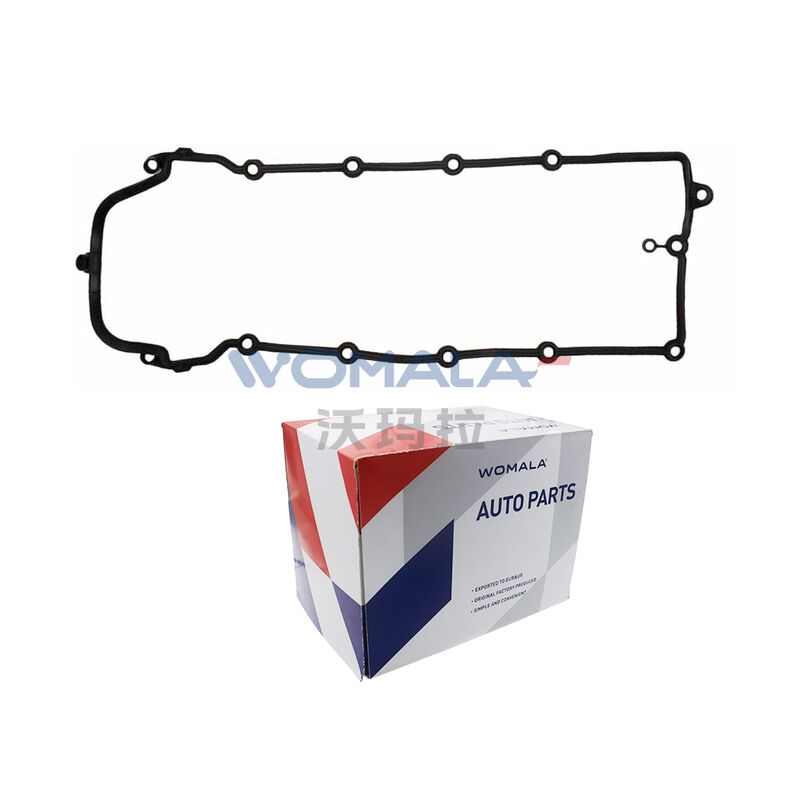

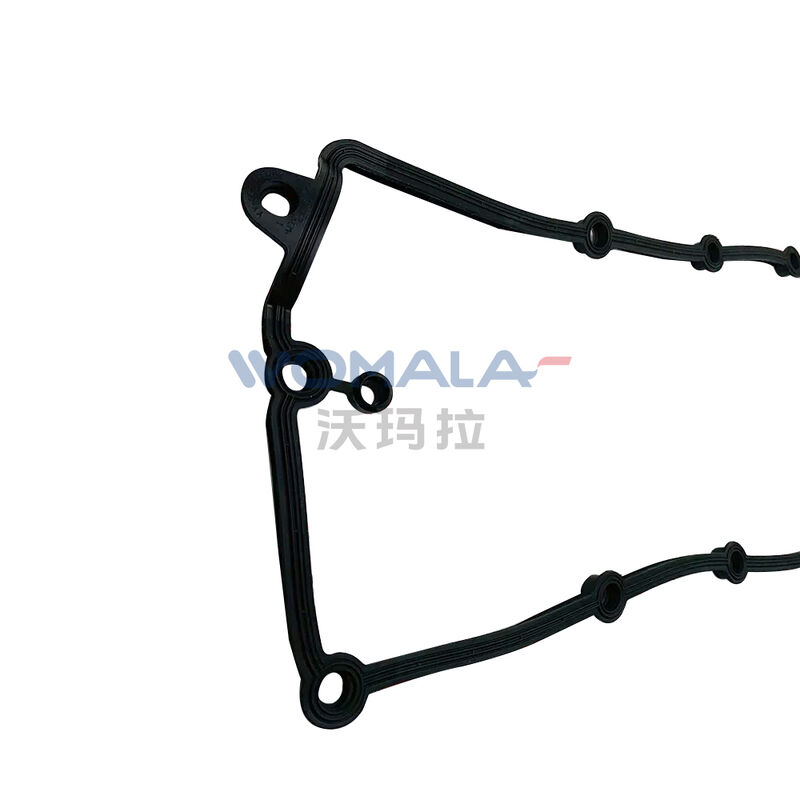

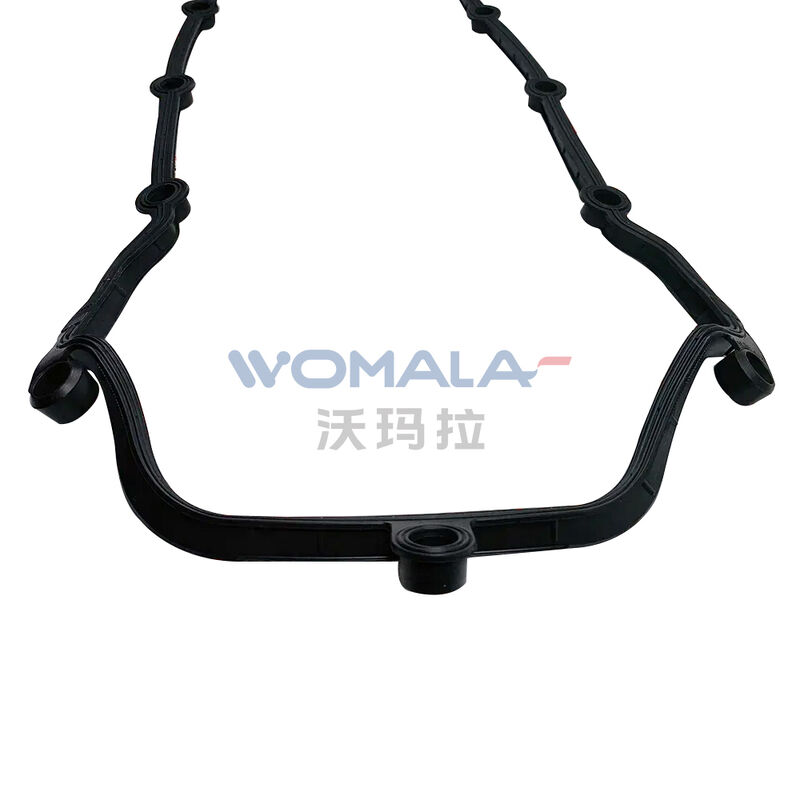

Womala Valve Cover Gasket LR010882 for Land Rover

Product Overview

The Valve Cover Gasket LR010882 (Jaguar equivalent C2D3524) is a Genuine OE-grade sealing component engineered for the right-hand cylinder bank of the 5.0L V8 petrol engine (AJ133) in select for Land Rover and for Jaguar vehicles. Also known as a camshaft cover gasket, it seals the valve cover to the cylinder head, preventing engine oil and oil vapour from leaking at the joint .C2D3524 is the Jaguar equivalent part number for the same gasket .

⚠️ Important: This is the right-hand (RH) valve cover gasket for the 5.0L V8 petrol engine only. It is not compatible with diesel, V6, or 2.0L variants. The left-hand counterpart is a separate part number (LR010789) .

Key Features

• Right-hand cylinder bank position – seals the right-side valve cover to the cylinder head

• Molded rubber construction – durable elastomer resistant to heat and oil

• OE-grade quality – available as Genuine Land Rover, Genuine Jaguar, and quality aftermarket alternatives (Eurospare, Britpart, Mahle)

• Direct-fit replacement – matches factory valve cover channel; no modifications required

• Requires (4) LR011220 spark plug hole gaskets – sold separately

OE Cross-Reference

💡 Note: LR010882 and C2D3524 refer to the same right-side valve cover gasket. Both part numbers are interchangeable for the applications listed below .

Technical Specifications

Land Rover Applications

Jaguar Applications (C2D3524)

⚠️ Important: This gasket is confirmed for the 5.0L V8 petrol engine (AJ133) — both naturally aspirated and supercharged variants. Confirm your engine type and VIN before ordering.

Signs of Failure

• Oil leaks – visible oil seepage running down the cylinder head from the valve cover

• Burning oil smell – oil dripping onto hot exhaust components

• Oil in spark plug wells – visible oil around the spark plugs when ignition coils are removed

• Check engine light or rough running – severe gasket failure causing air intake leaks

• Hardened or brittle gasket – age-related failure of the rubber material

💡 As a rubber valve cover gasket ages, it becomes hard and brittle, eventually allowing oil to leak at the valve cover and cylinder head junction. The valve cover gasket and spark plug tube seals are typically replaced together if either fails .

Critical – Verify Your VIN Before Ordering

Valve cover gaskets are VIN-, engine-, and position-specific. This is the right-hand gasket — the left-hand counterpart is LR010789 . Provide your VIN – our team confirms exact compatibility before dispatch. We cannot accept returns for misordered parts without VIN verification.

💡 Installation Tip: Professional installation recommended. Requires (4) LR011220 spark plug hole gaskets — order separately if not included . Clean the valve cover and cylinder head mating surfaces thoroughly before installation. Tighten bolts to 10 Nm — do not over-tighten, as excessive torque can crush the gasket and cause leaks. Apply a bead of STC 5050 sealant where specified. This gasket is often replaced as part of a complete valve cover service.

Why Choose Us

Contact us for bulk orders or VIN‑checked quotes.

Specifications subject to change; images for reference only.Aftermarket replacement – not affiliated with Jaguar Land Rover.
