Womala Air Conditioner Compressor LR015151 for Land Rover Discovery

Product Overview

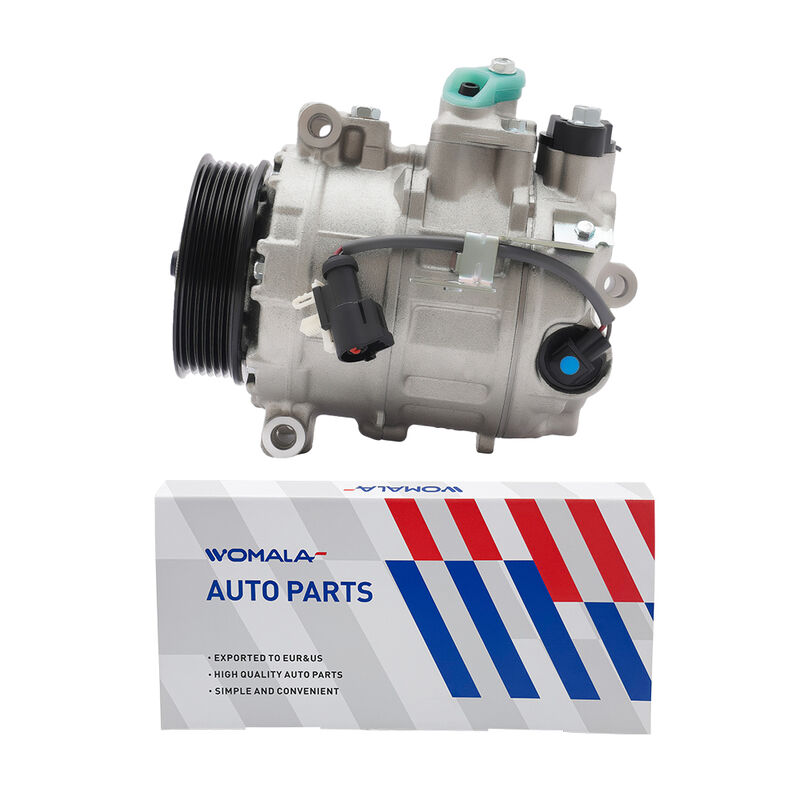

The A/C Compressor LR015151 is an OE-grade air conditioning compressor engineered for the 4.0L Cologne V6 petrol engine in select for Land Rover vehicles. This belt-driven Denso 7SEU17C compressor is the heart of the air conditioning system, raising refrigerant pressure and circulating it through the condenser, expansion valve, and evaporator to cool the cabin.

LR015151 is the current replacement part, superseding LR019134. JPB500280 and JPB500091 are interchangeable OE references for the same compressor.

⚠️ Important: This compressor is specifically for the 4.0L Cologne V6 petrol engine in Discovery 3 and Discovery 4. It is not compatible with 4.4L V8 petrol, 2.7L diesel, or other engine variants.

Key Features

• Denso 7SEU17C compressor — OE-quality variable displacement design with 6-groove serpentine pulley (100mm)

• Complete assembly with clutch — ready for installation

• Prefilled with PAG 46 oil — correct oil for R134a systems (130ml)

• OE-grade quality — available as Genuine Land Rover, Denso, Valeo, and other quality alternatives

• Direct-fit replacement — matches factory mounting points and electrical connections

OE Cross-Reference

💡 Supersession Note: LR019134 has been superseded by LR015151. All listed numbers refer to the same Denso 7SEU17C compressor for 4.0L V6 petrol applications.

Technical Specifications

Vehicle Fitment

Engine details (verify with VIN):

• 4.0L Cologne V6 Petrol (40VSER / 406PN) — 218 HP / 160 kW

⚠️ Important: This compressor fits the 4.0L V6 petrol engine in Discovery 3 and Discovery 4. VIN cut-offs apply — confirm your vehicle falls within the listed ranges.

Signs of Failure

• No A/C clutch engagement — compressor does not turn on when A/C is activated

• Warm air from vents — A/C system not cooling the cabin

• Grinding or whining noise — from the engine when A/C is turned on

• Intermittent cooling — A/C works sometimes but not others

💡 Important Warranty Note: When replacing the air compressor, the dryer and expansion valve must also be replaced and the system flushed — otherwise the warranty will not be valid. A failed compressor often distributes small particulates throughout the system that can clog these components.

Critical – Verify Your VIN Before Ordering

A/C compressors are VIN- and engine-specific. Provide your VIN – our team confirms exact compatibility before dispatch. We cannot accept returns for misordered parts without VIN verification.

💡 Installation Tip: Professional installation recommended — A/C compressor replacement is not a DIY project. The system must be depressurized and evacuated before removal, and recharged with R134a refrigerant after installation. Replace the receiver drier and expansion valve at the same time, as required by most manufacturers for warranty validity. A core exchange surcharge may apply on genuine units — return your original compressor to recover the deposit.

Why Choose Us

Contact us for bulk orders or VIN‑checked quotes.

Specifications subject to change; images for reference only.Aftermarket replacement – not affiliated with Jaguar Land Rover.
