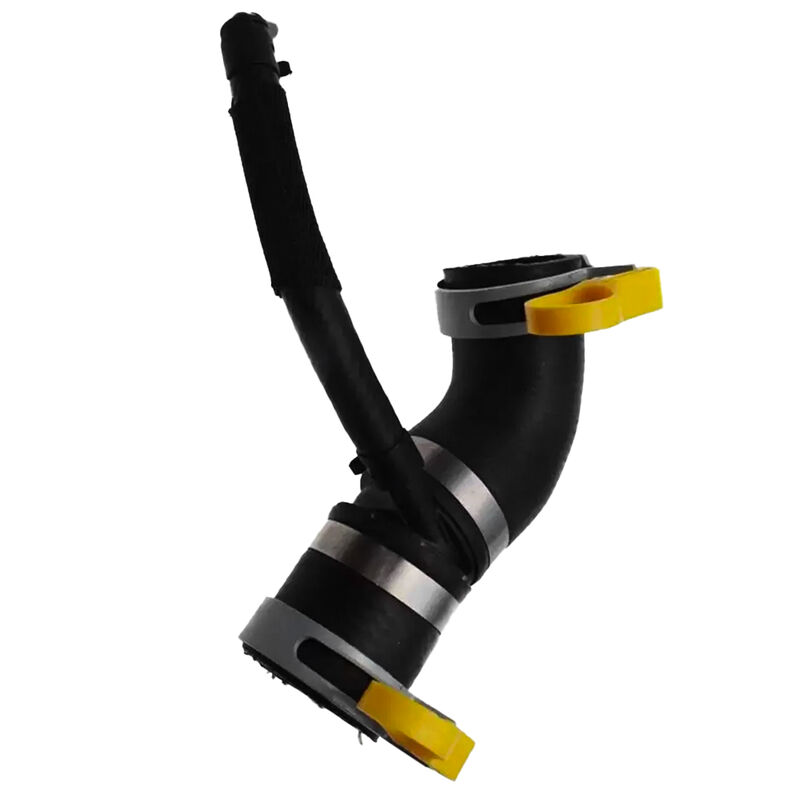

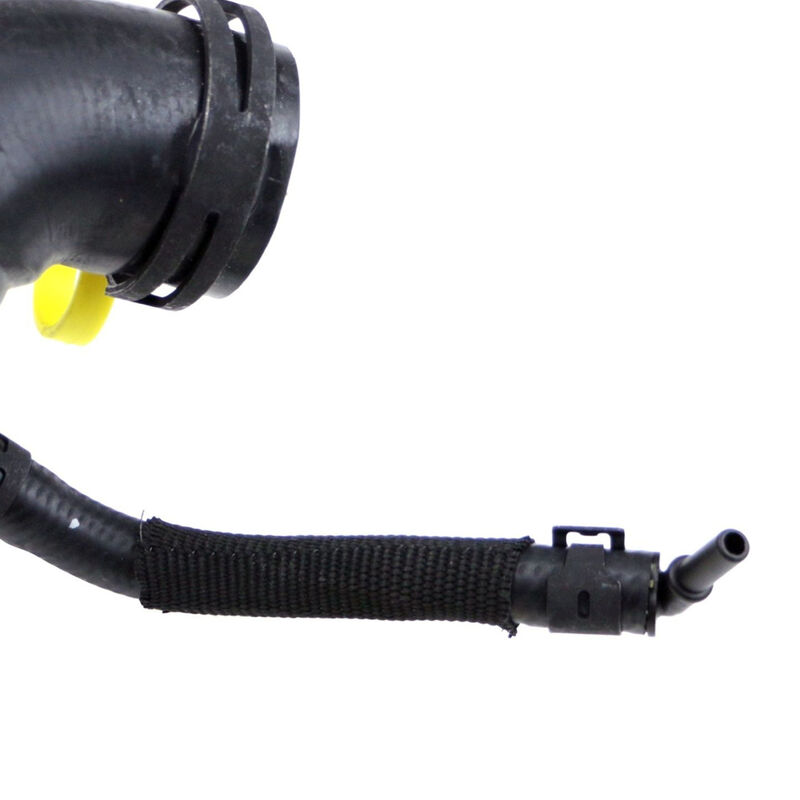

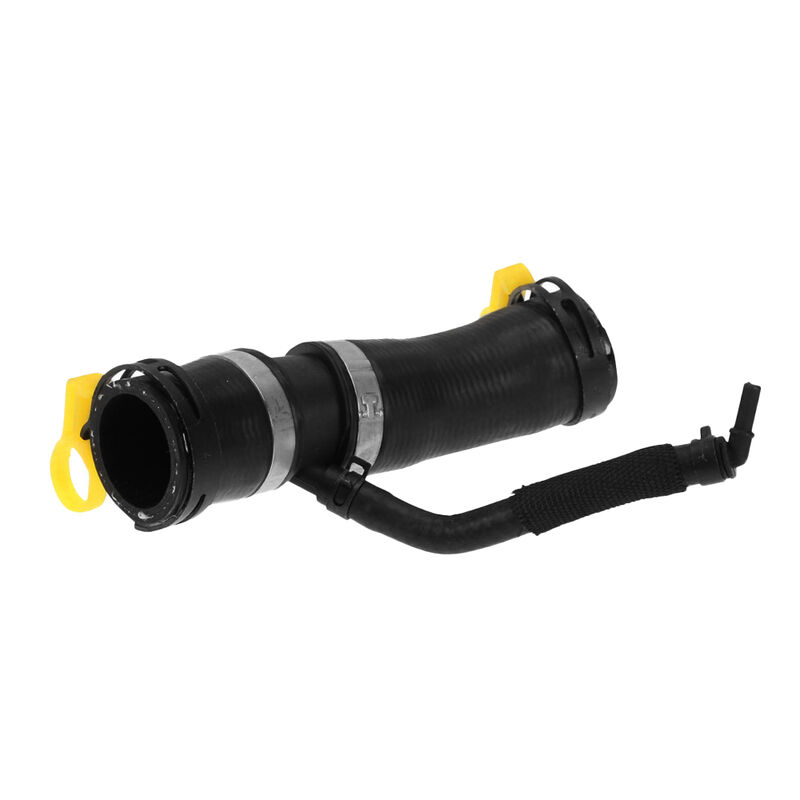

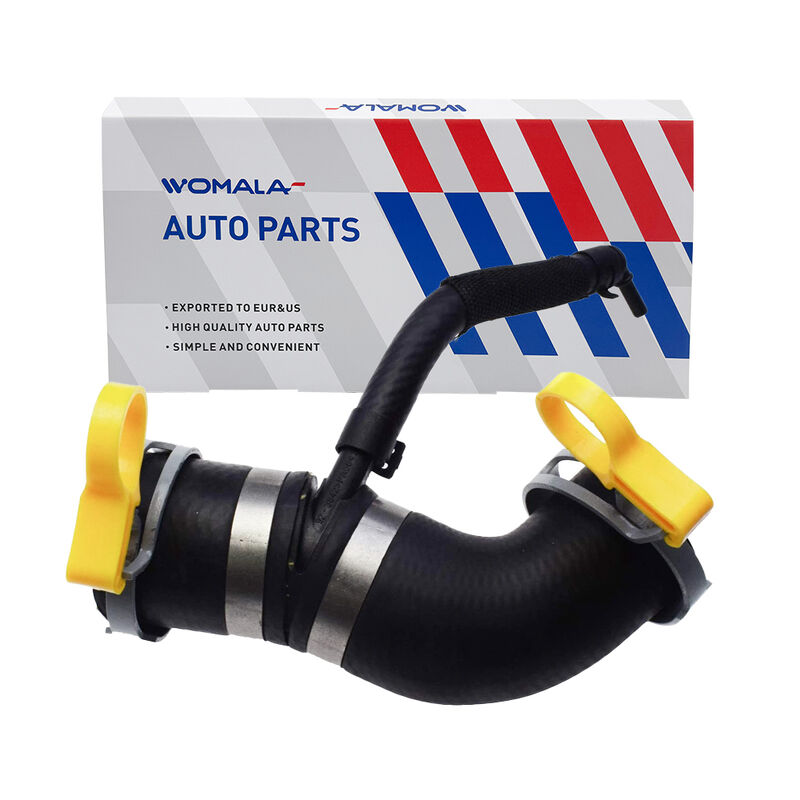

Womala Thermostat Tube Hose LR049989 for Land Rover Discovery 4 Range Rover Vogue

Product Overview

The Thermostat Coolant Hose LR049989 is an OE-grade engine cooling component engineered for select for Land Rover vehicles equipped with the 5.0L AJ-V8 petrol engine (both naturally aspirated and supercharged). This water outlet tube connects the thermostat to the engine block, transporting hot coolant from the thermostat to the engine where it circulates and absorbs heat. Manufactured to original equipment specifications, LR049989 is a direct replacement for the factory plastic pipe – upgraded metal alternatives are available for enhanced durability.LR049989 supersedes LR045237. C2Z22074 and C2Z28467 are Jaguar equivalents for the same application.

Key Features

• Water outlet tube – connects thermostat to engine for coolant circulation

• OE-grade quality – manufactured to original Land Rover specifications; available from OE suppliers including Gates and Rein

• Direct-fit replacement – matches factory routing and connections

• For 5.0L V8 petrol engines – AJ133 engine family (naturally aspirated and supercharged)

• Critical cooling component – prevents engine overheating and maintains optimal operating temperature

• Upgraded metal alternatives available – replaces failure-prone factory plastic parts-

OE Cross-Reference

Additional references: CHE0639 (Rein)· LR049989ES (Eurospare)

Vehicle Fitment

Also fits (verify with VIN):

• Range Rover Sport L320 (2010–2013) – 5.0L V8

• Discovery 4 / LR4 L319 (2010–2013) – 5.0L V8

⚠️ Important: This hose is for 5.0L V8 petrol engines only (AJ133) – both naturally aspirated and supercharged variants. Not for diesel, 3.0L, or other engine variants. Important note: Because of a design change, when replacing LR049989 you must also replace LR045238 – the system has been updated and reroutes some of the hoses.

Signs of Failure

• Coolant leaks – visible drips or puddles under the vehicle from the thermostat area

• Engine overheating – temperature gauge reading above normal

• Loss of coolant – recurring need to top up the reservoir

• Cracking, swelling, or deterioration – visible damage to the plastic pipe

• Sweet coolant smell – from the engine bay

💡 The factory plastic water outlet pipe is prone to cracking and failure over time due to heat cycling – upgraded metal alternatives offer improved durability-. A sudden failure can lead to rapid coolant loss and serious engine damage.

Critical – Verify Your VIN Before Ordering

Coolant hoses are VIN‑, engine‑, and model‑year‑specific. Variations in engine type (5.0L NA vs. 5.0L SC), production date, and chassis configuration affect fitment. Provide your VIN – our team confirms exact compatibility before dispatch. We cannot accept returns for misordered parts without VIN verification.

💡 Installation Tip: Professional installation recommended. When replacing the thermostat coolant hose, it is recommended to perform a coolant flush to remove any sludge that may have formed over time. Replace coolant with OEM-specified fluid at the correct mixture ratio after installation. Inspect all hose connections and clamps during replacement.

Technical Specifications

Why Choose Us

Contact us for bulk orders or VIN‑checked quotes.

Specifications subject to change; images for reference only.Aftermarket replacement – not affiliated with Jaguar Land Rover.
