Womala Air Spring Shock Absorber LR051702 for Land Rover Range Rover Vogue

Product Overview

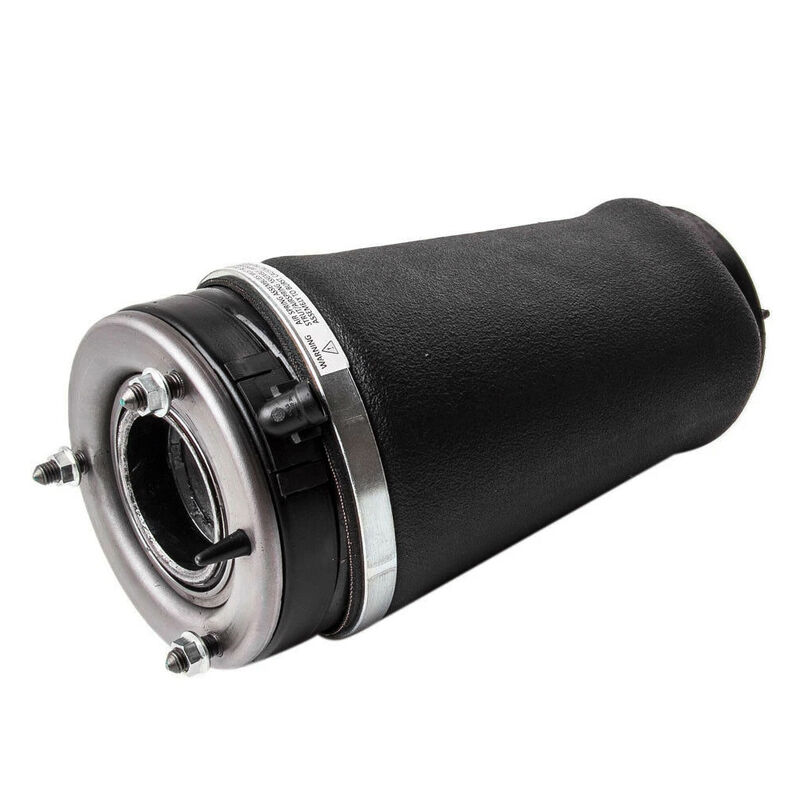

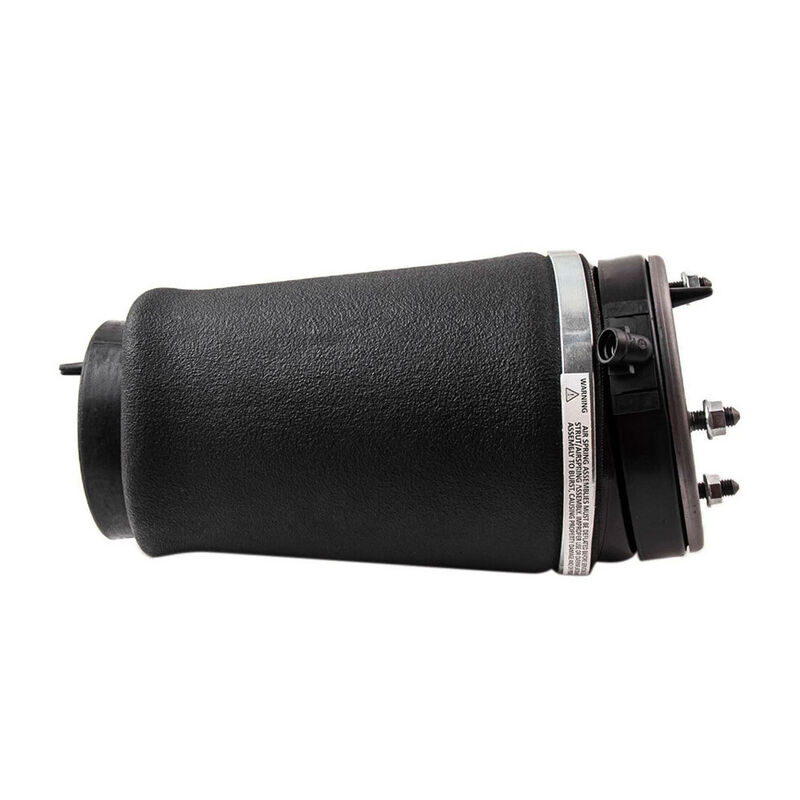

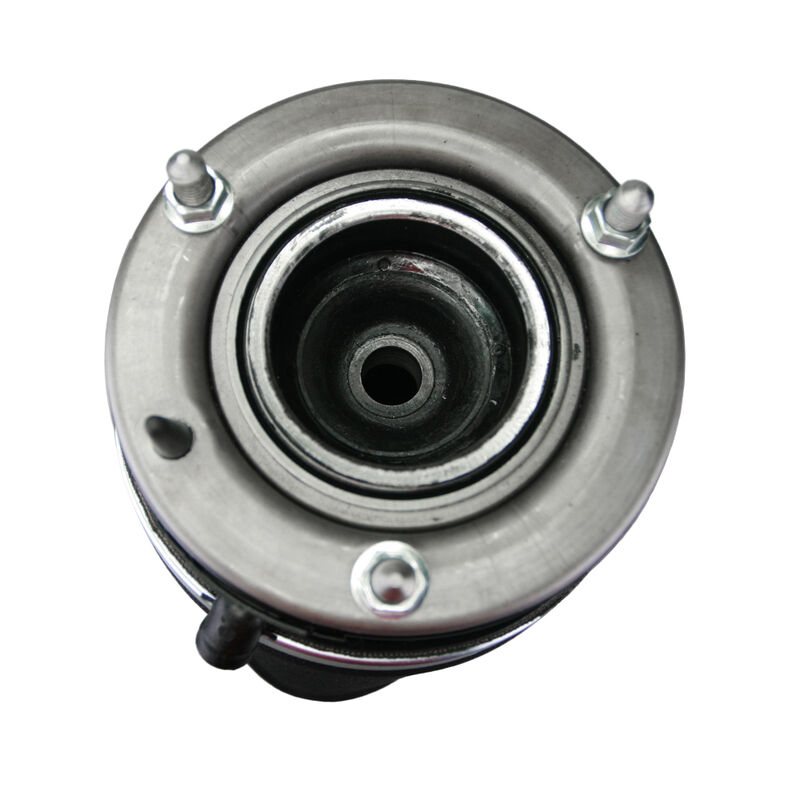

The Front Left Air Spring LR051702 is an OE-grade air suspension component engineered for the for Land Rover Range Rover (L322) from 2002 to 2012-. Also referred to as an air bag or air spring repair kit, this component replaces the rubber air bellow portion of the front air suspension strut. It is inflated with compressed air to support the vehicle‘s weight, maintain proper ride height, and provide a comfortable, stable ride. Manufactured to original equipment specifications, LR051702 is a direct replacement that restores factory ride quality and suspension performance.

Key Features

• Front left (LH) position – driver side on RHD vehicles-

• OE-grade quality – direct OEM replacement meeting Land Rover specifications-

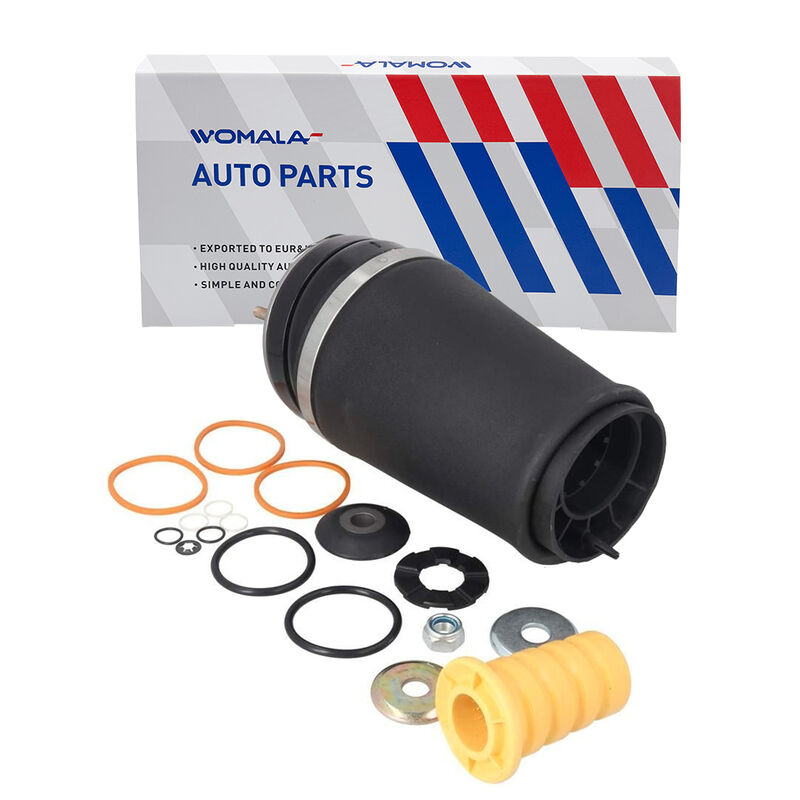

• Air spring only (repair kit) – replaces the air bellow while retaining the functional shock absorber

• Direct-fit replacement – matches factory mounting points; no modifications required

• Restores ride height and comfort – eliminates sagging and rough ride

OE Cross-Reference

Aftermarket equivalents: Arnott A-2934· Dorman 949-865-· NAPA NAS1010-· Unity Automotive 15-172001

Vehicle Fitment

Engine compatibility (verify with VIN):

• 3.0L / 3.6L TDV8 Diesel

• 4.4L V8 Diesel

• 4.4L V8 Petrol

• 5.0L V8 Petrol (NA & SC)

⚠️ Important: This is a front left (LH) position component only. For the right side, order LR051700. This air spring is not compatible with vehicles equipped with Variable Damping Suspension (VDS) from 2010–2012. Fitment varies by model year, production date, engine type, and VIN range – always verify before ordering.

Signs of Failure

• Vehicle sagging – front left corner sits lower than normal

• Rough or bouncy ride – loss of cushioning over bumps

• Air compressor running frequently – system compensates for leaks

• Hissing sound – audible air leak from the front left suspension

• Uneven ride height – vehicle sits unevenly side-to-side

💡 If the shock absorber is still functional, replacing just the air spring (repair kit) is a cost-effective solution.

Critical – Verify Your VIN Before Ordering

Air suspension components are VIN‑, model‑year‑, and specification‑sensitive. Variations in suspension type (VDS vs. non-VDS), engine type, production date, and VIN range affect fitment. Provide your VIN – our team confirms exact compatibility before dispatch. We cannot accept returns for misordered parts without VIN verification.

💡 Installation Tip: Professional installation recommended. The air bellow is not inflated for transportation and can be inflated normally after installation. After replacement, the suspension system may require calibration using diagnostic equipment. Always inspect air lines and fittings for damage during replacement.

Technical Specifications

Why Choose Us

Contact us for bulk orders or VIN‑checked quotes.

Specifications subject to change; images for reference only.Aftermarket replacement – not affiliated with Jaguar Land Rover.
