Womala TIMING CHAIN KIT LR010765 for Land Rover Range

Product Overview

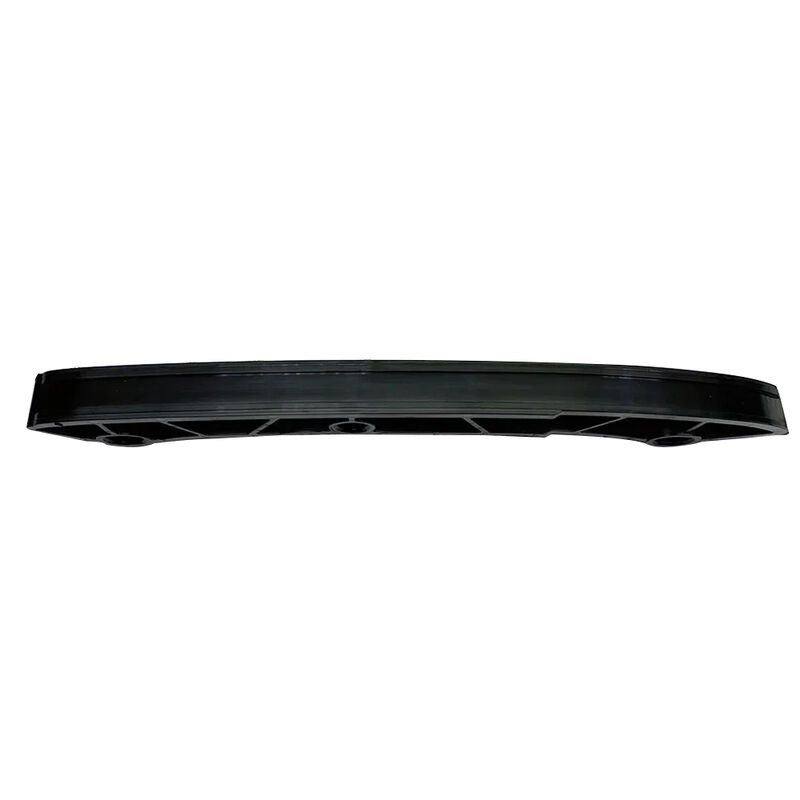

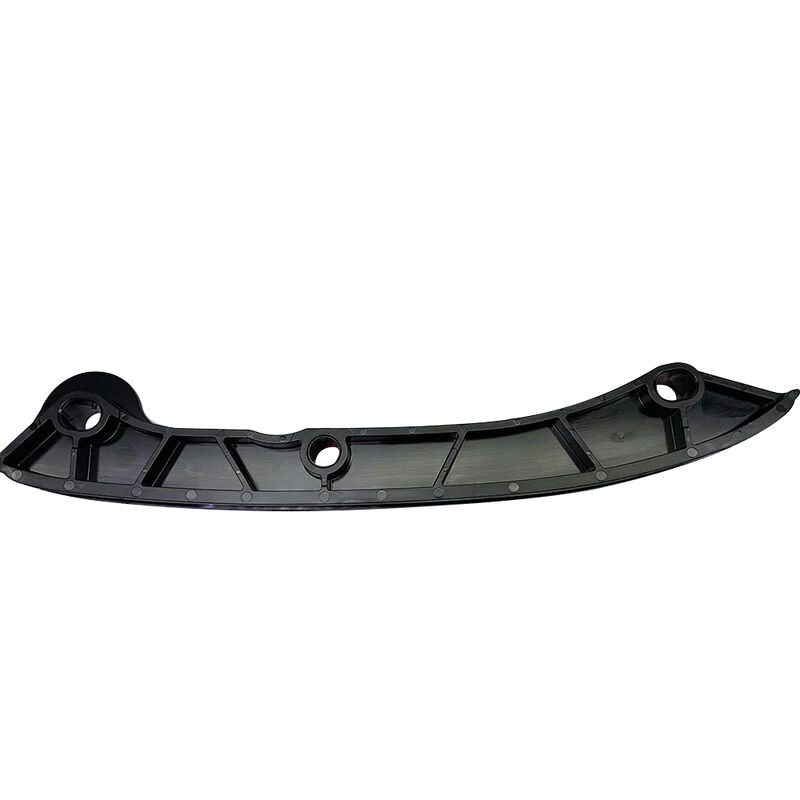

The Timing Chain Guide LR010765 (superseded by LR051011) is an OE-grade component for the 3.0L V6 and 5.0L V8 petrol engines (AJ126 / AJ133) in select for Land Rover and for Jaguar vehicles. Also known as a chain guide rail or slack-side guide, it maintains proper alignment and tension of the primary timing chain, ensuring accurate crankshaft-to-camshaft timing.

LR051011 is the current replacement part, superseding LR010765. AJ812449 and C2Z28429 are Jaguar equivalents for the same right-hand timing chain guide.

Key Features

• Right-hand (RH) position – slack-side guide for the primary timing chain

• OE-grade quality – available as Genuine Land Rover and quality aftermarket alternatives

• Direct-fit replacement – matches factory mounting points; no modifications required

• For 3.0L V6 and 5.0L V8 petrol engines – AJ126 / AJ133 engine families

• Sold individually – replace as a set with the chain, tensioner, and opposite guide for a complete timing service

OE Cross-Reference

💡 Supersession Note: LR051011 replaces LR010765 and is the current recommended replacement part.

Technical Specifications

Vehicle Fitment

⚠️ Important: This is the right-hand (RH) guide – for the left-hand guide, order LR051012. For 3.0L V6 and 5.0L V8 petrol engines only – not for diesel or 2.0L variants.

Signs of Failure

• Rattling or clattering noise – from the timing cover, especially on cold start

• Check engine light – timing or cam/crank correlation DTCs

• Engine misfires – improper timing causing poor combustion

• Engine stalling or hard starting – severe chain slack affecting timing

💡 Timing chain guides can become brittle and crack with age and heat cycling. A failed guide can allow the timing chain to slacken, risking serious engine damage.

Critical – Verify Your VIN Before Ordering

Timing chain guides are VIN-, engine-, and position-specific. Provide your VIN – our team confirms exact compatibility before dispatch. We cannot accept returns for misordered parts without VIN verification.

💡 Installation Tip: Professional installation required – correct timing alignment is critical. When replacing the timing chain guide, inspect the timing chain, tensioner, and other guides for wear – replace as a set if necessary.
