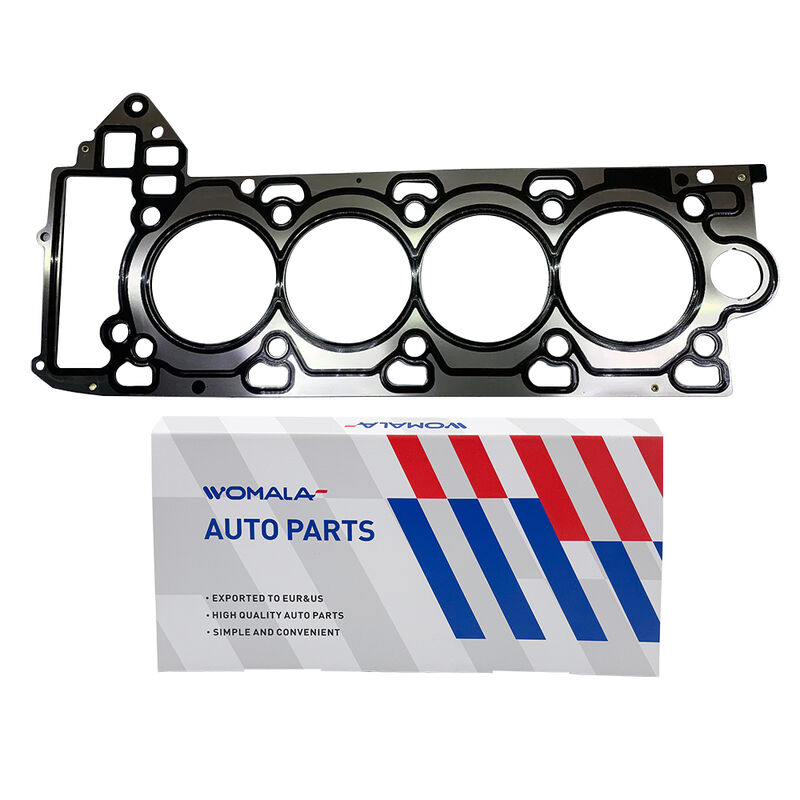

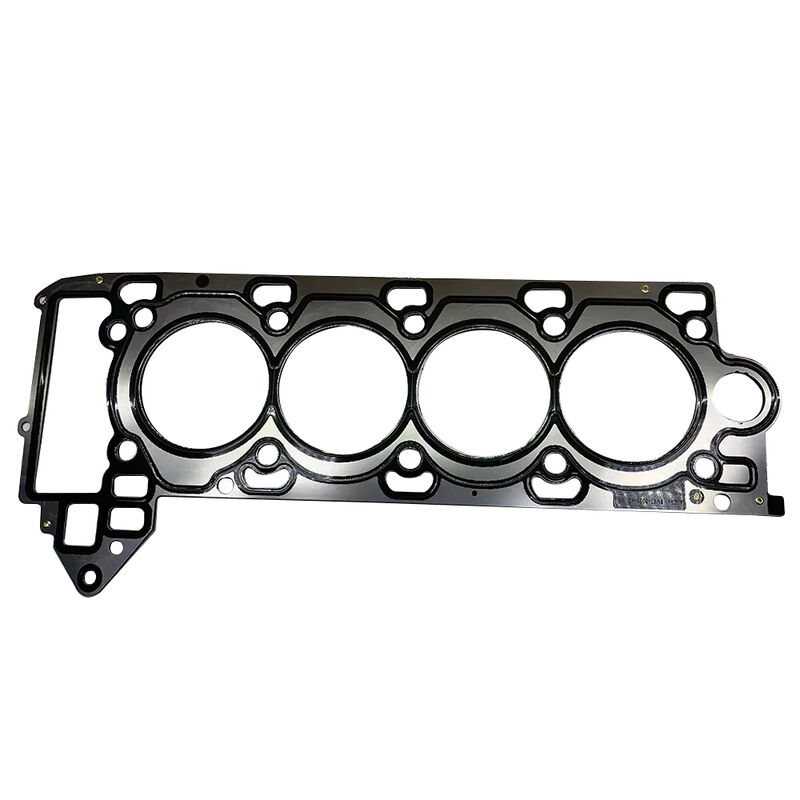

Womala Cylinder Head Gasket OE LR105294 for Jaguar XE XJ F-Type Land Rover

Product Overview

The Cylinder Head Gasket LR105294 is an OE-grade sealing component engineered for the right-hand cylinder bank of the 5.0L V8 petrol engine (AJ133) in select for Land Rover vehicles. It seals the junction between the cylinder head and engine block, containing combustion pressure while sealing coolant and oil passages across the deck face . This is the 3-layer version; later engine builds were revised to a 4-layer gasket (LR181762) from VIN P2189530 .

Key Features

• Right-hand (RH) cylinder bank – cylinders 1 to 4

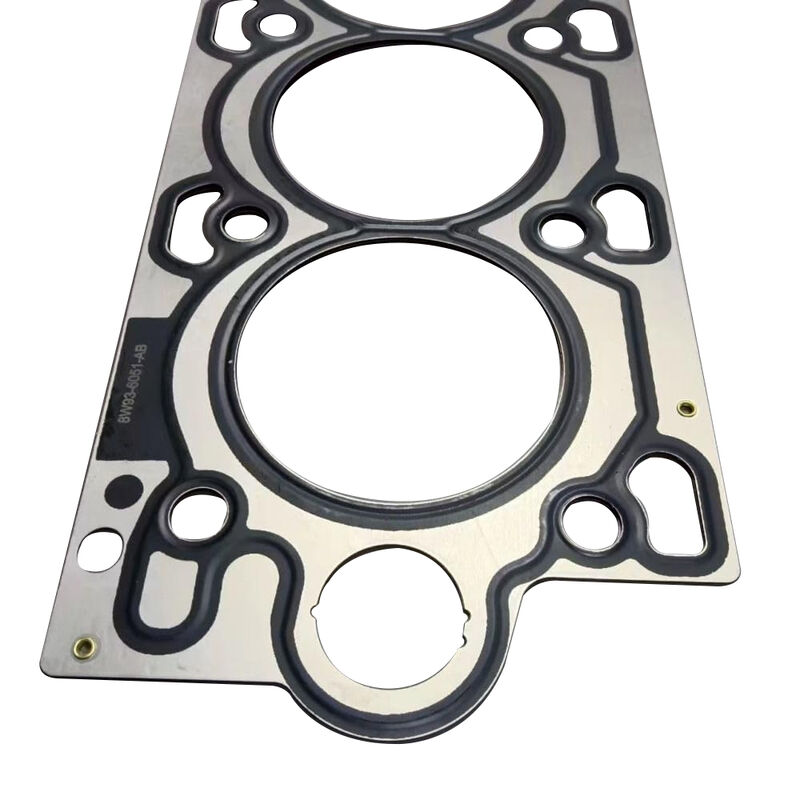

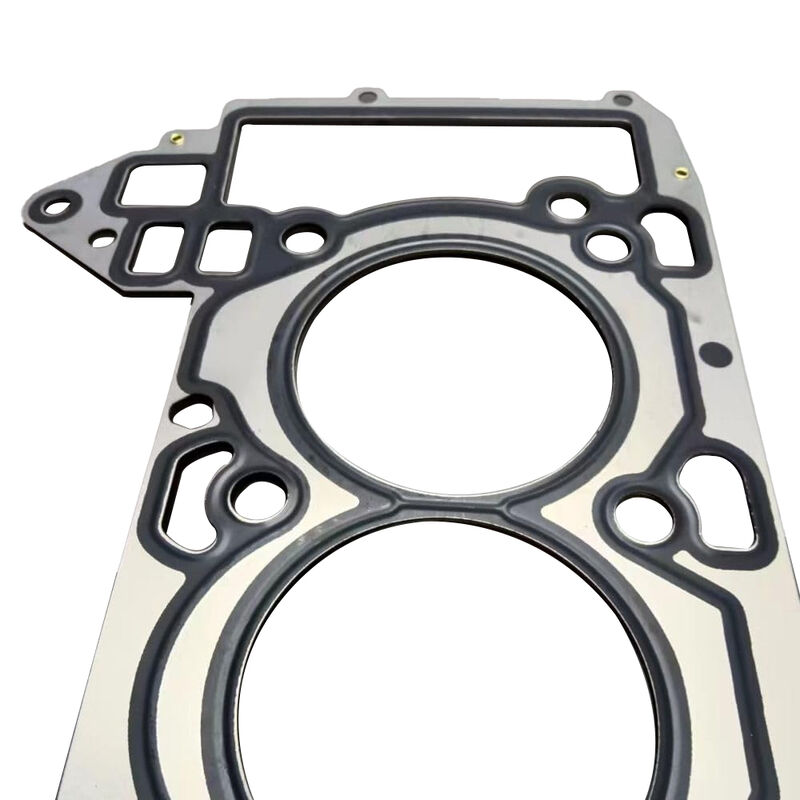

• 3-layer MLS construction – multi-layer steel with elastomer coating for superior sealing

• OE-grade quality – available as Genuine Land Rover and quality aftermarket alternatives (Elring)

• Direct-fit replacement – matches factory deck face and combustion chamber openings

OE Cross-Reference

💡 Supersession Note: LR105294 replaces LR010692, LR026141, and LR084186. From VIN P2189530, the 4-layer version LR181762 supersedes this gasket .

Technical Specifications

Vehicle Fitment

⚠️ Important: This is the right-hand (RH) gasket for cylinders 1–4. The left-hand (LH) gasket for cylinders 5–8 is a separate part number (LR105293) .

Signs of Failure

• Coolant leaks – overheating or loss of coolant

• Oil leaks – reduced lubrication and potential engine wear

• Combustion gas leaks – reduced performance and emissions problems

• Overheating – cylinder head gasket failure compromising cooling system integrity

💡 A failed head gasket can lead to coolant mixing with oil, compression loss, and eventual catastrophic engine damage if not addressed promptly.

Critical – Verify Your VIN Before Ordering

Cylinder head gaskets are VIN-, engine-, and layer-count-specific. 3-layer (LR105294) applies to VIN up to P2189529; from VIN P2189530 the 4-layer version (LR181762) is required . Provide your VIN – our team confirms exact compatibility before dispatch. We cannot accept returns for misordered parts without VIN verification.

💡 Installation Tip: Professional installation required – cylinder head removal is necessary. New cylinder head bolts must always be used (torque-to-yield). Clean deck surfaces thoroughly, check head flatness, and torque in the correct sequence to manufacturer specifications. The gasket is single-use – never reuse a compressed gasket .

Why Choose Us

Contact us for bulk orders or VIN‑checked quotes.

Specifications subject to change; images for reference only.Aftermarket replacement – not affiliated with Jaguar Land Rover.
