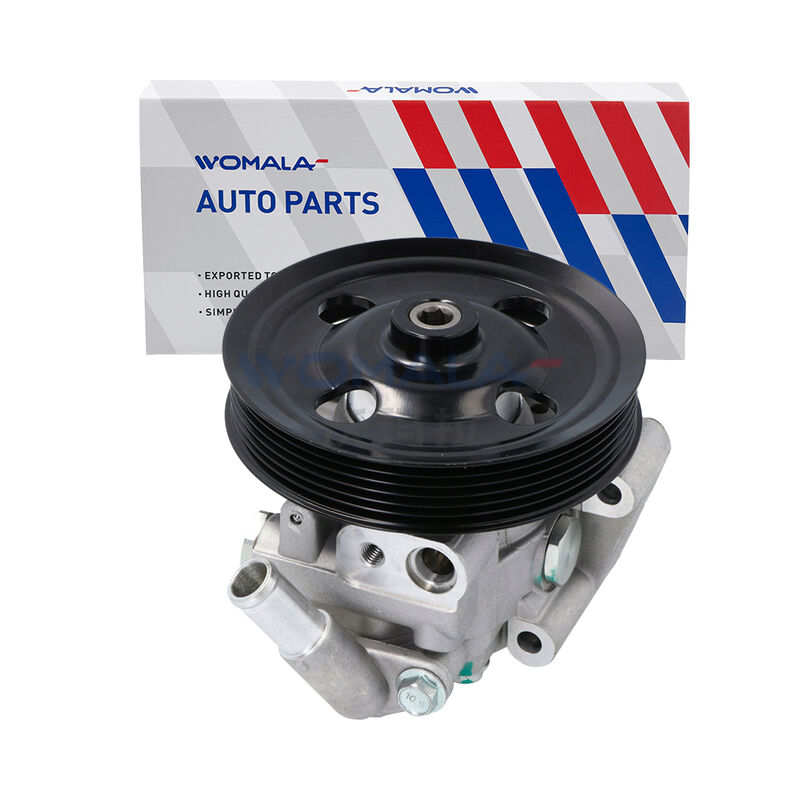

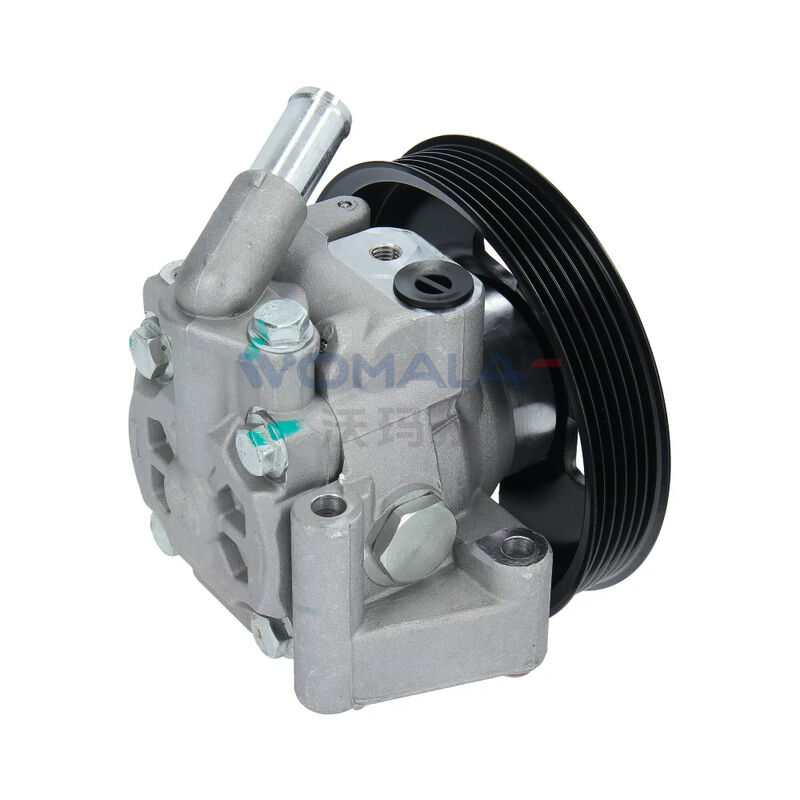

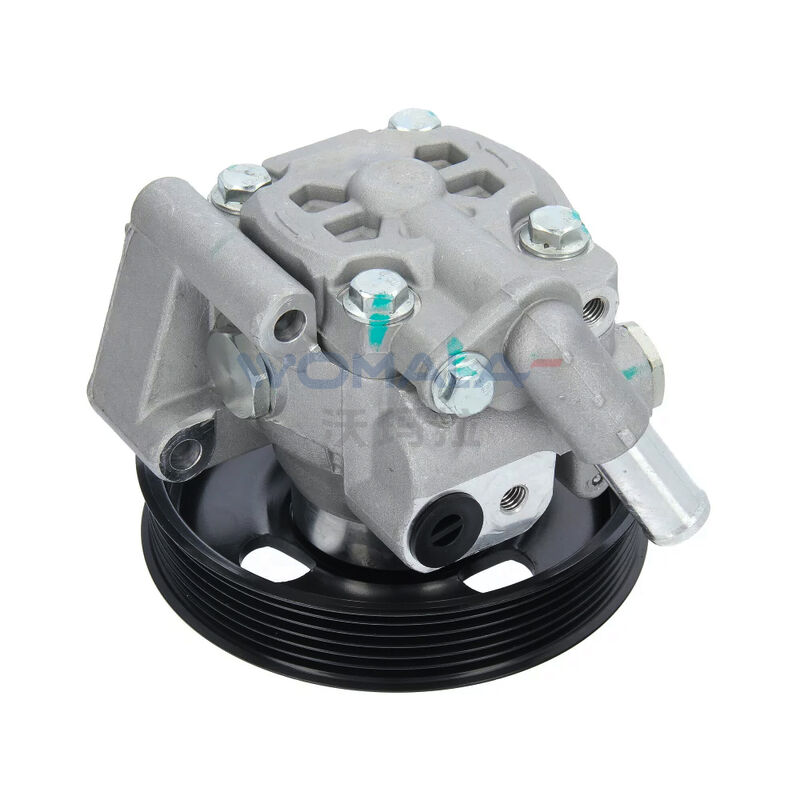

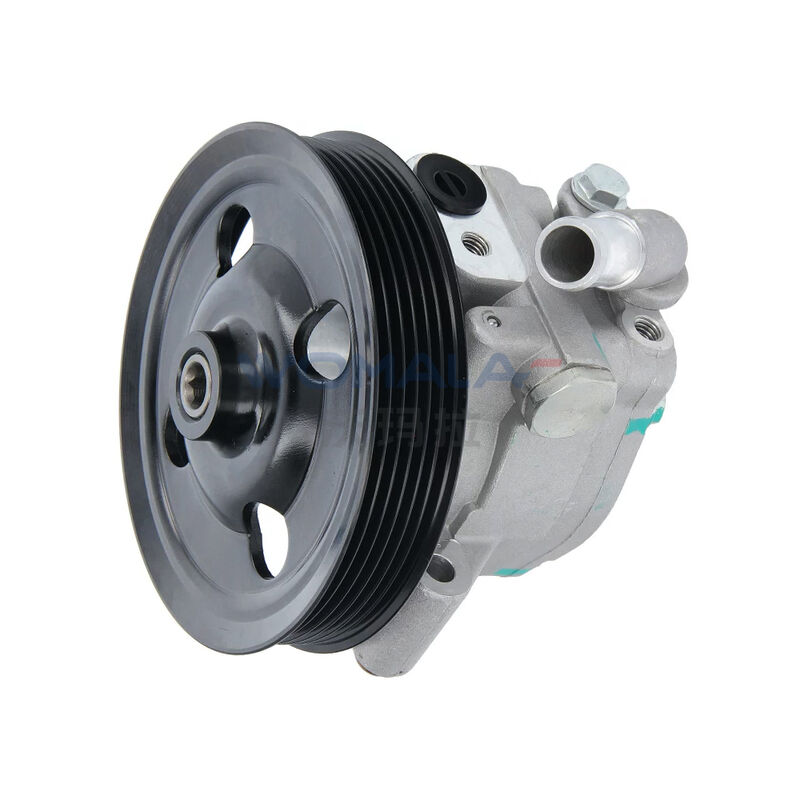

Womala Power Steering Pump OE LR006462 for LAND ROVER FREELANDER 2 L359 2006-2014

Product Overview

The Power Steering Pump LR006462 is an OE-grade hydraulic pump engineered for the for Land Rover Freelander 2 / LR2 (L359) equipped with the 2.2L diesel engine (TD4 / SD4 / eD4). This belt-driven pump pressurises the power steering fluid, reducing the effort required to turn the steering wheel, especially during low-speed manoeuvres and parking.

LR005658 is the original part number; LR006462 is the current supersession. LR007500 and LR001106 are additional interchange references for the same pump.

Key Features

• Hydraulic vane pump design – provides consistent steering assistance across the engine speed range

• 129mm 6-groove pulley – factory-specified pulley diameter and belt configuration

• OE-grade quality – available as Genuine Land Rover and quality aftermarket alternatives (BGA, NAPA, ZF)

• Direct-fit replacement – matches factory mounting points and high-pressure line connection

• Supersession – LR005658 → LR006462

OE Cross-Reference

💡 Note: LR005658 is the earlier part number; LR006462 is the current replacement. Ford cross-references apply to the same pump used on Mondeo, Galaxy, and S-Max 2.2 TDCi models.

Technical Specifications

Vehicle Fitment

Engine details (verify with VIN):

• 2.2L CR DI 16V Diesel (DW12BTED4)

• 2.2L DOHC EFI TC DW12 (TD4 / SD4 / eD4)

• Power variants: 110 kW (150 PS), 118 kW (160 PS), 140 kW (190 PS)

⚠️ Important: This pump is specifically for the 2.2L diesel engine. Not for the 3.2L petrol engine, which uses a different ZF pump. For vehicles with AWD, confirm the correct part number — manual and automatic transmission applications may differ.

Signs of Failure

• Whining or squealing noise – from the steering system when turning the wheel

• Heavy steering feel – especially at low speeds or during parking manoeuvres

• Leaking fluid – visible power steering fluid at the pump or connections

• Squeaking or chirping – when turning the wheels, indicating pump wear

• Loss of power assistance – steering becomes difficult to turn

💡 Power steering pumps are generally a lifetime component, but poor maintenance, old fluid, or incorrect fluid can cause premature failure. If you experience heavy steering or whining noises, have the system checked promptly.

Critical – Verify Your VIN Before Ordering

Power steering pumps are VIN- and engine-specific. Confirm you have the 2.2L diesel engine — not the 3.2L petrol. Transmission type (manual vs. automatic) may also affect fitment. Provide your VIN – our team confirms exact compatibility before dispatch. We cannot accept returns for misordered parts without VIN verification.

💡 Installation Tip: Professional installation recommended. When replacing the pump, inspect all high-pressure lines and connections for wear. Tighten the high-pressure line to power steering pump to 20 Nm (15 lb-ft). Bleed the power steering system thoroughly after installation to remove air pockets and prevent pump damage.

Why Choose Us

Contact us for bulk orders or VIN‑checked quotes.

Specifications subject to change; images for reference only.Aftermarket replacement – not affiliated with Jaguar Land Rover.
