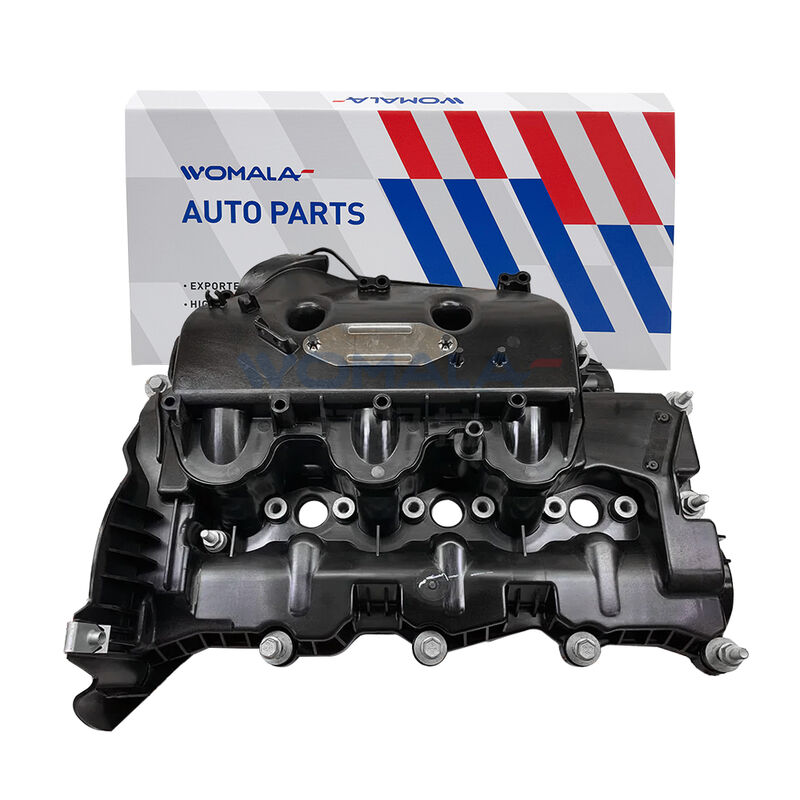

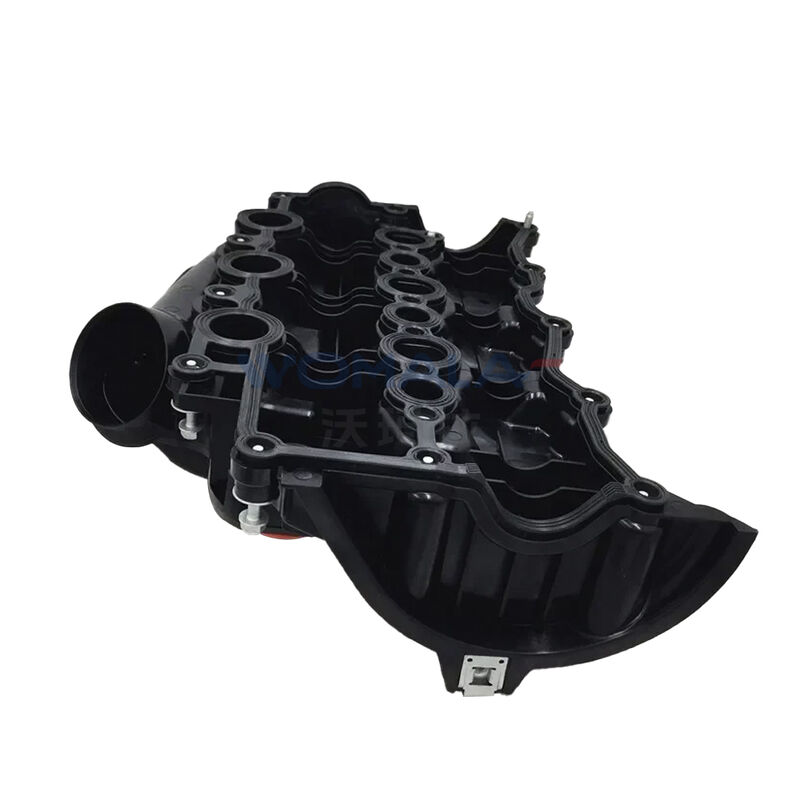

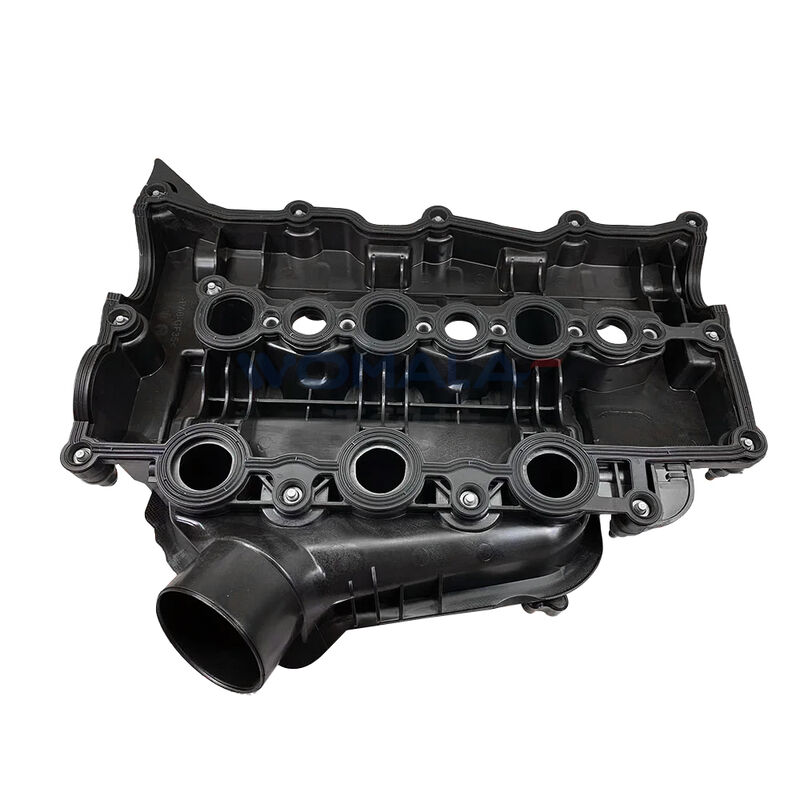

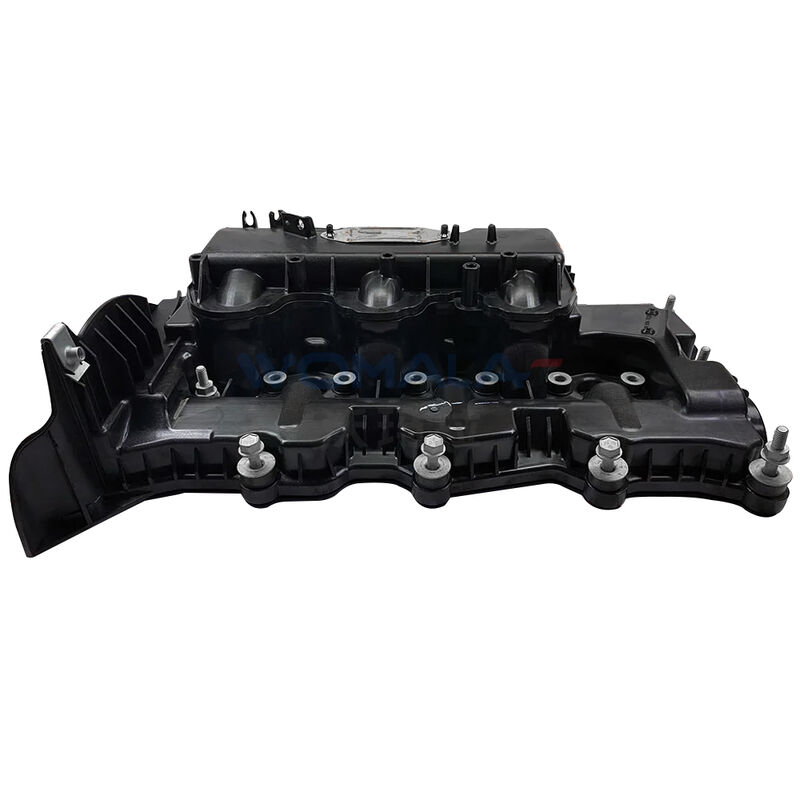

Womala Valve cover LR105956 for Land Rover Range Rover Sport VELAR Discovery

Product Overview

The Left Inlet Manifold / Valve Cover LR105956 is an OE-grade engine component for select for Land Rover and for Jaguar vehicles equipped with the 3.0L V6 diesel engine (306DT / TDV6 / SDV6). This component integrates the valve cover and inlet manifold into a single unit, managing both air distribution to the cylinders and crankcase ventilation. LR179200 is the current genuine replacement part, superseding LR105956 and multiple earlier numbers.

Key Features

• Left-hand (LH) position – driver side

• Integrated design – combines valve cover and inlet manifold in one assembly

• OE-grade quality – genuine Land Rover specification; available as Genuine and quality aftermarket alternatives

• Includes cover gasket – pre-fitted for proper sealing

• Upgraded aluminium version available – replaces failure-prone factory plastic for enhanced durability

OE Cross-Reference

💡 Supersession Note: LR179200 replaces LR105956 and all part numbers listed above. For vehicles from VIN HA143181, LR179200 is the required replacement.

Technical Specifications

Vehicle Fitment

VIN Notes: Applies from VIN HA143181.

⚠️ Important: LR179200 is specifically for the 3.0L V6 diesel engine. Not for petrol, 2.0L diesel, or other engine variants. The right-hand counterpart is LR179201.

Signs of Failure

• Oil leaks – visible oil around the valve cover / inlet manifold area

• Reduced engine performance – air leaks affecting combustion

• Check engine light – intake manifold or crankcase ventilation-related DTCs

• Increased oil consumption – oil entering the intake system

• Visible cracks – plastic components can crack with age due to heat cycling

💡 This assembly is a known failure point on the 3.0L V6 diesel engine — particularly the plastic versions, which can crack and cause pressure leaks leading to performance loss or limp mode. Upgraded aluminium versions offer significantly improved durability.

Critical – Verify Your VIN Before Ordering

Inlet manifolds / valve covers are VIN-, engine-, and position-specific. Provide your VIN – our team confirms exact compatibility before dispatch. We cannot accept returns for misordered parts without VIN verification.

💡 Installation Tip: Professional installation recommended. The cover gasket is included. Clean the sealing surface thoroughly before installation. Torque bolts to manufacturer specifications in the correct sequence.

Why Choose Us

Contact us for bulk orders or VIN‑checked quotes.

Specifications subject to change; images for reference only.Aftermarket replacement – not affiliated with Jaguar Land Rover.
