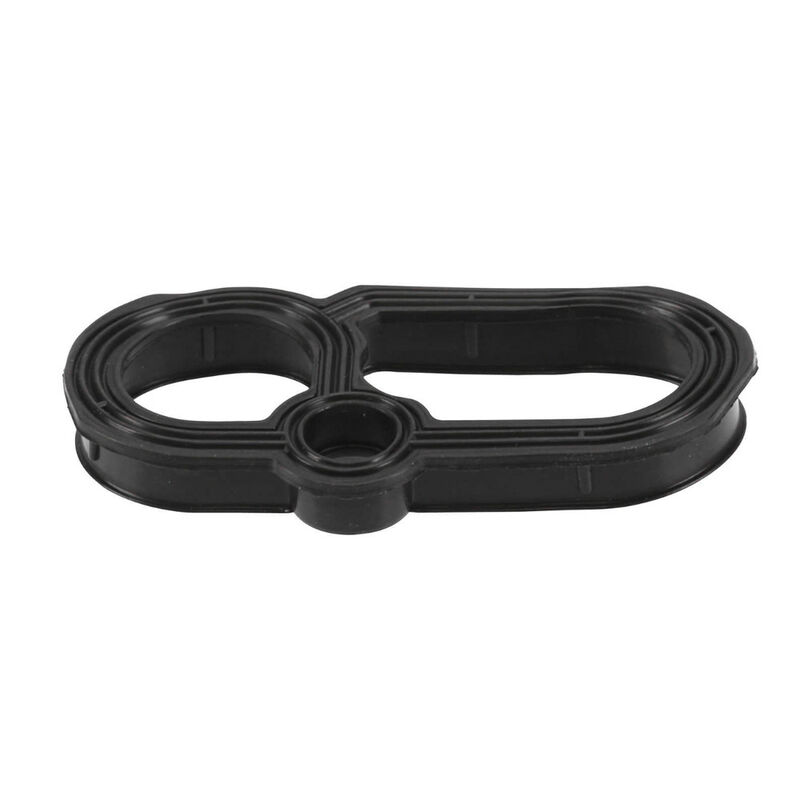

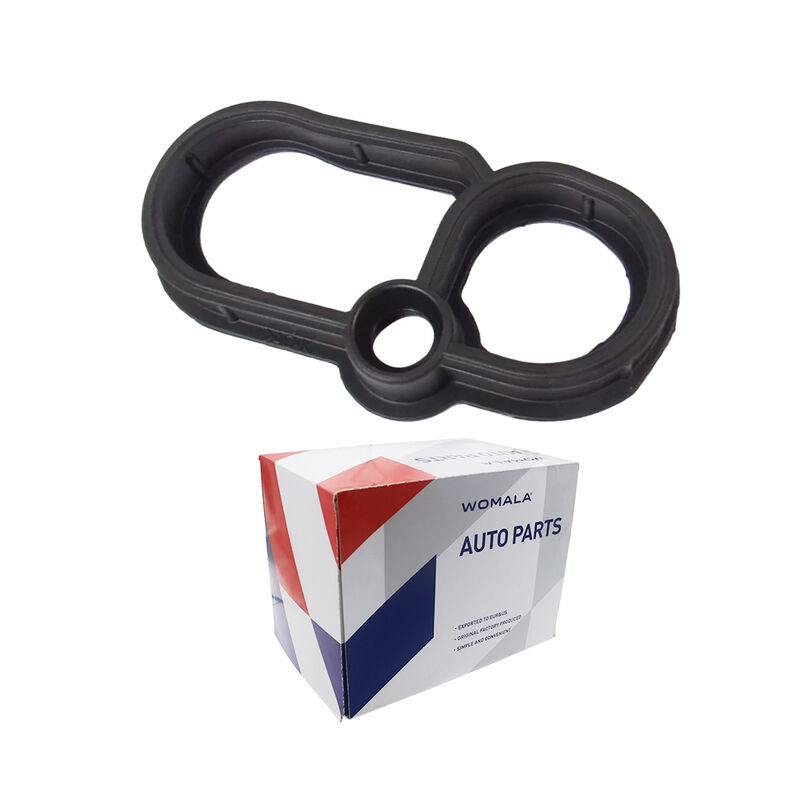

Womala Spark Plug Hole Gasket OE LR014345 For Land Rover LR4 Range Rover Sport

Product Overview

The Spark Plug Tube Seal LR014345 (also referenced as C2D3526) is an OE-grade sealing component for for Land Rover and for Jaguar vehicles with 3.0L V6 and 5.0L V8 petrol engines (AJ126 / AJ133). Also known as a spark plug hole gasket or valve cover washer seal, this seal fits into the valve cover around each spark plug tube, preventing engine oil from leaking into the spark plug wells and contaminating the spark plugs and ignition coils.C2D3526 is the Jaguar part number; LR014345 is the Land Rover equivalent.

Key Features

• Left-hand side (LH) position – fits the left bank of the engine

• Prevents oil contamination – seals spark plug tubes to keep oil away from spark plugs and ignition coils

• OE-grade quality – genuine Jaguar / Land Rover specification

• Direct-fit replacement – matches factory valve cover mounting holes

• For 3.0L V6 and 5.0L V8 petrol engines – AJ126 / AJ133 engine families

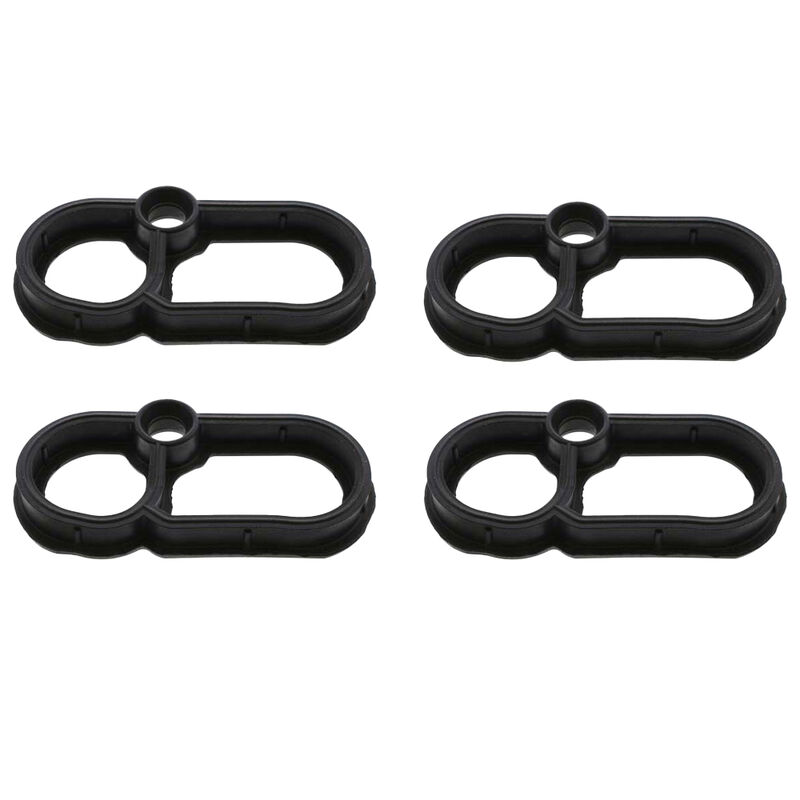

• Sold individually – V6 requires 6 seals; V8 requires 8 seals

OE Cross-Reference

💡 Note: LR014345 and C2D3526 refer to the same spark plug tube seal. Both part numbers are interchangeable for the applications listed below.

Technical Specifications

Vehicle Fitment

⚠️ Important: This seal is specifically for petrol engines (3.0L V6 AJ126 and 5.0L V8 AJ133) — not for diesel or 2.0L variants. This is the left-hand side seal — the right-hand side uses a separate part number (C2D3527 / LR014346).

Signs of Failure

• Oil in spark plug wells – visible oil around the spark plugs when ignition coils are removed

• Engine misfire – oil-contaminated spark plugs causing rough idle or misfire under load

• Check engine light – misfire-related DTCs

• Burning oil smell – from the engine bay

• Blue smoke from exhaust – oil entering the combustion chambers

💡 Spark plug tube seals are a common failure point on high-mileage AJ126 and AJ133 engines. If oil is present in the spark plug wells, the ignition coils and spark plugs should be inspected and replaced if contaminated.

Critical – Verify Your VIN Before Ordering

Spark plug tube seals are VIN-, engine-, and position-specific. This is the left-hand seal — confirm your engine bank and quantity before ordering. Provide your VIN – our team confirms exact compatibility before dispatch. We cannot accept returns for misordered parts without VIN verification.

💡 Installation Tip: Professional installation recommended. When replacing spark plug tube seals, the valve cover must be removed. It is recommended to replace the main valve cover gasket and all spark plug tube seals simultaneously. Clean all sealing surfaces thoroughly before installation.
