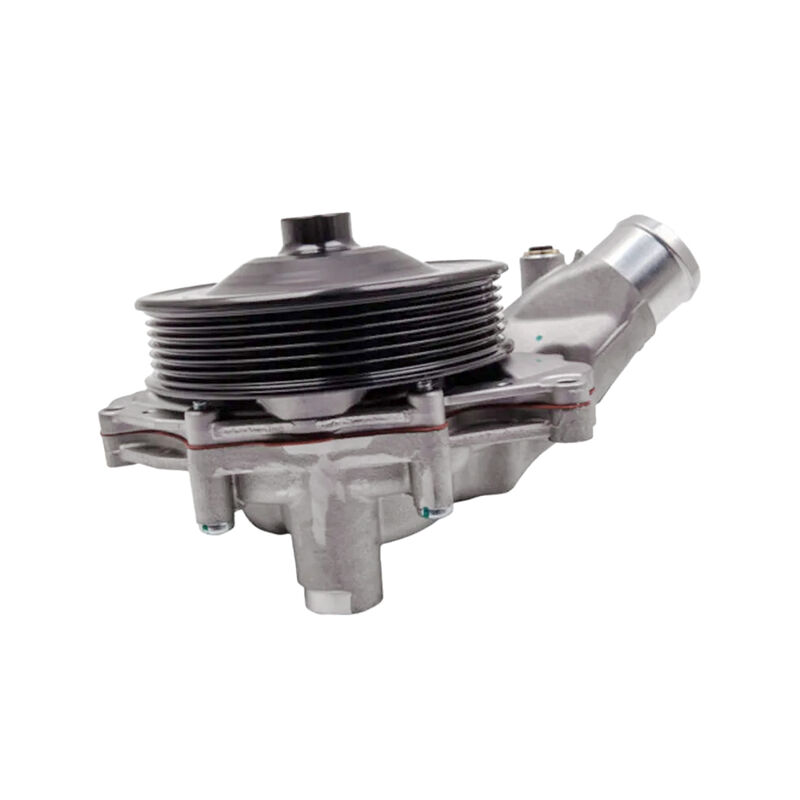

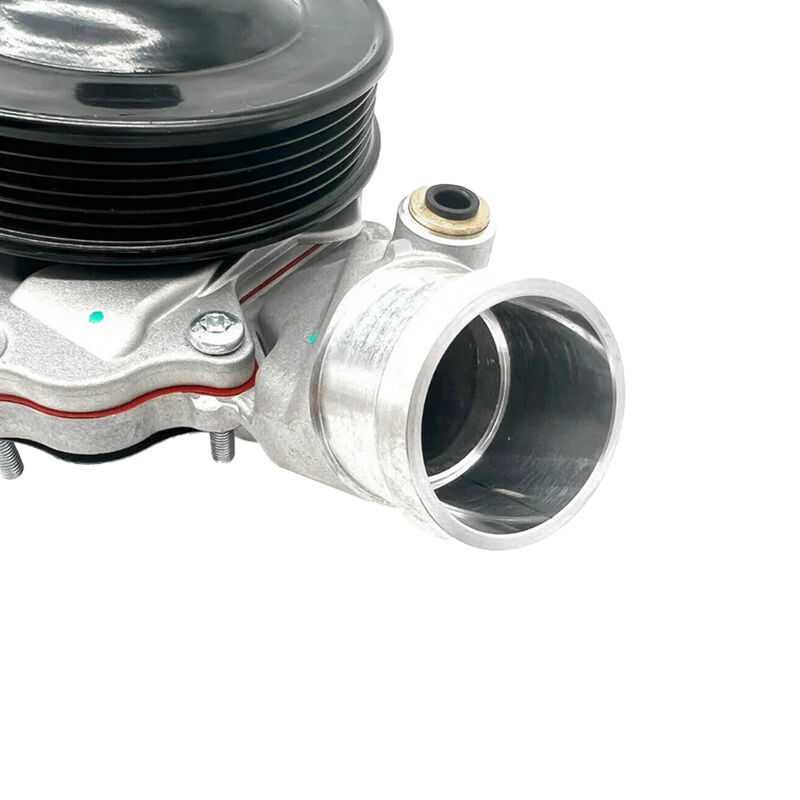

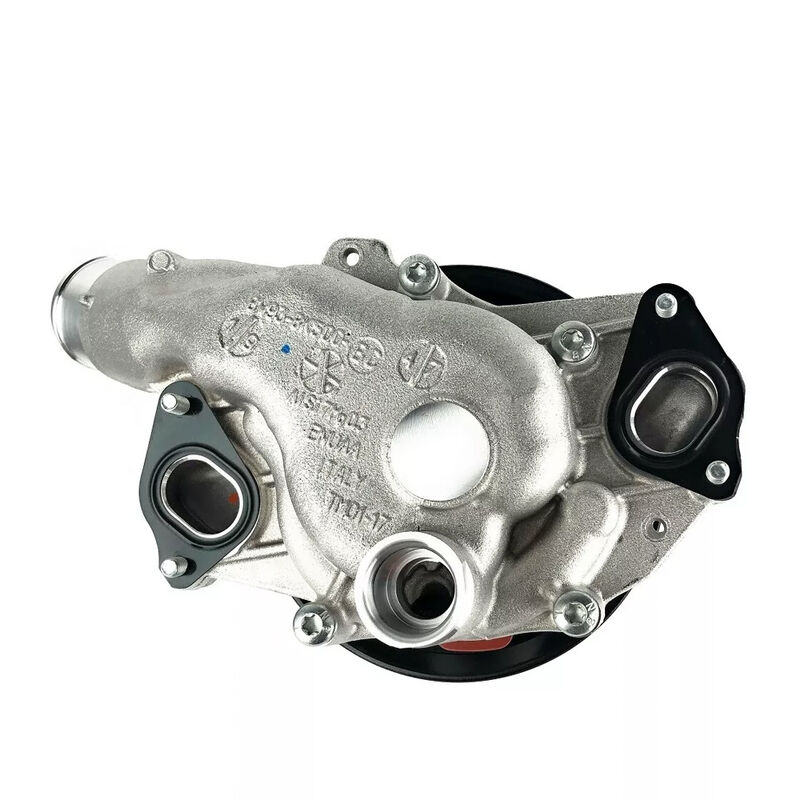

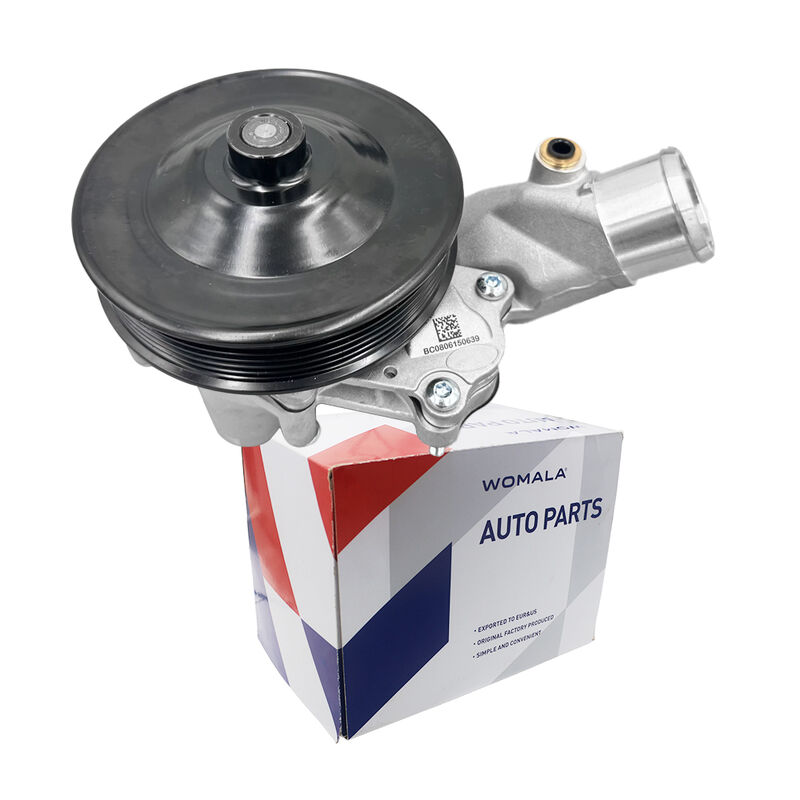

Womala Water Pump Oe LR097165 for Land Rover LR4 Range Rover Sport

Product Overview

The Water Pump LR097165 is a genuine OE-grade engine cooling component engineered for the 3.0L V6 supercharged petrol (AJ126) and 5.0L V8 supercharged petrol (AJ133) engines in select for Land Rover vehicles. Driven by the engine‘s accessory belt, this pump circulates coolant through the block, cylinder heads, and radiator to carry heat away from the combustion chambers and maintain the engine at its operating temperature under load .

LR097165 is the current replacement part at the end of a long supersession chain: LR010801 → LR029412 → LR033993 → LR055239 → LR065486 → LR068999 → LR072642 → LR073711 → LR097165 .

⚠️ Important: This water pump is specifically for supercharged petrol engines — 3.0L SC V6 and 5.0L SC V8. It is not compatible with diesel engines (2.7L TDV6 uses LR009324, 2.0L Ingenium diesel uses LR073693) .

Key Features

• Belt-driven centrifugal pump – circulates coolant to maintain stable engine operating temperature

• Supercharged petrol engine specific – precision-engineered for the 3.0L SC V6 and 5.0L AJ133 SC V8

• OE-grade quality – available as Genuine Land Rover, AISIN, GMB, and other quality alternatives

• Direct-fit replacement – matches factory mounting points and serpentine belt drive

• Complete kit options available – some packages include metal gaskets, bolts, and upgraded aluminium oil cooler connector

OE Cross-Reference

💡 Note: LR097165 replaces all earlier part numbers in the chain. Always verify which number is on your existing unit.

Technical Specifications

Vehicle Fitment

Engine details (verify with VIN):

• 3.0L DOHC GDI SC V6 Petrol (AJ126)

• 5.0L OHC SGDI SC V8 Petrol (AJ133)

⚠️ Important: A VIN is required to order this water pump — it covers several supercharged petrol engines and build variants across Discovery, Range Rover, and Defender models. The correct pump depends on your exact engine and build .

Signs of Failure

• Coolant loss – visible drips or puddles under the front of the engine

• Engine overheating – temperature gauge rising above normal

• Coolant leak from pump weep hole – seal failure allowing coolant past the bearing

• Whining or grinding noise – from the front of the engine, indicating bearing wear

• Loose or noisy water pump pulley – play in the pulley or rough rotation

💡 Known Issue: On the 5.0L V8 AJ133 engine, coolant leaks from the water pump are a documented concern — Land Rover released Technical Service Message SSM64677 and Technical Bulletin LTB00352 to address water pump diagnostics and quality improvements .

Critical – Verify Your VIN Before Ordering

Water pumps are VIN- and engine-specific. Provide your VIN – our team confirms exact compatibility before dispatch. We cannot accept returns for misordered parts without VIN verification .

💡 Installation Tip: Professional installation recommended. When replacing the water pump, it is recommended to replace the cooling system components at the same time — including the thermostat, coolant hoses, and the oil cooler pipe connector (LR028136), which is a common failure item when servicing the cooling system . Refill with OEM-specified coolant at the correct mixture ratio and bleed the cooling system thoroughly.

Why Choose Us

Contact us for bulk orders or VIN‑checked quotes.

Specifications subject to change; images for reference only.Aftermarket replacement – not affiliated with Jaguar Land Rover.
