Womala Windshield washer pump LR013951 for Land Rover 2010 2020

Product Overview

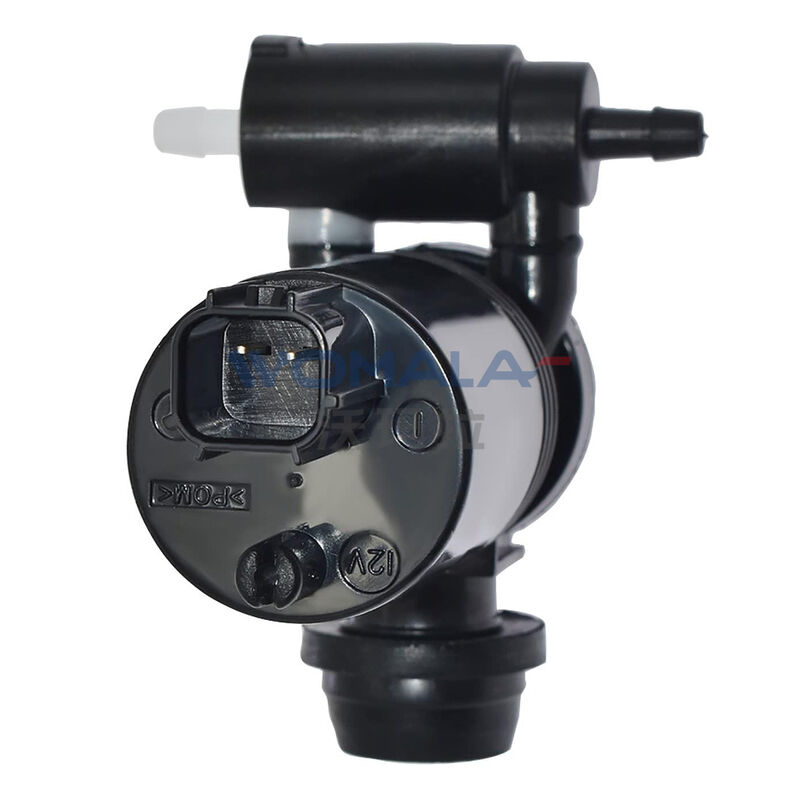

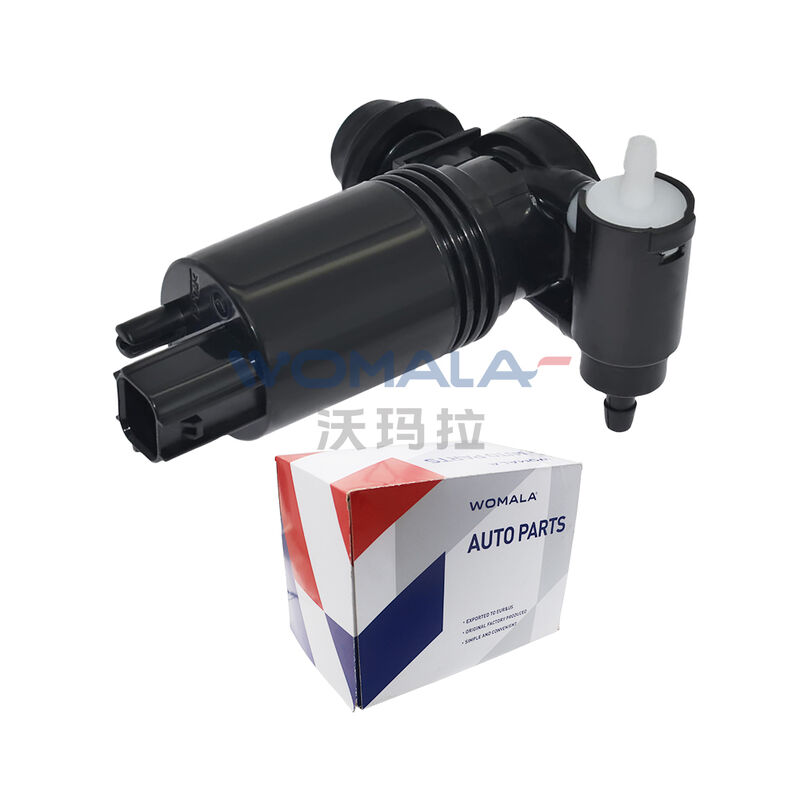

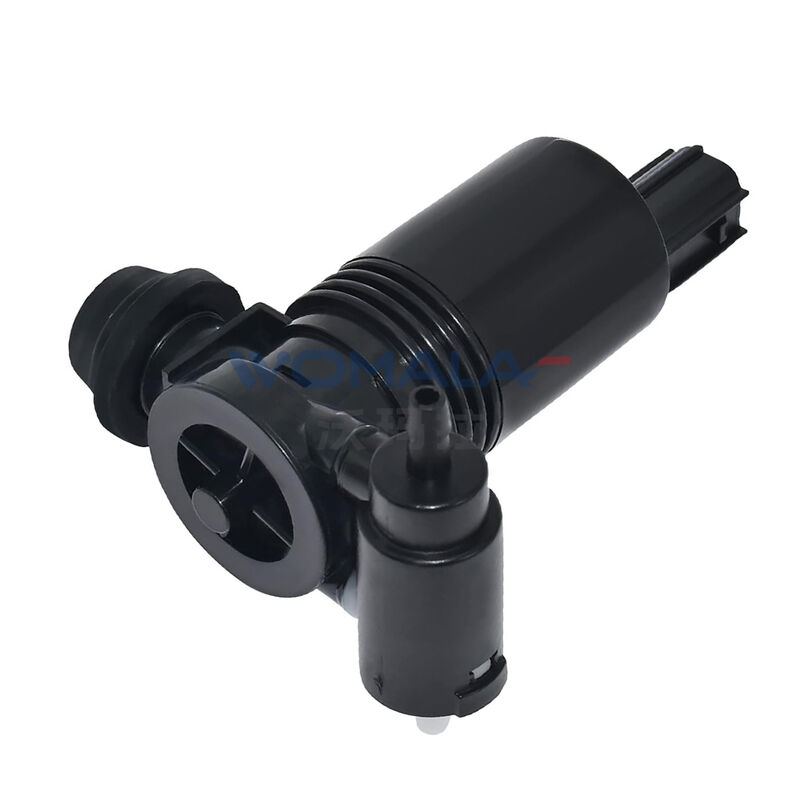

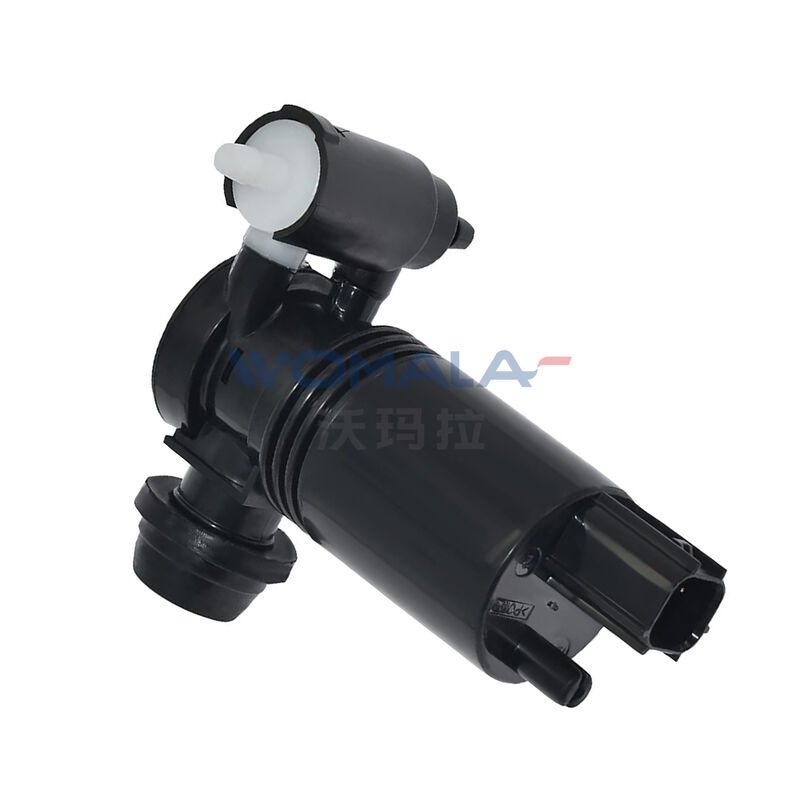

The Windscreen Washer Pump LR013951 is a genuine OE-grade electric washer pump engineered for a wide range of for Land Rover vehicles. This dual-outlet pump supplies washer fluid to both the front windscreen and rear screen circuits from a single motor, restoring reliable cleaning performance for the windscreen and rear window .

The pump is fitted to the washer reservoir and is used on vehicles with a rear wiper . It is a common replacement item on Discovery, Range Rover, and Evoque platforms where the original pump fails or becomes clogged .

Key Features

• Dual-outlet design – feeds both front windscreen and rear screen washer circuits from one motor

• 12V electric operation – reliable performance in all conditions

• OE-grade quality – available as Genuine Land Rover and quality aftermarket alternatives (Febi Bilstein, Japanparts, CASCO, Sando, Blue Print)

• Direct-fit replacement – seats into the washer reservoir grommet; simple DIY installation

• For vehicles with rear wiper – designed for the rear wash system

OE Cross-Reference

Aftermarket equivalents: Febi Bilstein 109266  · Japanparts WP-L01  · CASCO CWP82003AS  · Sando SWP82003.0  · Blue Print ADJ130305

Technical Specifications

Vehicle Fitment

⚠️ Important: This pump is for vehicles with a rear wiper. Confirm your vehicle's washer configuration before ordering. Fitment varies by model year and production date — verify with your VIN.

Signs of Failure

• No washer fluid spray – no fluid reaches the windscreen or rear window

• Weak or inconsistent spray – low pressure or intermittent operation

• Washer fluid leaks – visible fluid around the reservoir or pump area

• Strange noises – unusual sounds from the pump when activated

💡 The washer pump is a common failure item on these platforms. If no fluid comes out when you activate the washer switch, the pump may have failed. Check the tubes for cracks and the nozzles for clogging first .

Critical – Verify Your VIN Before Ordering

Washer pumps are configuration-specific. Confirm your vehicle has a rear wiper before ordering . Provide your VIN – our team confirms exact compatibility before dispatch. We cannot accept returns for misordered parts without VIN verification.

💡 Installation Tip: Professional installation recommended. Drain the reservoir slightly, disconnect the wiring and hoses, and ease the old pump out of the reservoir grommet. Press the new pump in and reconnect both front and rear feeds to the correct outlets. This is a straightforward DIY replacement for most owners.

Why Choose Us

Contact us for bulk orders or VIN‑checked quotes.

Specifications subject to change; images for reference only.Aftermarket replacement – not affiliated with Jaguar Land Rover.
