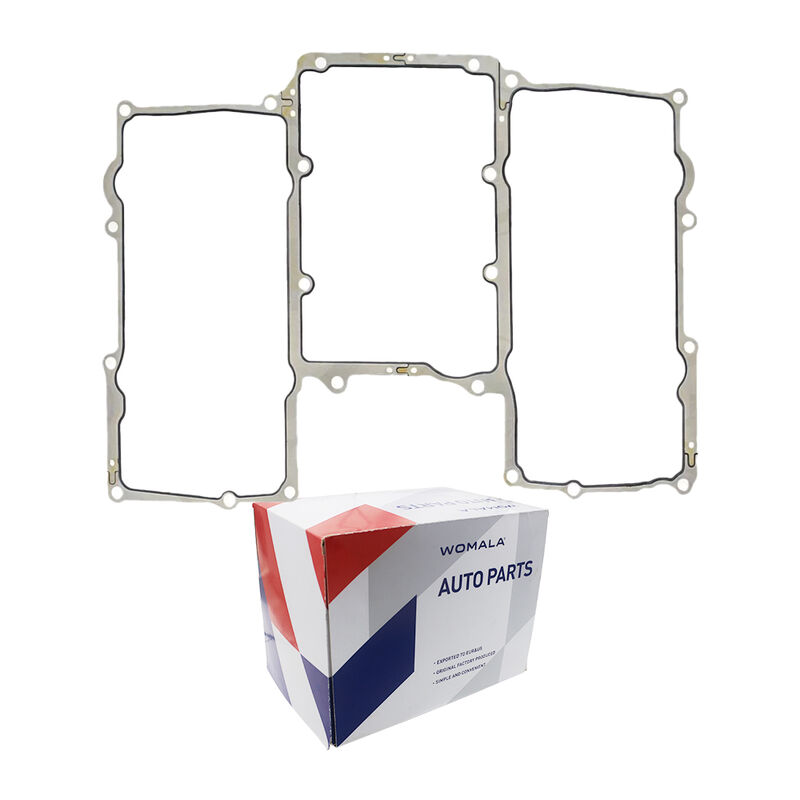

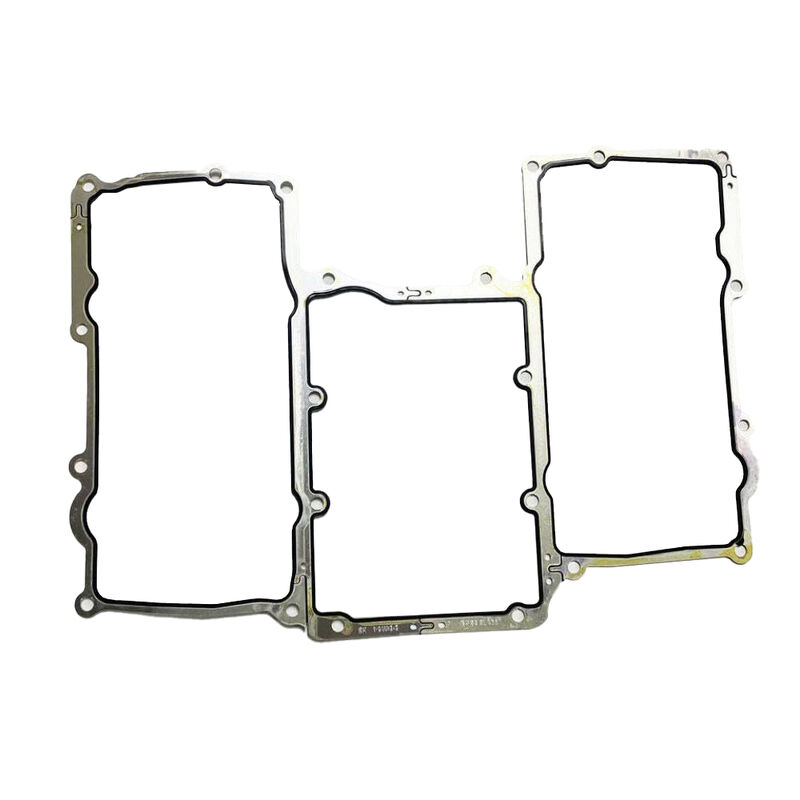

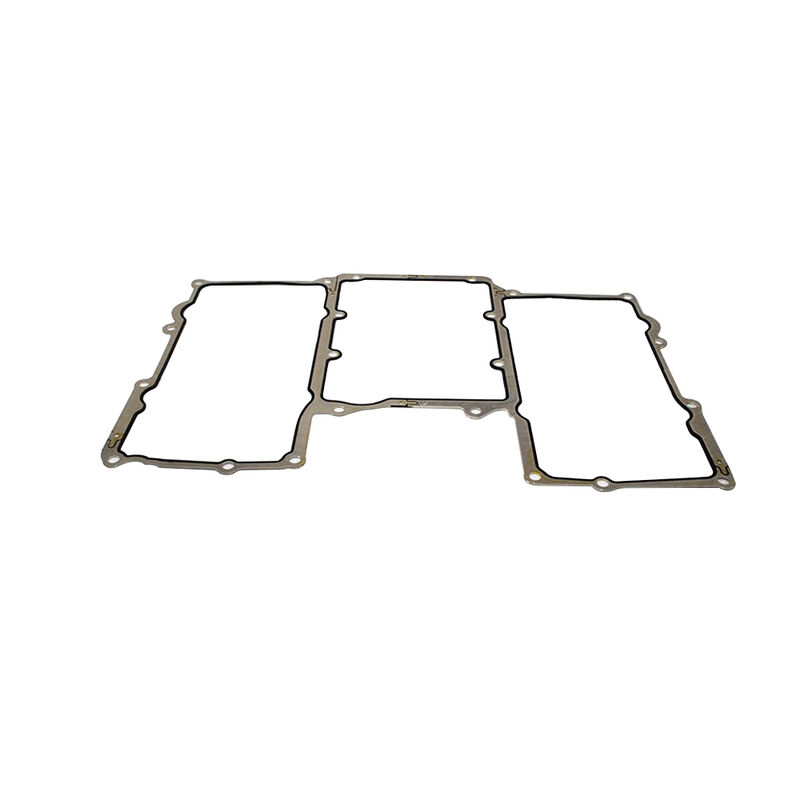

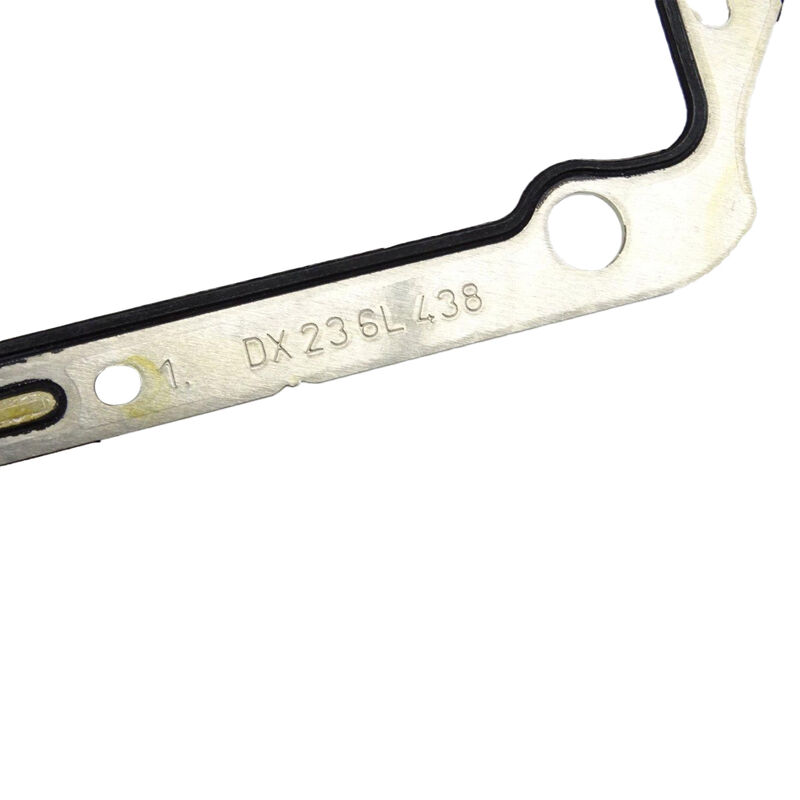

Womala Intake manifold gasket LR041680 for Land Rover Range Rover

Product Overview

The Intake Manifold Upper Gasket LR041680 (Jaguar equivalent C2Z17248) is a Genuine OE-grade sealing component engineered for the 3.0L V6 supercharged petrol engine (AJ126) in select for Land Rover and for Jaguar vehicles. This gasket seals the joint between the upper and lower sections of the two-piece intake manifold, maintaining an airtight seal in the intake air path .C2Z17248 is the Jaguar equivalent part number for the same gasket .

⚠️ Important: This is the upper intake manifold gasket. It is not interchangeable with the lower manifold gasket (LR041681). Confirm the position before ordering.

Key Features

• Airtight intake seal – prevents unmetered air from entering the intake path at the upper manifold joint

• Metal-elastomer construction – durable gasket design for high-temperature, boosted engine conditions

• Single-use design – must be renewed whenever the intake manifold is separated; reusing an old gasket risks a poor seal and rough running

• OE-grade quality – available as Genuine Land Rover, Genuine Jaguar, Elring, and other quality alternatives

OE Cross-Reference

Technical Specifications

Land Rover Applications

Jaguar Applications (C2Z17248)

⚠️ Important: This gasket is confirmed for the 3.0L V6 supercharged petrol engine (AJ126) — it is not compatible with the 5.0L V8, diesel, or 2.0L variants .

Signs of Failure

• Check engine light – air intake leak or airflow-related DTCs

• Rough idle or misfire – severe air intake leak causing rough running and engine misfire

• Loss of power – unmetered air disrupting the air-fuel mixture

• Oil residue around the manifold – PCV vapors migrating to a compromised gasket joint

💡 The intake manifold gasket can degrade over time due to heat, vibration, and oil exposure. It is common practice to replace this gasket any time the intake manifold is removed from the engine. This is especially important on supercharged engines that see positive manifold pressures above atmospheric .

Critical – Verify Your VIN Before Ordering

Intake manifold gaskets are position-specific (upper vs. lower). This is the upper gasket — the lower counterpart is LR041681. Provide your VIN – our team confirms exact compatibility before dispatch. We cannot accept returns for misordered parts without VIN verification.

💡 Installation Tip: Professional installation recommended. Replace this gasket whenever the intake manifold is separated — it is a single-use seal and reusing it risks air leaks and rough running . Clean all sealing surfaces thoroughly before installation.
