Womala Thermostat Assembly Oe LR069809 for Land Rover Range Rover Sport Discovery 3 Discovery 4 3.0L V6

Product Overview

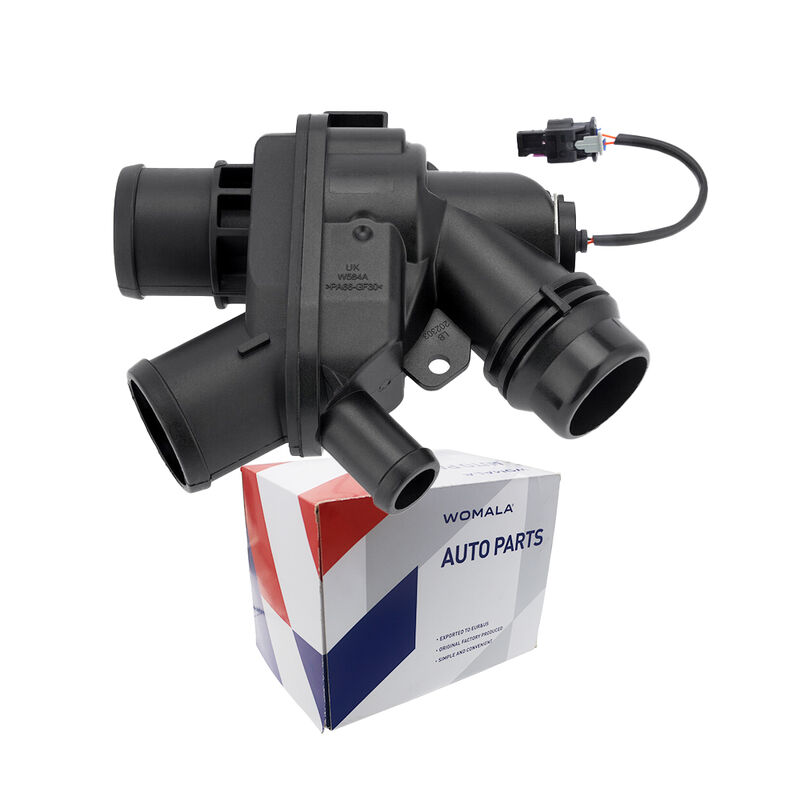

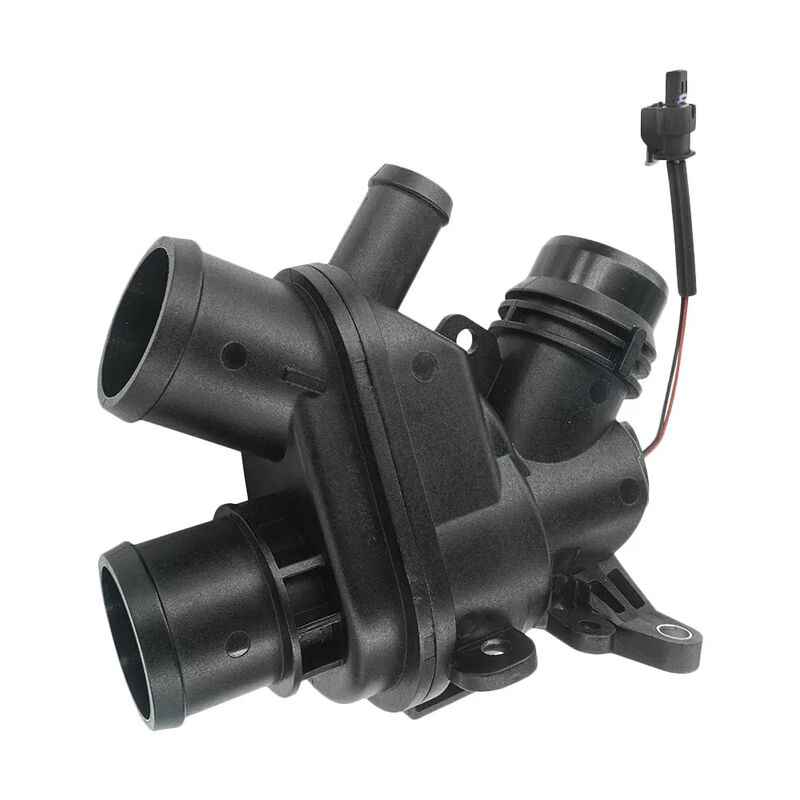

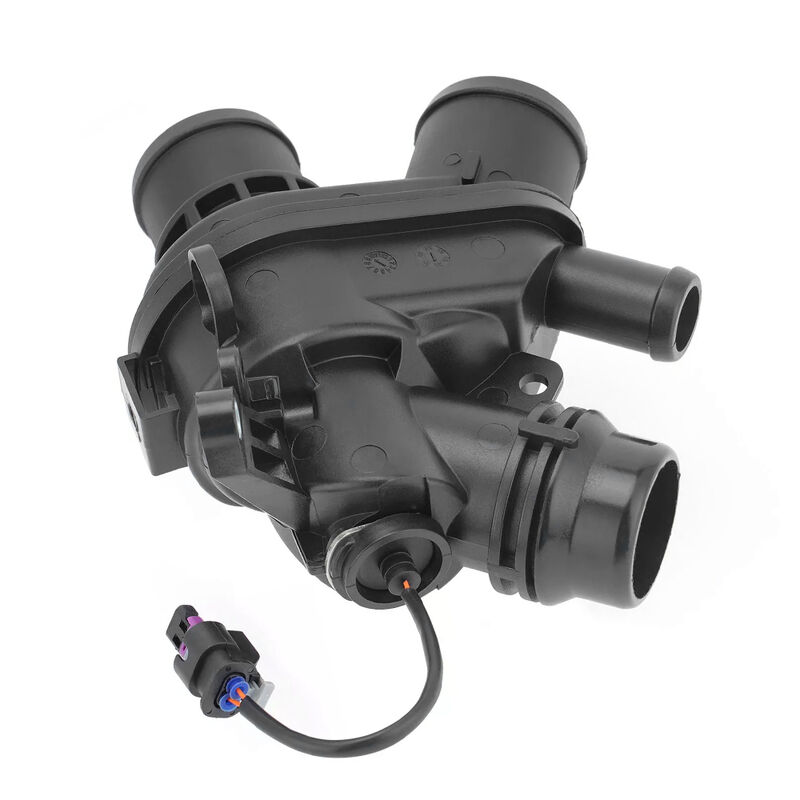

The Thermostat Unit LR069809 is a Genuine OE-grade engine cooling component engineered for 3.0L V6 supercharged petrol engines (AJ126) in select for Land Rover and for Jaguar vehicles. This complete assembly integrates the thermostat, housing, and integrated temperature sensor into a single unit, regulating coolant flow to maintain optimal engine operating temperature.LR117568 is the current replacement part number, with a supersession path of LR062498 → LR069809 → LR095895 → LR117568.

⚠️ Important: This thermostat unit is specifically for the 3.0L V6 supercharged petrol engine (AJ126) — it is not compatible with diesel or other engine variants. An upgraded aluminium version is available, replacing the failure-prone factory plastic housing for enhanced durability.

Key Features

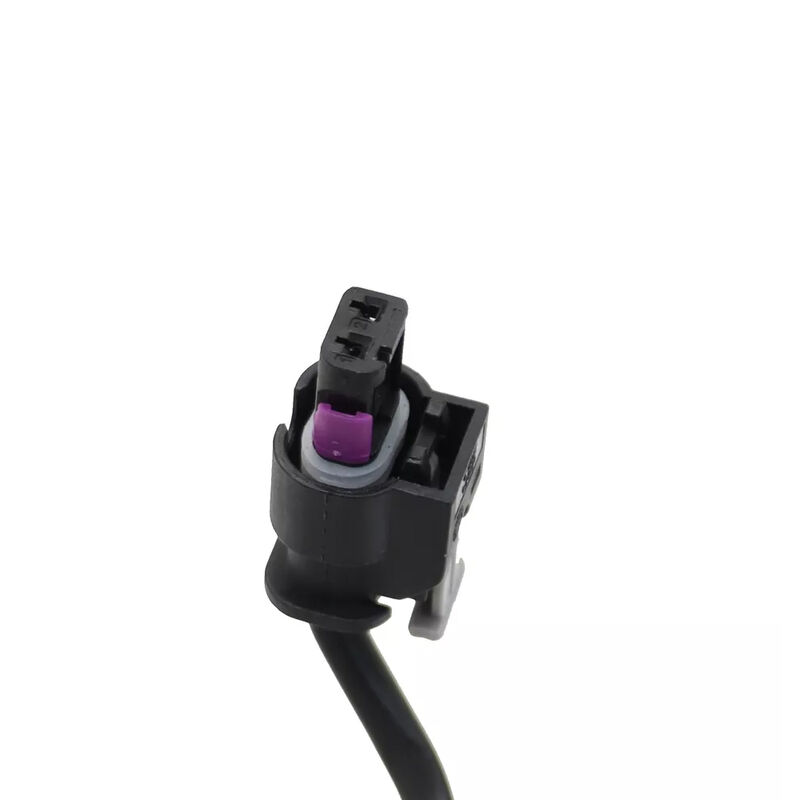

• Complete assembly with sensor — includes thermostat, housing, and integrated temperature sensor

• Upgraded aluminium option available — replaces factory plastic that is prone to cracking and warping under heat and pressure

• OE-grade quality — available as Genuine Land Rover, Wahler, Britpart, and other quality alternatives

• Direct-fit replacement — matches factory mounting points and coolant hose connections

OE Cross-Reference

Aftermarket equivalents: Wahler 412482.94 · Britpart LR117568BP · Rein CTU0049 (metal upgrade) · Rein CTU0082 (metal upgrade)

💡 Supersession Note: LR117568 is the current replacement part. All listed numbers refer to the same thermostat unit for 3.0L V6 supercharged petrol applications.

Technical Specifications

Land Rover Applications

Jaguar Applications

⚠️ Important: This thermostat unit is confirmed for the 3.0L V6 supercharged petrol engine (AJ126) in the models listed above. Confirm your engine type and VIN before ordering.

Signs of Failure

• Engine overheating — thermostat stuck closed, restricting coolant flow

• Engine running too cool — thermostat stuck open, preventing proper warm-up

• Coolant leaks — visible drips from the thermostat housing area

• Erratic temperature changes — unstable temperature gauge readings

• Poor fuel economy — engine running below optimal temperature

💡 Known Failure Issue: The factory plastic thermostat housing on the AJ126 engine is a documented high-failure component. The plastic housing is prone to cracking, warping, and premature failure under heat and pressure. If not addressed promptly, coolant loss can cause catastrophic engine damage including warped cylinder heads and blown head gaskets. Upgraded aluminium versions are strongly recommended for enhanced durability and to prevent repeat failure.

Critical – Verify Your VIN Before Ordering

Thermostat units are VIN-, engine-, and model-year-specific. Provide your VIN – our team confirms exact compatibility before dispatch. We cannot accept returns for misordered parts without VIN verification.

💡 Installation Tip: Professional installation recommended. When replacing the thermostat, inspect all cooling system hoses and connections for wear. It is recommended to replace the water pump and oil cooler connector at the same time for a complete cooling system service. Refill with OEM-specified coolant at the correct mixture ratio and bleed the cooling system thoroughly to remove air pockets. Consider upgrading to the aluminium version for enhanced durability and to prevent repeat failure.

Why Choose Us

Contact us for bulk orders or VIN‑checked quotes.

Specifications subject to change; images for reference only.Aftermarket replacement – not affiliated with Jaguar Land Rover.
