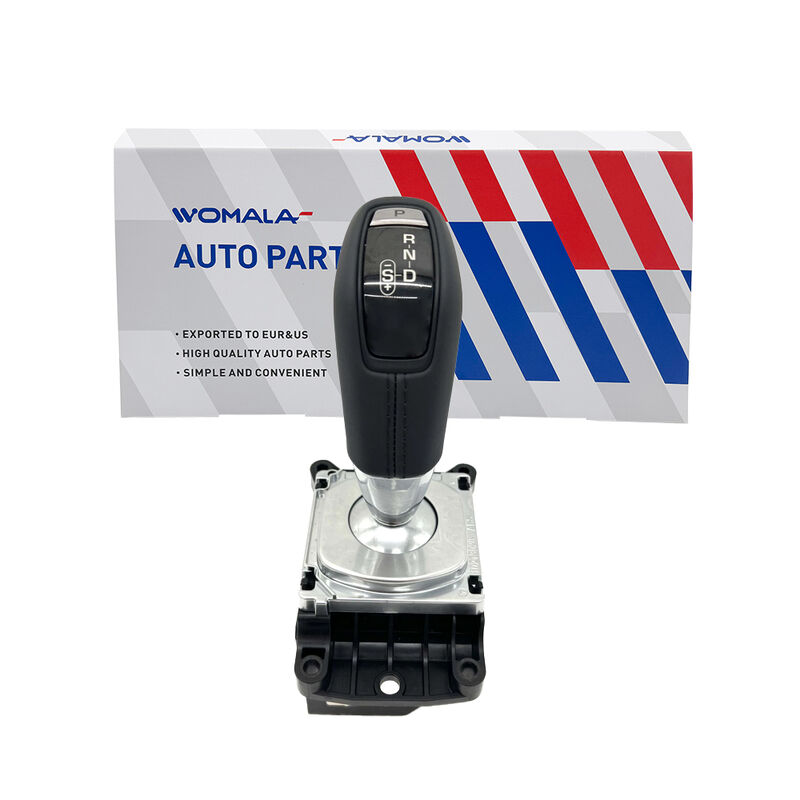

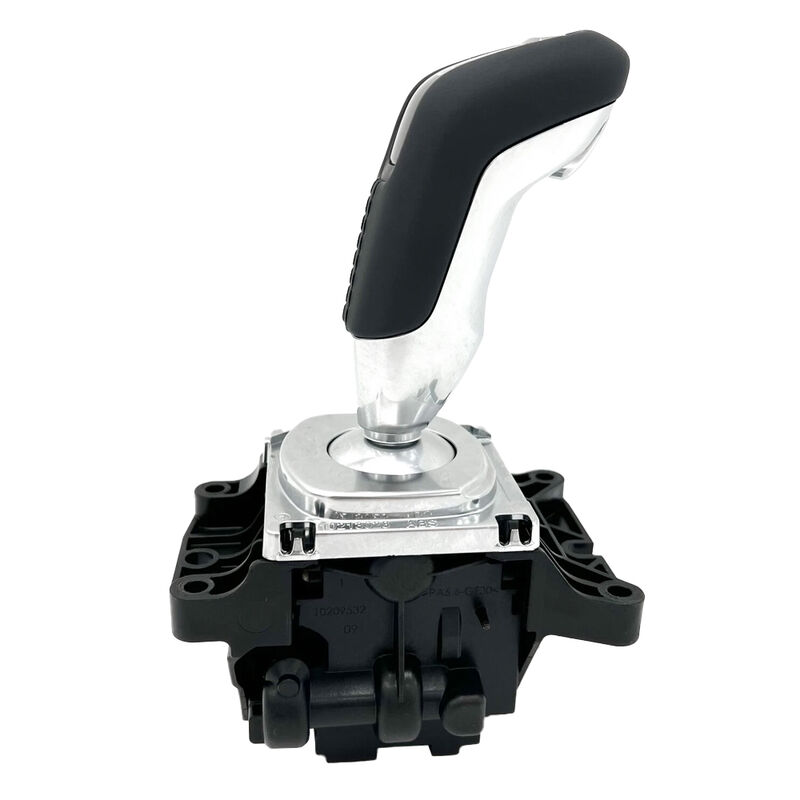

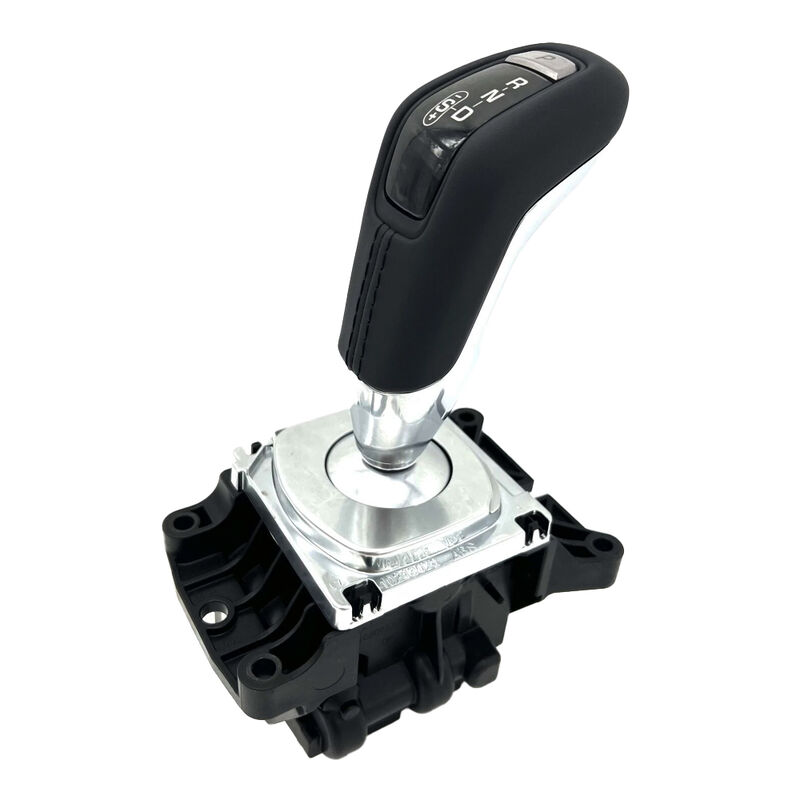

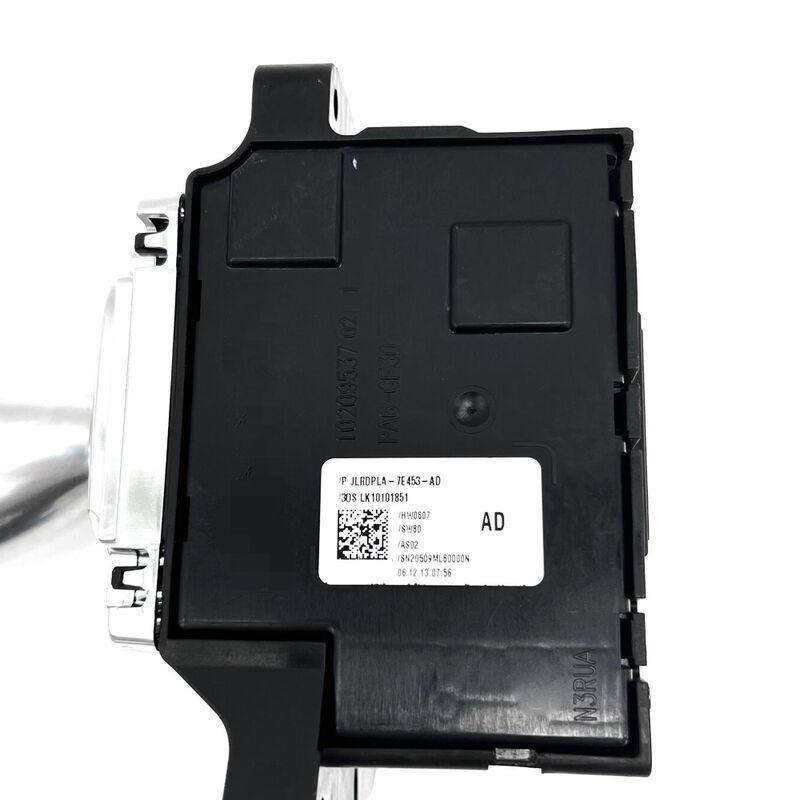

Womala Shift Gear Control Module LR077066 for Land Rover Range Rover Sport

Product Overview

The Gear Shift Assembly LR077066 is a Genuine OE-grade electronic component engineered for the for Land Rover Range Rover Sport (L494) from 2014 onwards. Also known as a transfer shift control module or rotary gear selector assembly, this component controls the operation of the transfer case and communicates with the transmission control module for accurate gear engagement . It has been superseded by LR108936, which is the current replacement part for most applications .

Key Features

• Electronic rotary gear selector – communicates with the TCM for precise gear engagement

• Transfer shift control module – controls engagement and disengagement of the transfer case, including 2WD/4WD selection

• OE-grade quality – Genuine Land Rover specification

• Direct-fit replacement – plug-and-play compatibility with factory connectors

• Supersession update – LR108936 replaces LR041971, LR061347, LR077066, and LR096395

OE Cross-Reference

Additional references: LR099206 (related module), LR022943 (lever)

💡 Supersession Note: LR108936 is the current replacement part, superseding LR077066 and earlier numbers .

Vehicle Fitment

Engine compatibility (verify with VIN):

• 2.0L Turbo Petrol (GTDI / AJ200P)

• 3.0L V6 Supercharged Petrol

• 3.0L V6 / I6 Diesel

• 4.4L V8 Diesel

• 5.0L V8 Supercharged Petrol (incl. SVR)

⚠️ Important: This assembly fits the ZF 8HP 8-speed automatic transmission and is compatible with models up to VIN GA999999 for certain variants . For 2018+ models, verify compatibility with your VIN.

Signs of Failure

• Gear selector does not engage – shifter unresponsive or fails to select gears

• Transfer case warning light – illuminated on the dashboard

• Shifting issues – delayed or erratic gear changes

• Unable to select 2WD/4WD – transfer case does not shift properly

💡 A faulty gear shift assembly or transfer shift control module can prevent proper 4WD operation and affect vehicle safety .

Critical – Verify Your VIN Before Ordering

Gear shift assemblies are VIN‑ and model‑year‑specific. LR108936 supersedes LR077066 for most applications . Provide your VIN – our team confirms exact compatibility before dispatch. We cannot accept returns for misordered parts without VIN verification.

💡 Installation Tip: Professional installation recommended. After replacement, adaptation or calibration may be required using diagnostic equipment . Check all connectors and wiring during installation.

Technical Specifications

Why Choose Us

Contact us for bulk orders or VIN‑checked quotes.

Specifications subject to change; images for reference only.Aftermarket replacement – not affiliated with Jaguar Land Rover.
