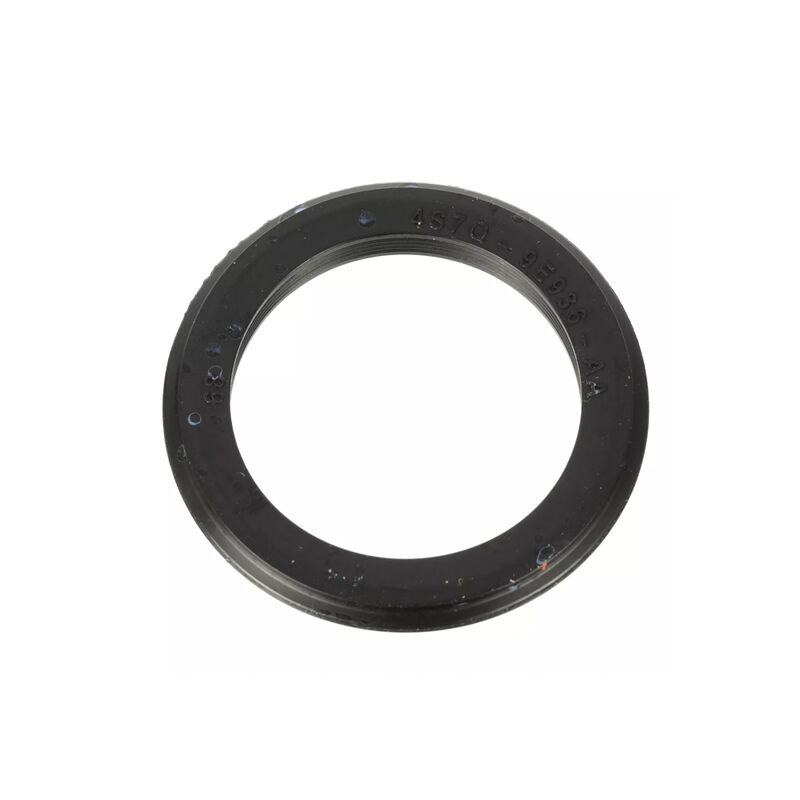

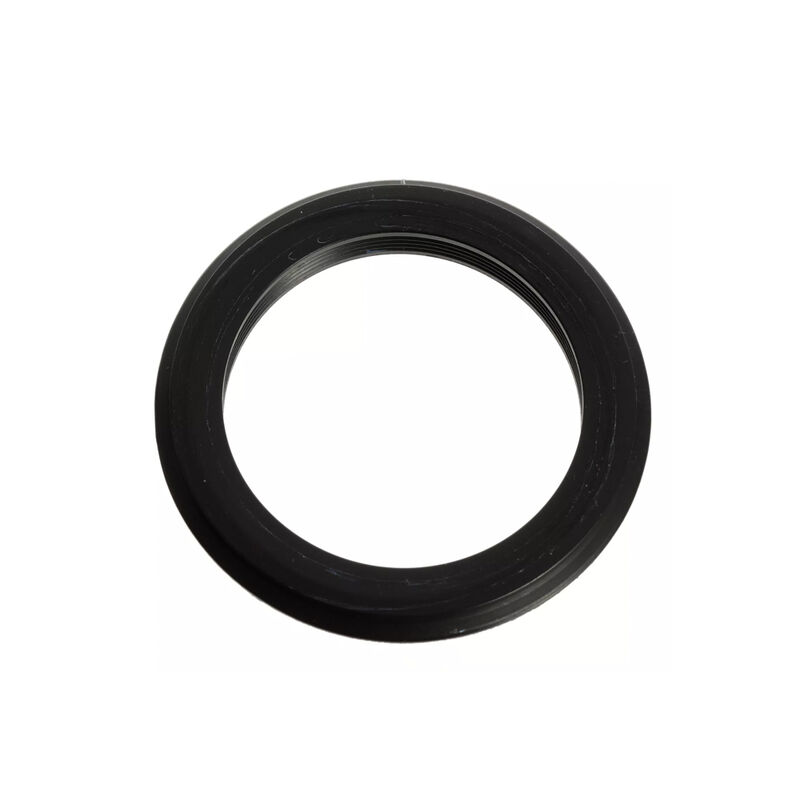

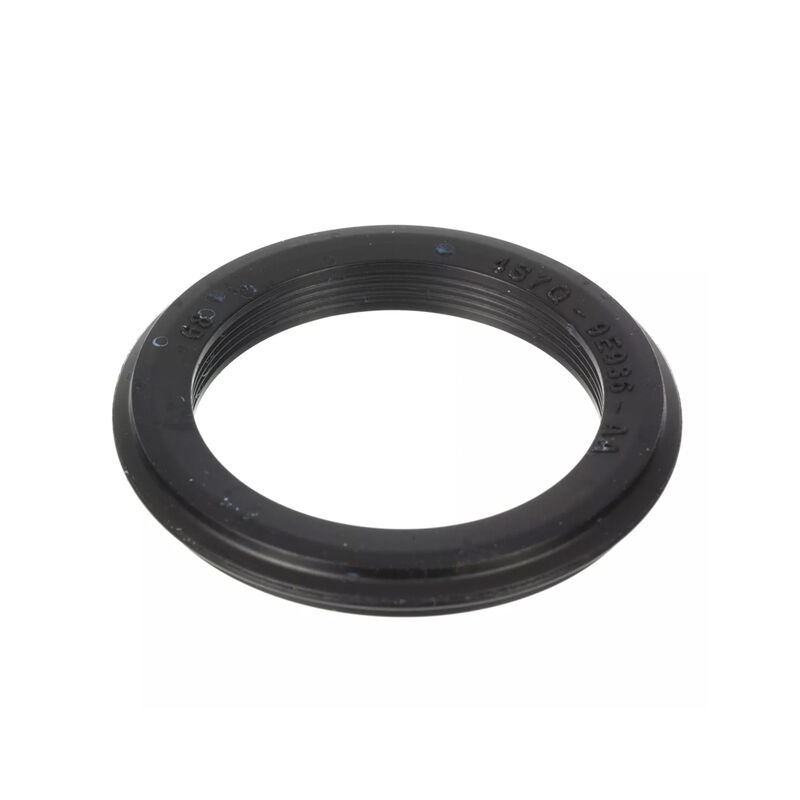

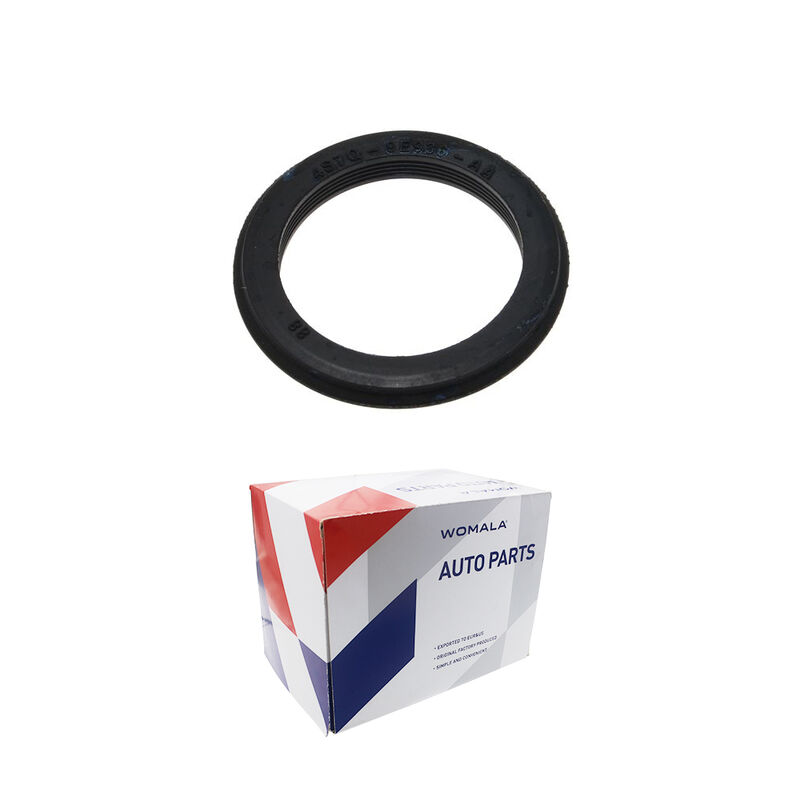

Womala Throttle Body Seals Kits 1316152 for Range Rover Sport

Product Overview

The Throttle Body Gasket 1316152 (Jaguar OE reference JD61643) is an OE-grade sealing component engineered for the 2.7L TDV6 and 3.0L V6 diesel engines (276DT / 306DT) in select for Land Rover and for Jaguar vehicles. This gasket seals the rear interface of the throttle body housing where it mates with the adjoining intake ducting, preventing unmetered air from entering the intake tract and disrupting the air-fuel mixture. Two gaskets are required per throttle body housing – order two before starting any throttle body removal or intake cleaning job.

Key Features

• Airtight intake seal – prevents unmetered air leaks that cause rough idle, lean conditions, and fault codes

• OE-grade quality – available as genuine and quality aftermarket alternatives

• Direct-fit replacement – matches factory intake ducting interface

• Quantity required – 2 per throttle body housing

OE Cross-Reference

💡 Note: 1316152 is the rear throttle body housing seal. The front gasket is a separate part number (LR008353). Both are often replaced together during a throttle body service.

Technical Specifications

Vehicle Fitment

⚠️ Important: This gasket is specifically for V6 diesel engines – not for petrol or other engine variants. Two gaskets are required per throttle body housing.

Signs of Failure

• Rough idle – air leaks through a worn gasket create an erratic idle

• Engine misfire – extra air entering the intake manifold causes a lean air-fuel mixture

• Decreased engine power – improper air-to-fuel ratio disrupts combustion

• Increased fuel consumption – the engine compensates for extra air by injecting more fuel

• Check engine light – intake or mixture-related fault codes

💡 A leaking throttle body gasket lets unmetered air into the intake, which can upset the air-fuel balance and typically show as rough idle, reduced response, or a fault code.

Critical – Verify Your VIN Before Ordering

Throttle body gaskets are VIN‑ and engine‑specific. Confirm your engine is the V6 diesel before ordering – petrol variants use different gaskets. Provide your VIN – our team confirms exact compatibility before dispatch. We cannot accept returns for misordered parts without VIN verification.

💡 Installation Tip: Professional installation recommended. Two gaskets are required per throttle body housing – order accordingly. It is worth fitting both at the same time, since they sit at the same joint and age together. Clean all sealing surfaces thoroughly before installation.

Why Choose Us

Contact us for bulk orders or VIN‑checked quotes.

Specifications subject to change; images for reference only.Aftermarket replacement – not affiliated with Jaguar Land Rover.
