Womala Thermostat Housing Water Outlet LR110459 for Land Rover Range Rover Vogue

Product Overview

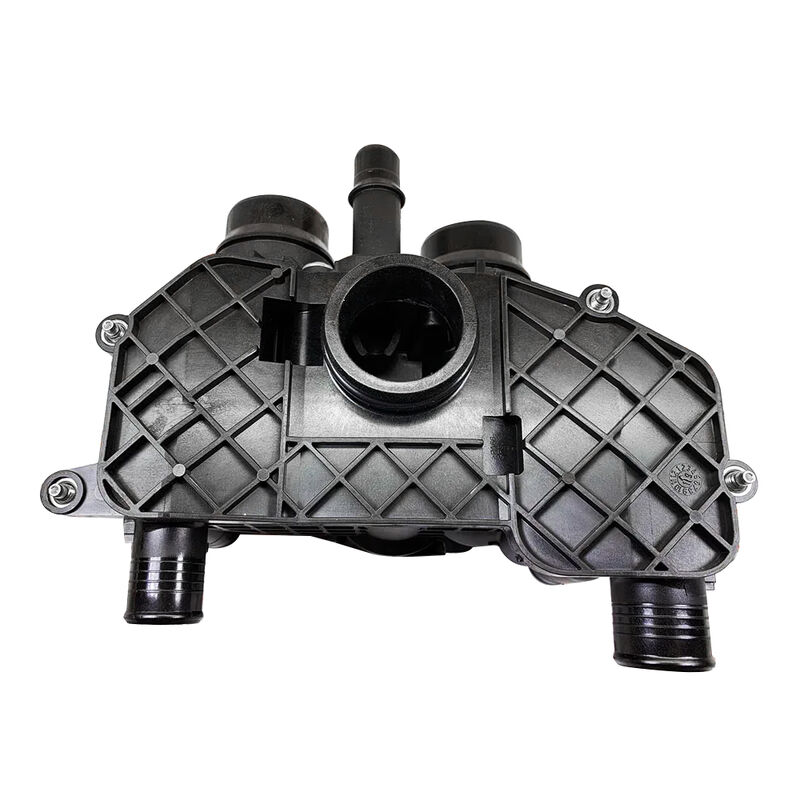

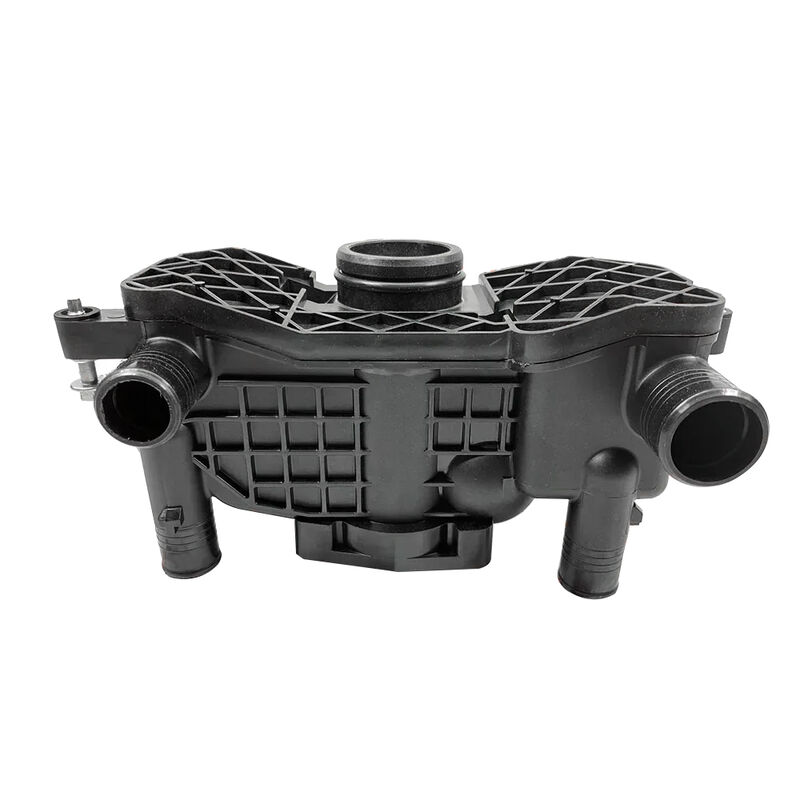

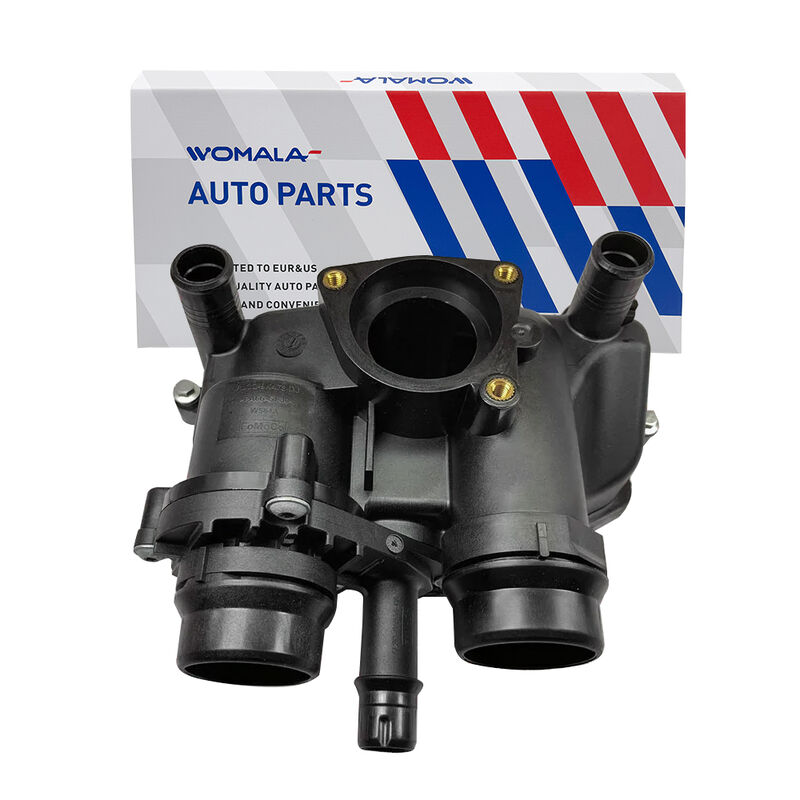

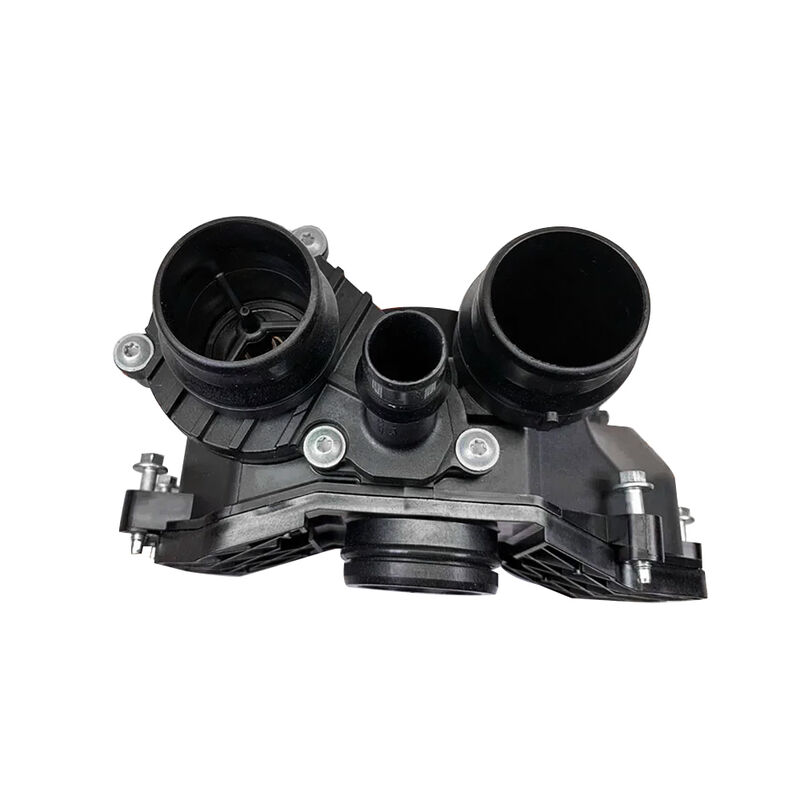

The Thermostat Housing / Lower Water Outlet LR110459 (also referenced as LR186860) is an OE-grade cooling system component engineered for the 4.4L TDV8 diesel engine in select for Land Rover vehicles. This housing bolts directly to the engine block and directs coolant from the cylinder block into the lower coolant hose, while also housing the thermostat itself. As the lower of the two water outlet connections on this engine, it plays a critical role in maintaining proper coolant flow and engine operating temperature.

⚠️ Important: This is the lower water outlet connection – it is not interchangeable with the upper connection on the same engine. Confirm which position you need before ordering.

Key Features

• Integrated thermostat housing – contains the thermostat within the lower outlet housing

• Directs coolant flow – routes coolant from the cylinder block to the lower coolant hose

• OE-grade quality – available as genuine and quality aftermarket alternatives

• Direct-fit replacement – bolts to the engine block at factory mounting points

OE Cross-Reference

💡 Note: LR186860 is listed as an alternative part number for the same lower water outlet / thermostat housing application.

Technical Specifications

Vehicle Fitment

Engine details (verify with VIN):

• 4.4L DOHC Diesel V8 DITC (448DT / SDV8)

• Power variants: 230kW (313PS) / 250kW (340PS)

⚠️ Important: This housing is specifically for the 4.4L TDV8 diesel engine – not for 3.0L V6 diesel, petrol, or other engine variants.

Signs of Failure

• Coolant pooling – visible coolant near the housing area

• Low coolant level – recurring need to top up the reservoir

• Temperature warning – engine temperature gauge reading above normal

• Cracked plastic housing – visible cracks or seam separation on the housing body

💡 Known Failure Pattern: The plastic housing on the 4.4L TDV8 engine is a known failure point – it commonly cracks or separates at the seam due to heat cycling and plastic degradation over time. This is a standard issue on higher-mileage examples (150k+ km).

Critical – Verify Your VIN Before Ordering

Thermostat housings are VIN‑, engine‑, and position‑specific. This is the LOWER outlet connection – it is not interchangeable with the upper connection. Provide your VIN – our team confirms exact compatibility before dispatch. We cannot accept returns for misordered parts without VIN verification.

💡 Installation Tip: Professional installation recommended. When replacing the lower thermostat housing, inspect the upper thermostat pipe and all sealing O-rings for wear – these are commonly renewed at the same time. Replace coolant with OEM-specified fluid at the correct mixture ratio after installation and bleed the cooling system thoroughly.

Why Choose Us

Contact us for bulk orders or VIN‑checked quotes.

Specifications subject to change; images for reference only.Aftermarket replacement – not affiliated with Jaguar Land Rover.
