Womala TDV8 Diesel Crankshaft Oil Seal LR029001 for Land Rover Range Rover Vogues

Product Overview

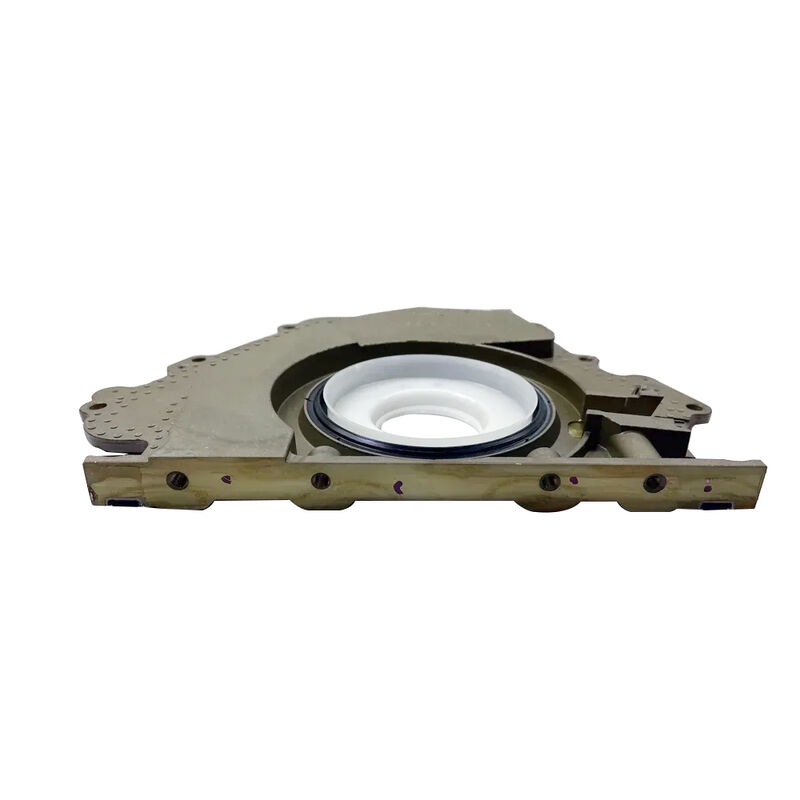

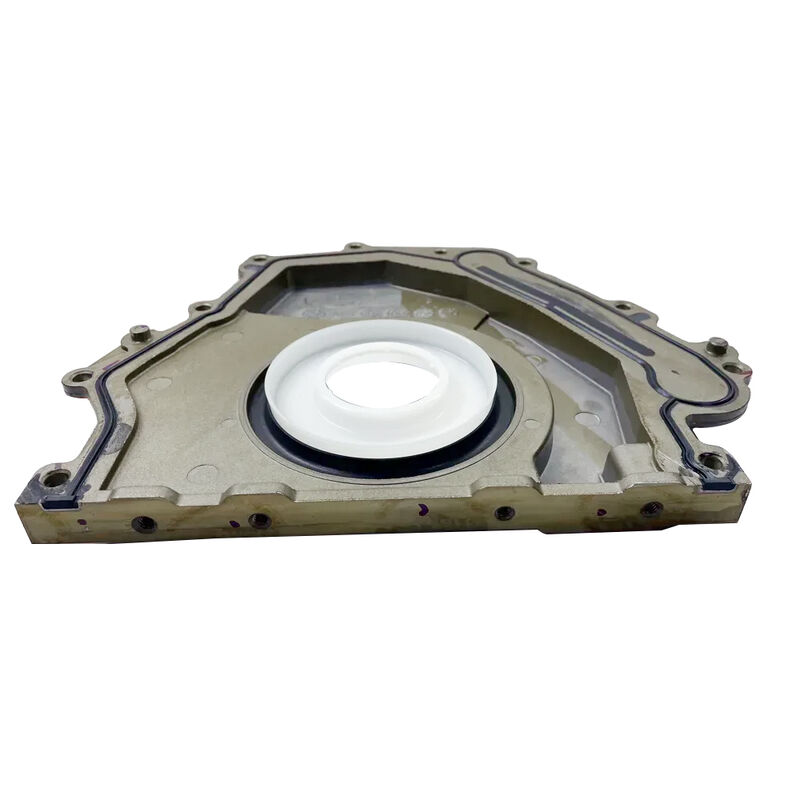

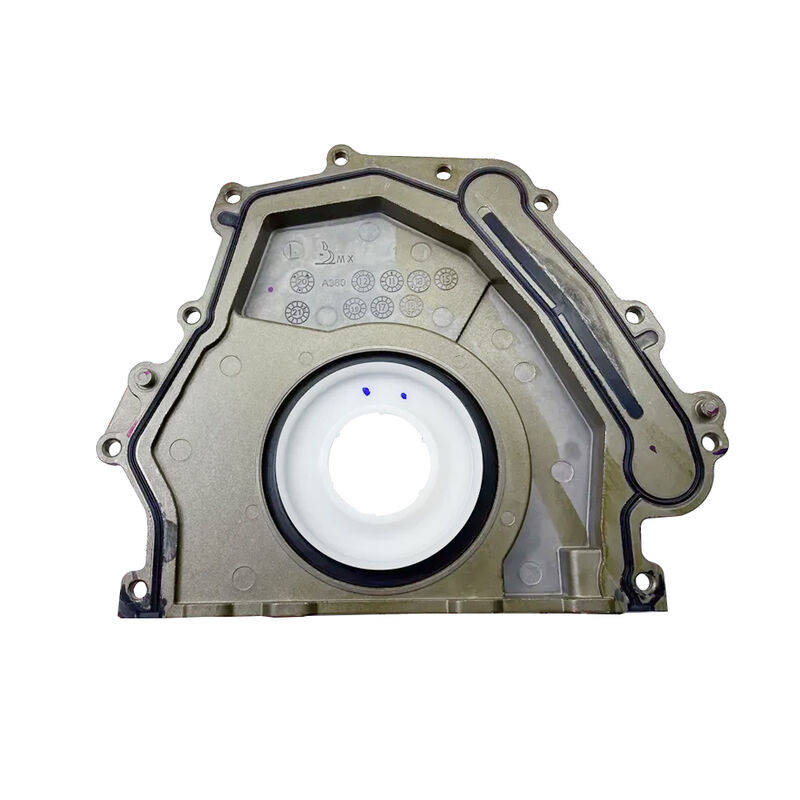

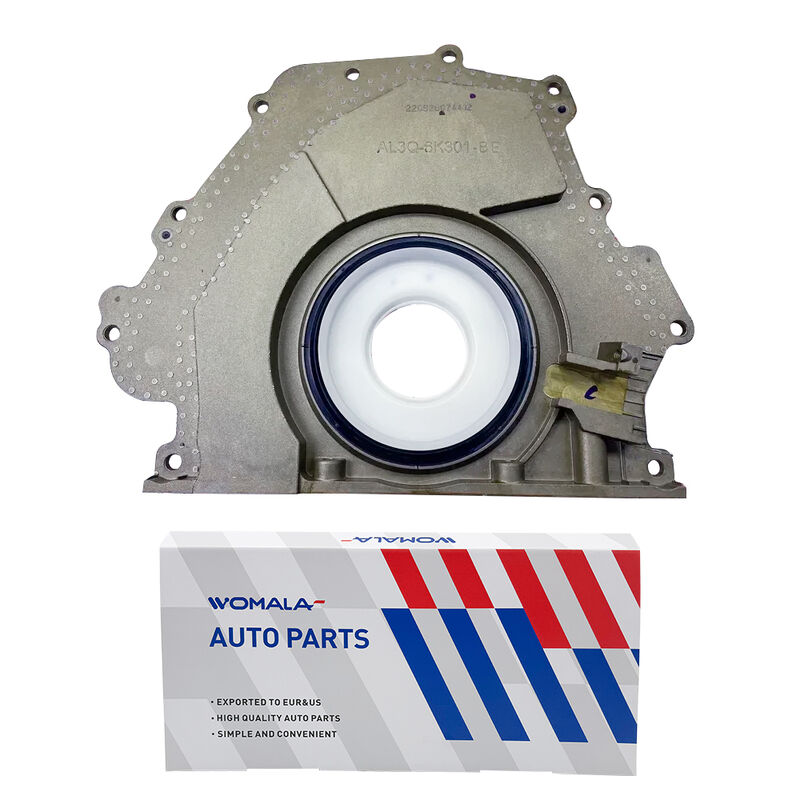

The Rear Crankshaft Oil Seal & Retainer LR029001 is an OE-grade engine sealing assembly engineered for the 4.4L TDV8 diesel engine in select for Land Rover vehicles. This component is supplied as a complete retainer and seal assembly — combining a metal retainer housing with the rubber sealing element, pre-assembled as a single unit . It mounts at the rear of the crankshaft where it exits the engine block, preventing engine oil from leaking into the bell housing area. LR022967 is the superseded/interchange part number for this assembly .

⚠️ Important: This is a rear crankshaft seal with retainer — not to be confused with the front crankshaft seal (1102415) used on the same engine family .

Key Features

• Complete retainer and seal assembly – integrated metal housing with pre-fitted rubber seal, ready to install

• Prevents oil leakage – seals the rear crankshaft exit point from the engine block

• OE-grade quality – available as genuine Land Rover, Corteco, and other OE-quality alternatives

• Direct-fit replacement – matches factory crankshaft and engine block dimensions

OE Cross-Reference

💡 Supersession Path: LR022967 → LR029001

Technical Specifications

Vehicle Fitment

⚠️ Important: This seal assembly is specifically for the 4.4L TDV8 diesel engine — not for 3.0L V6 diesel, petrol, or other engine variants.

Signs of Failure

• Oil leak at rear of engine – visible oil at the bell housing area

• Reduced oil pressure – oil loss affecting lubrication system

• Increased oil consumption – recurring need to top up engine oil

• Blue smoke from exhaust – oil entering combustion chambers

• Engine overheating – secondary to oil loss and reduced lubrication

💡 A failing rear crankshaft seal can lead to progressive oil loss and engine damage if left unaddressed. Early diagnosis is recommended .

Critical – Verify Your VIN Before Ordering

Crankshaft seals are VIN-, engine-, and position-specific. This is the rear seal with retainer for the 4.4L TDV8 diesel engine. Provide your VIN – our team confirms exact compatibility before dispatch. We cannot accept returns for misordered parts without VIN verification.

💡 Installation Tip: Professional installation required – transmission removal is necessary to access the rear crankshaft seal. The complete retainer-and-seal assembly is designed for direct replacement. Ensure the retainer is properly seated and torqued to manufacturer specifications.

Why Choose Us

Contact us for bulk orders or VIN‑checked quotes.

Specifications subject to change; images for reference only.Aftermarket replacement – not affiliated with Jaguar Land Rover.
