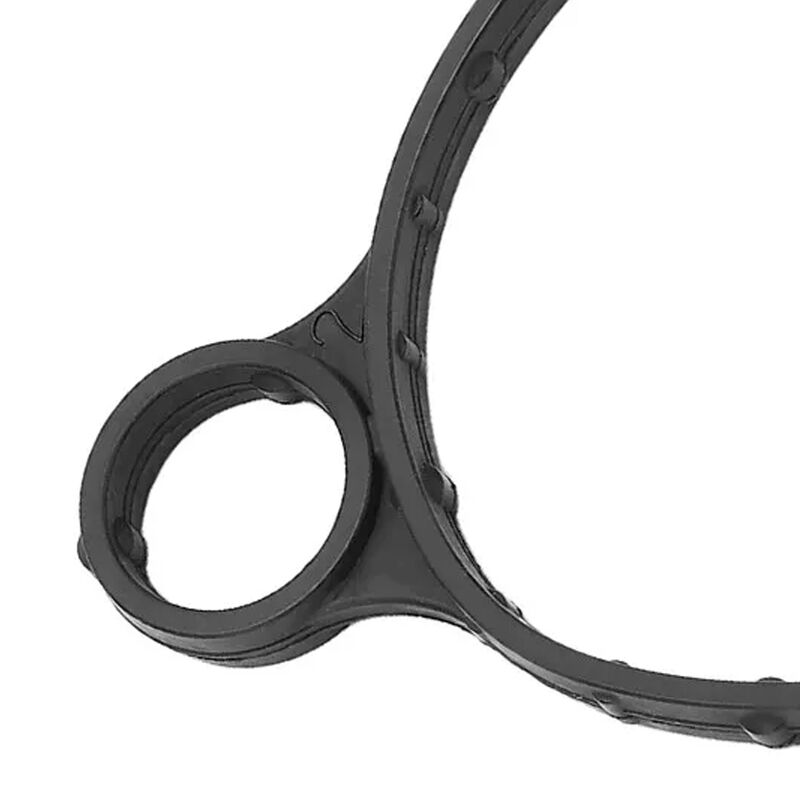

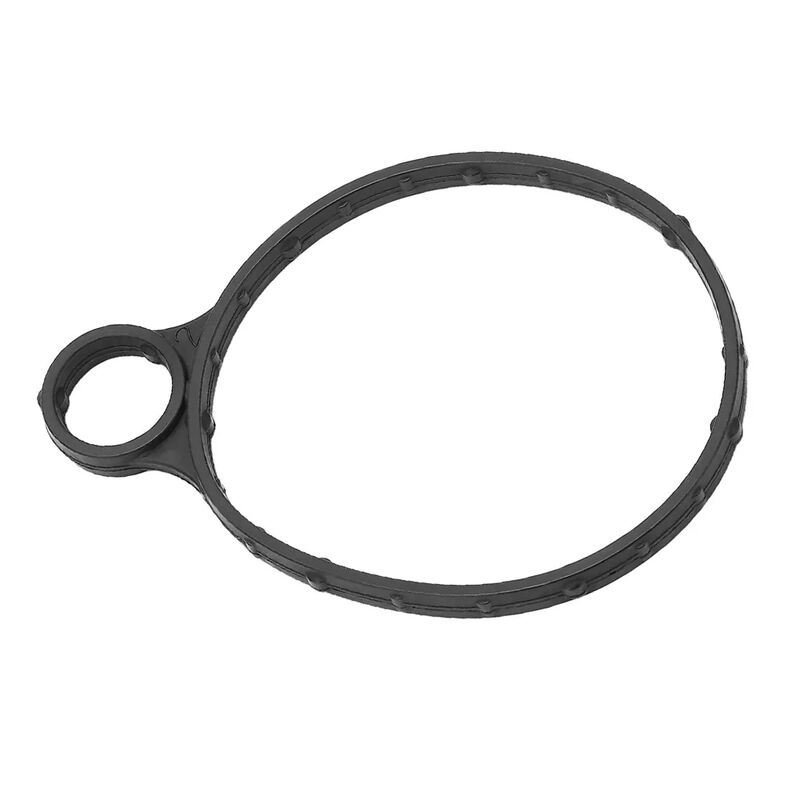

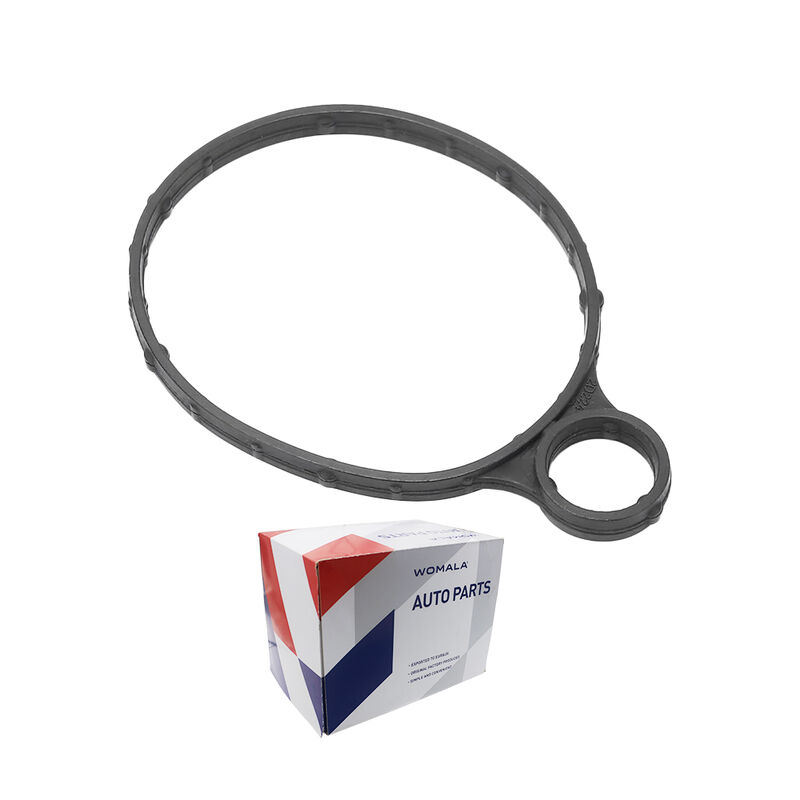

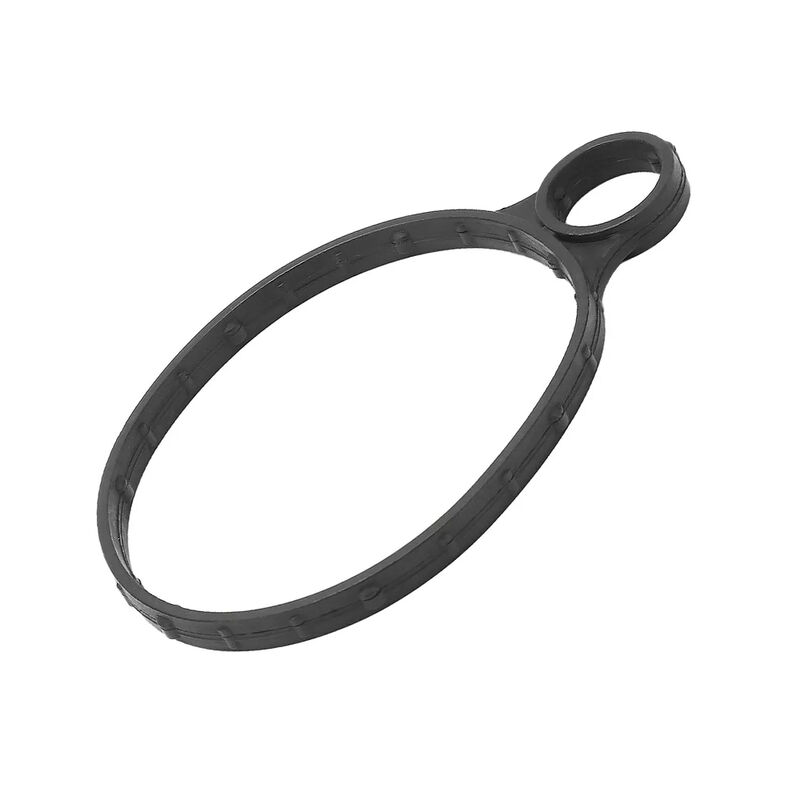

Womala Vacuum Pump Seal Oe LR039593 for Range Rover Discover Sport 2.0L

Product Overview

The Vacuum Pump Gasket LR039593 is an OE-grade sealing component engineered for 2.0L turbocharged petrol engines in select for Land Rover and for Jaguar vehicles. This gasket seals the joint between the vacuum pump and the engine block, preventing oil and vacuum leakage at the pump mounting face. It maintains the vacuum supply used by the brake servo and other vacuum-operated systems. A failed seal can cause reduced braking assistance, oil leaks, and check engine light illumination.

LR025602 is the original part number; LR039593 is the current supersession. JDE28250 and C2D40544 are Jaguar equivalent references for the same gasket.

Key Features

• Prevents oil and vacuum leakage – seals the vacuum pump mounting face to maintain proper vacuum supply

• Critical for brake servo operation – a vacuum leak here can weaken brake assistance

• OE-grade quality – available as Genuine Land Rover and quality alternatives (Elring Klinger, Ajusa)

• Direct-fit replacement – matches factory pump mounting surface

• Single-use gasket – must be renewed whenever the vacuum pump is removed, as a used seal may not reseal properly

OE Cross-Reference

💡 Supersession Note: LR039593 replaces LR025602. JDE28250 and C2D40544 are Jaguar equivalents for the same vacuum pump gasket.

Technical Specifications

Land Rover Applications

Jaguar Applications

Engine details (verify with VIN):

• 2.0L 16V TIVCT T/C 240PS Petrol (GTDI / EcoBoost)

• 2.0L I4 High DOHC AJ200 Petrol

⚠️ Important: This gasket is specifically for 2.0L turbocharged petrol engines – not for diesel or 3.0L/5.0L variants. Confirm your engine type before ordering.

Signs of Failure

• Reduced braking performance – weakened brake servo assistance due to vacuum loss

• Oil leaks – visible oil at the vacuum pump mounting area

• Poor engine performance – vacuum-operated systems not functioning correctly

• Check engine light – vacuum or emissions-related DTCs

💡 A failed vacuum pump seal can cause a variety of problems, including reduced braking performance, poor engine performance, increased emissions, and illuminated check engine light.

Critical – Verify Your VIN Before Ordering

Vacuum pump gaskets are VIN- and engine-specific. This gasket is single-use – always renew it whenever the vacuum pump is removed. Provide your VIN – our team confirms exact compatibility before dispatch. We cannot accept returns for misordered parts without VIN verification.

💡 Installation Tip: Professional installation recommended. Clean the pump mounting face and engine block surface thoroughly before fitting the new gasket. Inspect the vacuum pump for wear or damage during replacement. A vacuum leak here can weaken brake servo assistance, so fitting a fresh seal on refit is standard practice.

Why Choose Us

Contact us for bulk orders or VIN‑checked quotes.

Specifications subject to change; images for reference only.Aftermarket replacement – not affiliated with Jaguar Land Rover.
