Womala Manifold OE LR109402 for Land Rover Range Rover 2013

Product Overview

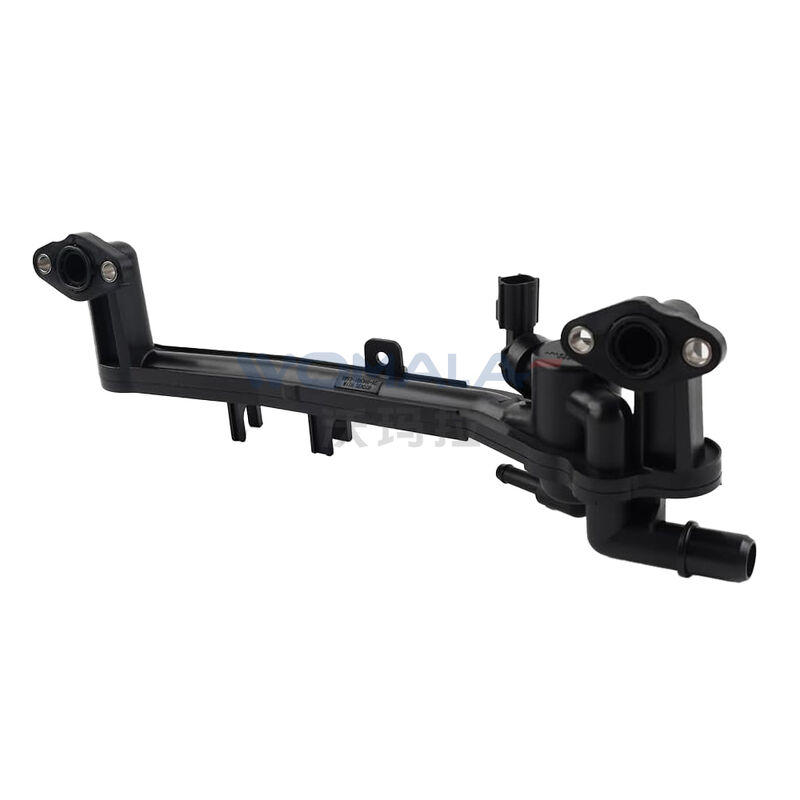

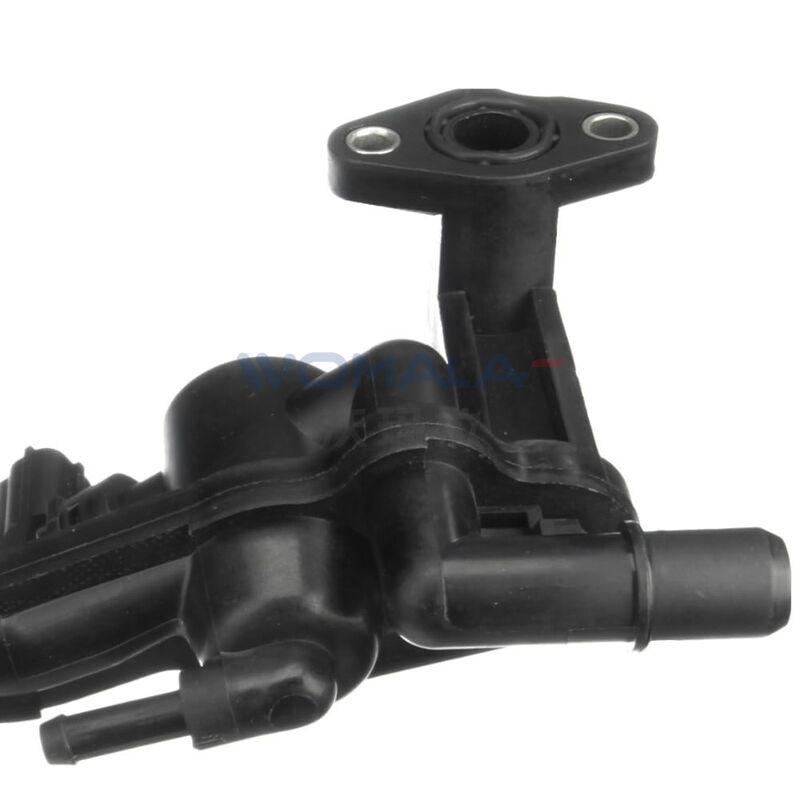

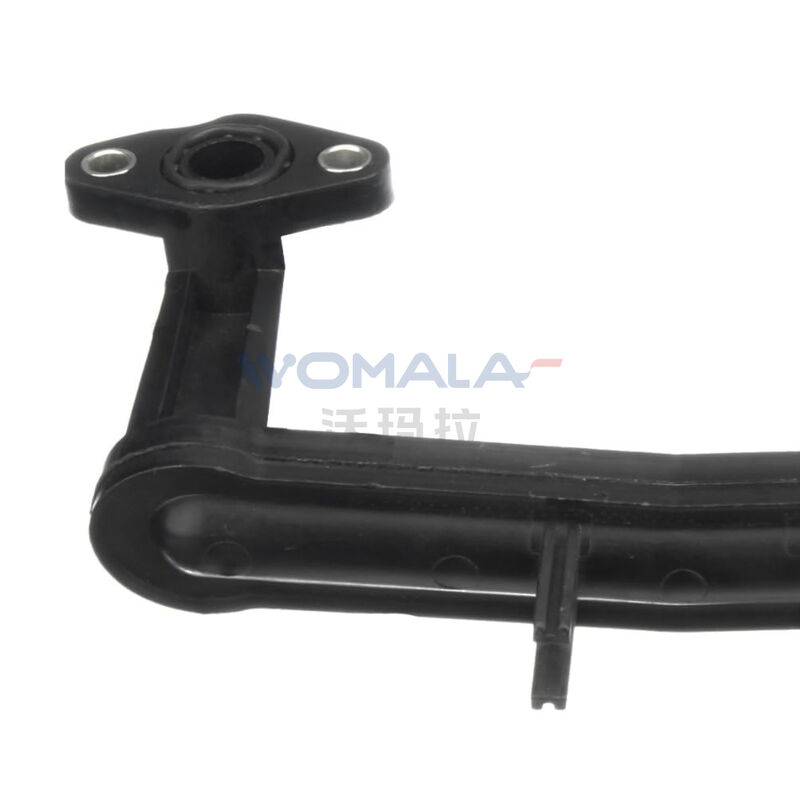

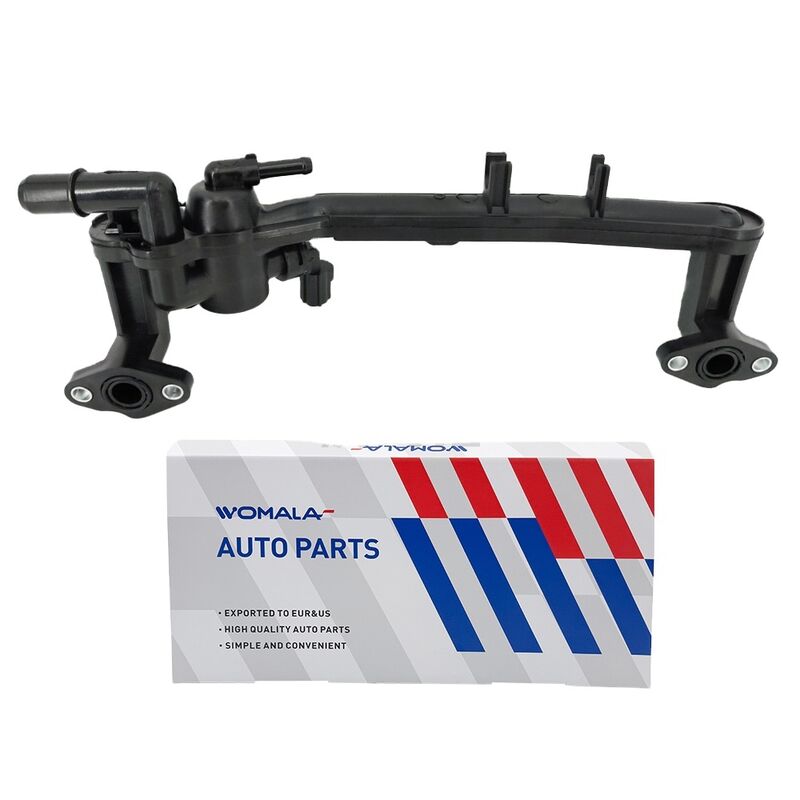

The Heater Manifold Pipe LR109402 is a genuine OE-grade cooling system component engineered for 5.0L V8 petrol engines (AJ133) in select for Land Rover and for Jaguar vehicles. Also known as a rear coolant water heater pipe or coolant outlet flange, this component routes coolant from the engine block to the heater inlet, playing a critical role in cabin heating and engine temperature regulation. LR122709 is the current replacement part, with a supersession path of LR087559 → LR109402 → LR122709.

⚠️ Important: This pipe is specifically for the 5.0L V8 petrol engine — both naturally aspirated and supercharged variants. It is not compatible with diesel or V6 engines.

Key Features

• Rear heater pipe function – routes coolant from engine block to heater inlet

• Includes temperature sensor port – some versions supplied with sensor provision

• OE-grade quality – available as Genuine Land Rover, URO Parts, Dorman, Wahler, Febi Bilstein, and Britpart alternatives

• Upgraded metal version available – replaces failure-prone factory plastic with reinforced construction

• Direct-fit replacement – matches factory routing and connection points

OE Cross-Reference

💡 Supersession Path: LR087559 → LR109402 → LR122709. LR122709 is the current recommended replacement.

Technical Specifications

Land Rover Applications

Jaguar Applications

⚠️ Important: This pipe is confirmed for 5.0L V8 petrol engines in the models listed above. Fitment varies by model year, production date, and VIN range — verify before ordering.

Signs of Failure

• Coolant leaks – visible drips from the heater pipe area, often onto the transmission bell housing

• Low coolant warning – recurring need to top up the reservoir

• Loss of cabin heat – heater blows cold air

• Engine overheating – coolant loss causing temperature issues

• Visible cracks or brittleness – plastic pipe degradation from heat cycling

💡 The factory plastic heater pipe is a known failure point on 5.0L V8 engines — it becomes brittle with age and heat cycling, leading to coolant loss. Upgraded aluminium versions are available as a permanent fix.

Critical – Verify Your VIN Before Ordering

Coolant pipes are VIN-, engine-, and model-year-specific. Provide your VIN – our team confirms exact compatibility before dispatch. We cannot accept returns for misordered parts without VIN verification.

💡 Installation Tip: Professional installation recommended. When replacing the heater pipe, inspect all cooling system hoses and connections for wear. Replace coolant with OEM-specified fluid at the correct mixture ratio after installation. Consider upgrading to the aluminium version for enhanced durability.
