Womala Air Compressor Pump Oe LR088859 for Range Rover L405 Range Rover Sport L494

Product Overview

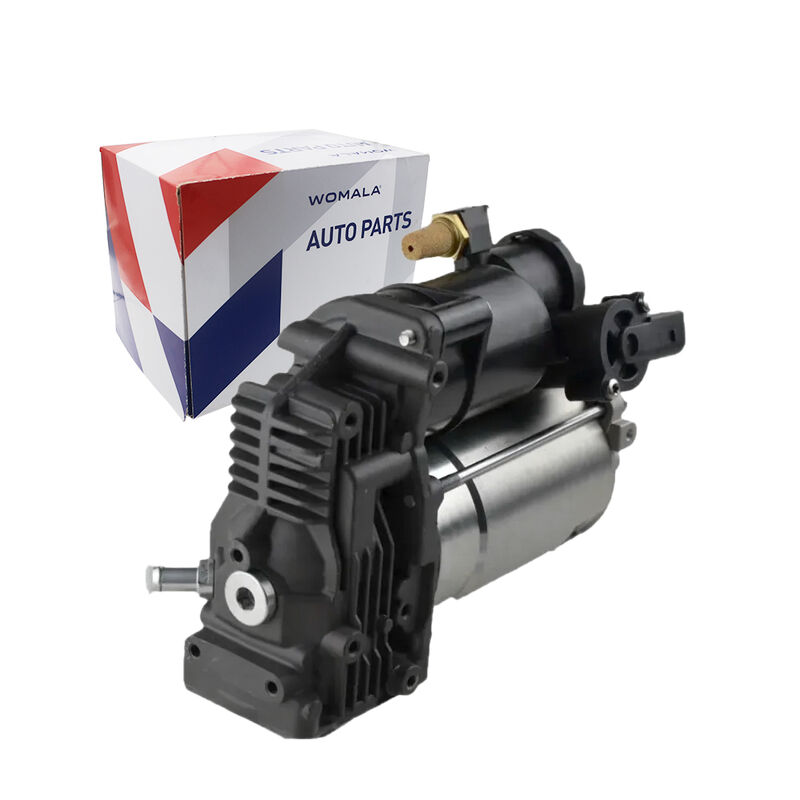

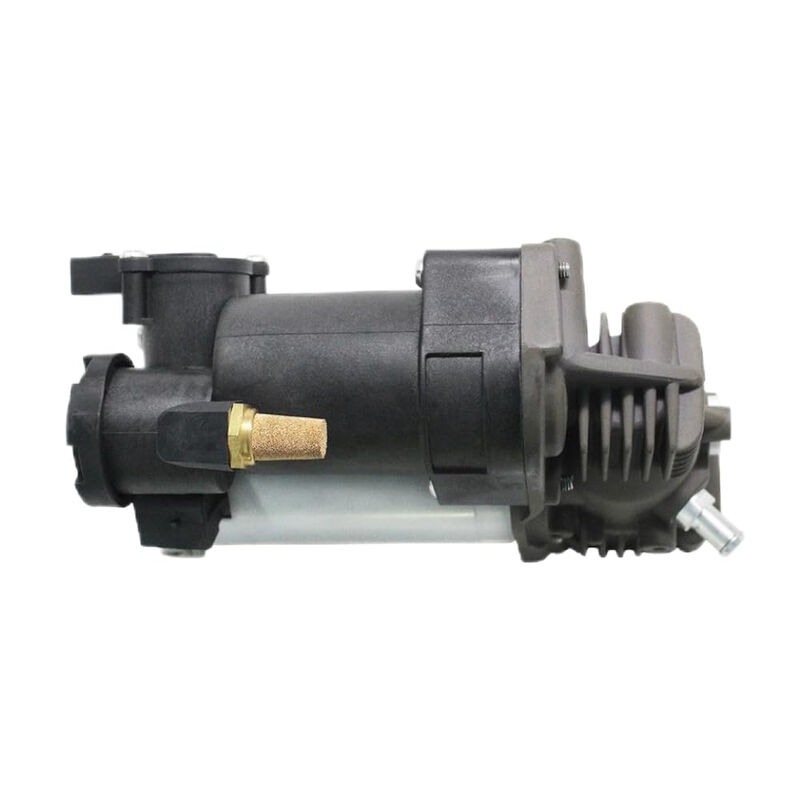

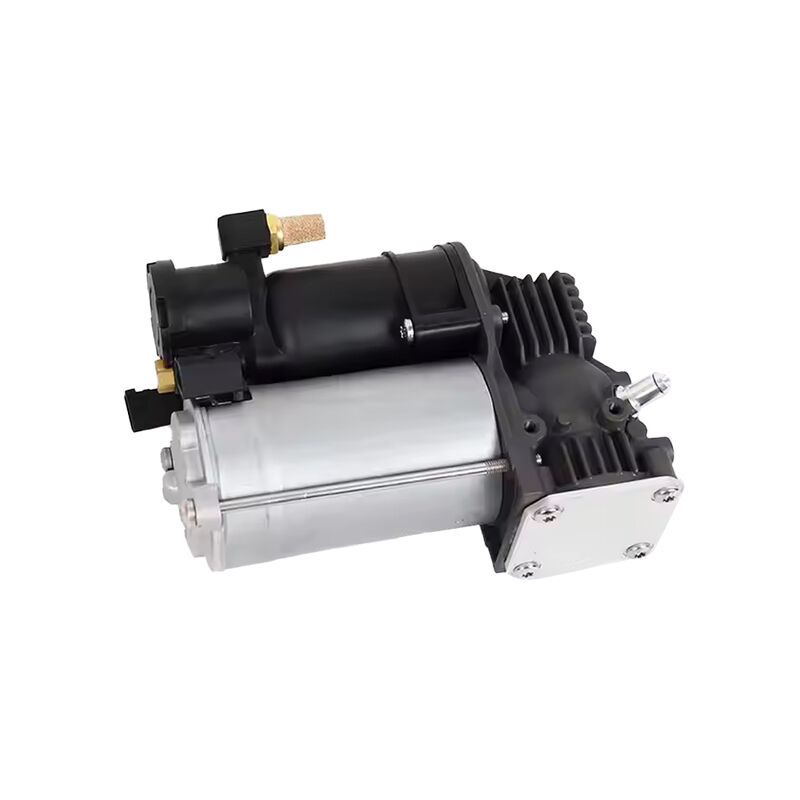

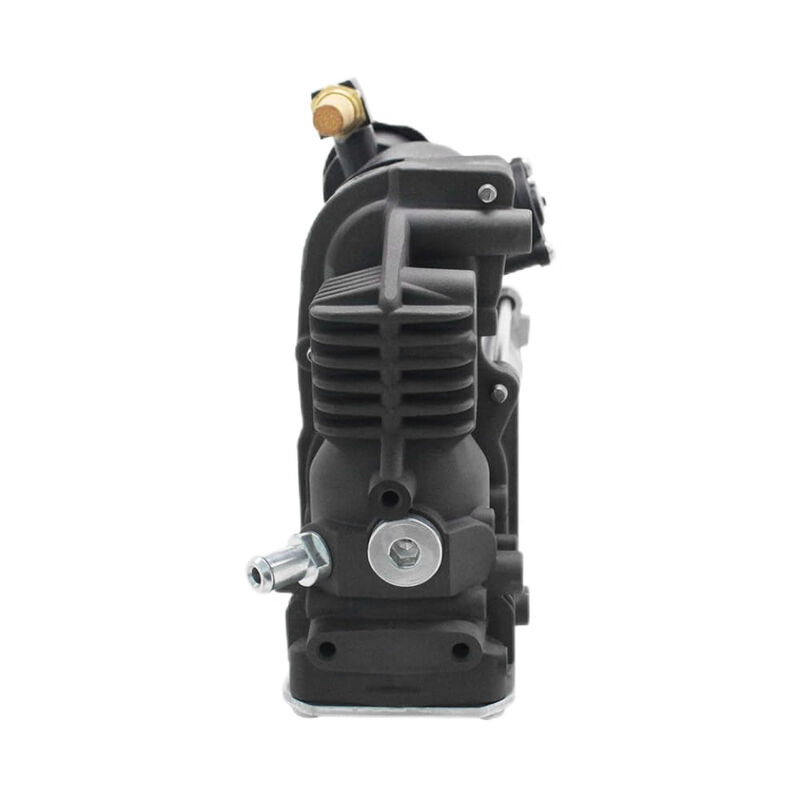

The Air Suspension Compressor LR088859 is a Genuine OE-grade air supply unit engineered for the for Land Rover Range Rover (L405) and Range Rover Sport (L494) models equipped with four-corner air suspension. This AMK-type compressor pressurises the air suspension circuit, delivering compressed air to maintain vehicle ride height, adjust suspension stiffness, and ensure comfort and handling balance.LR108984 is the current replacement part, superseding LR088859 and a long chain of earlier numbers.

⚠️ Important: This is an AMK-type compressor. Always verify whether your vehicle is fitted with an AMK or Hitachi compressor before ordering — the two are not interchangeable without additional parts.

Key Features

• AMK OES replacement – direct replacement for the factory AMK compressor

• Integrated air dryer – maintenance-free, protects the system from moisture

• Thermal overload protection – prevents overheating under extended operation

• Relay must be renewed – a new relay must be fitted when replacing the compressor

• Complete kit available – some versions include compressor, relay, and air filter

OE Cross-Reference

💡 Supersession Note: LR108984 is the current replacement part. All listed numbers refer to the same AMK-type compressor for L405 and L494 applications.

Technical Specifications

Vehicle Fitment

Engine compatibility (verify with VIN):

• 2.0L Turbo Petrol / Diesel

• 3.0L V6 / I6 Petrol & Diesel

• 4.4L V8 Diesel

• 5.0L V8 Petrol (NA & Supercharged)

⚠️ Important: This compressor fits Range Rover L405 (2013–2022) and Range Rover Sport L494 (2014–2022) with four-corner air suspension. VIN cut-off HA999999 applies for certain applications — confirm your VIN before ordering.

Signs of Failure

• Vehicle sagging – one or more corners sit lower due to insufficient air pressure

• Noisy or overworking compressor – runs constantly, loud humming or grinding noises, or fails to shut off

• Complete suspension failure – compressor does not activate, loss of ride height adjustment

• Frequent compressor cycling – system struggles to maintain pressure

💡 Critical Installation Note: Before installing the compressor, ensure there are no air leaks in the air suspension system — including air springs, valve blocks, and air lines. Failure to do so will result in immediate damage to the compressor, which will not be covered by warranty.

Critical – Verify Your VIN Before Ordering

Air suspension compressors are VIN-, model-year-, and system-type-specific (AMK vs. Hitachi). Provide your VIN – our team confirms exact compatibility before dispatch. We cannot accept returns for misordered parts without VIN verification.

💡 Installation Tip: Professional installation recommended. The relay must be renewed when replacing the compressor — failure to do so may void the warranty. It is also recommended to fit an air filter on the compressor intake pipe to extend service life. After installation, the suspension system may require calibration using diagnostic equipment.

Why Choose Us

Contact us for bulk orders or VIN‑checked quotes.

Specifications subject to change; images for reference only.Aftermarket replacement – not affiliated with Jaguar Land Rover.
